1-10 Ton Industrial Grade Cable Lifting Hoist with Explosion Protection
$800.00 1 set
Qingdao Shanghai
L/C T/T
New
CD1/MD1
CE, ISO9001
Nenghua
General manufacturing,Metal production industry,Renewable energy industry
Product Description

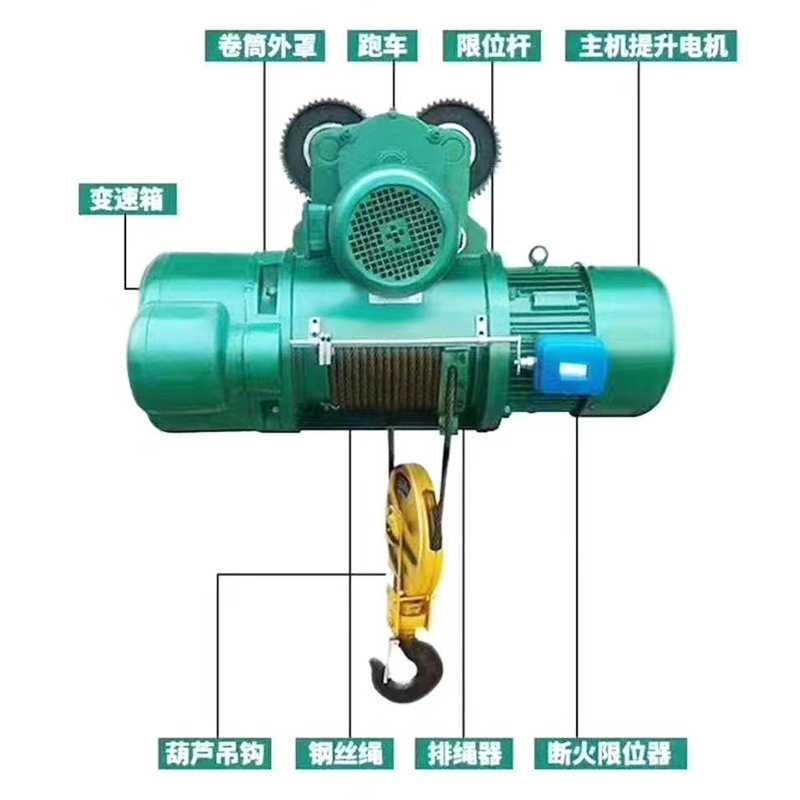

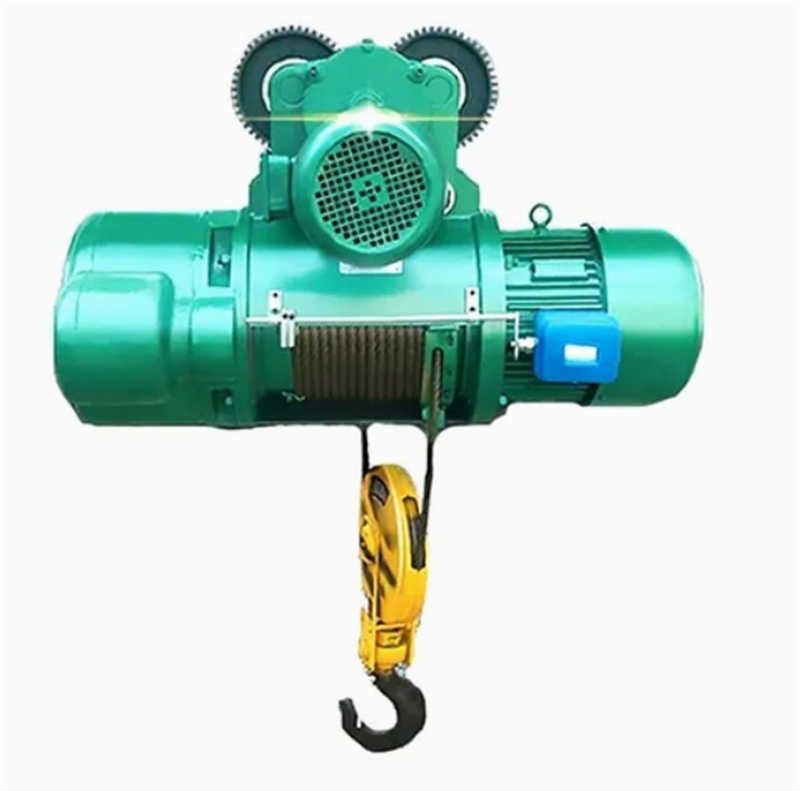

CD1 wire rope electric hoist is a light and small lifting equipment with compact structure, light weight,small size, universal
parts and easy operation.
Reducer: The reducer adopts hard tooth surface transmission design, long life and high mechanical efficiency.
Motor: The motor uses Nanjing special motor. The motor load duration is 25%.
Motor protection grade: IP54.
Insulation class: Class B.
Limit: There are upper and lower two-way safety limit devices.
Push button switch: 36V safety voltage switch, according to customer needs, the hoist can be equipped with a wireless remote control.
Product Description
Specification
Model | CAPACITY | LIFTING HEIGHT | LIFTING SPEED | TRAVELLING SPEED | VOLTAGE | PHASE |
CD1-1 | 1 TON | 6/9/12/18/24M | 8M/MIN | 20M/MIN | 380V | 3 PH |
CD1-2 | 2 TON | 6/9/12/18/24M | 8M/MIN | 20M/MIN | 380V | 3 PH |
CD1-3 | 3 TON | 6/9/12/18/24M | 8M/MIN | 20M/MIN | 380V | 3 PH |
CD1-5 | 5 TON | 6/9/12/18/24M | 8M/MIN | 20M/MIN | 380V | 3 PH |
CD1-10 | 10 TON | 9/12/18/24M | 7M/MIN | 20M/MIN | 380V | 3 PH |
