Product Description

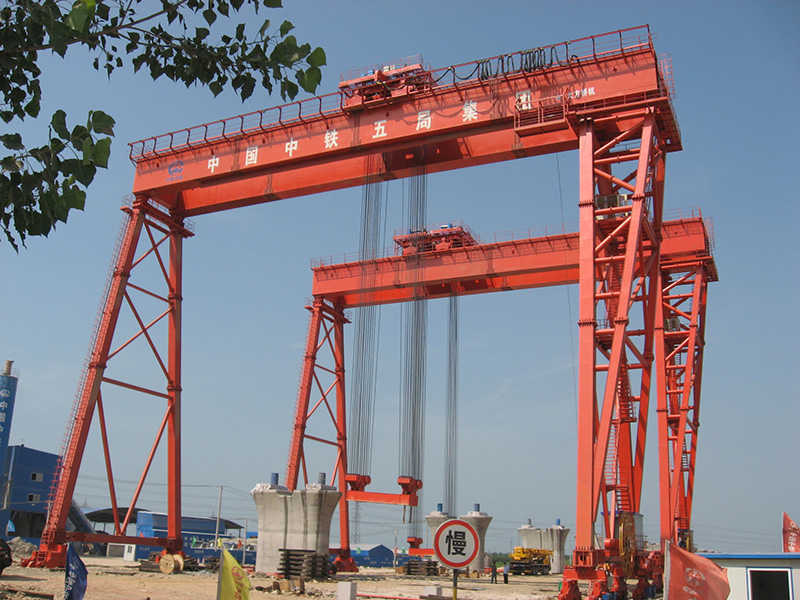

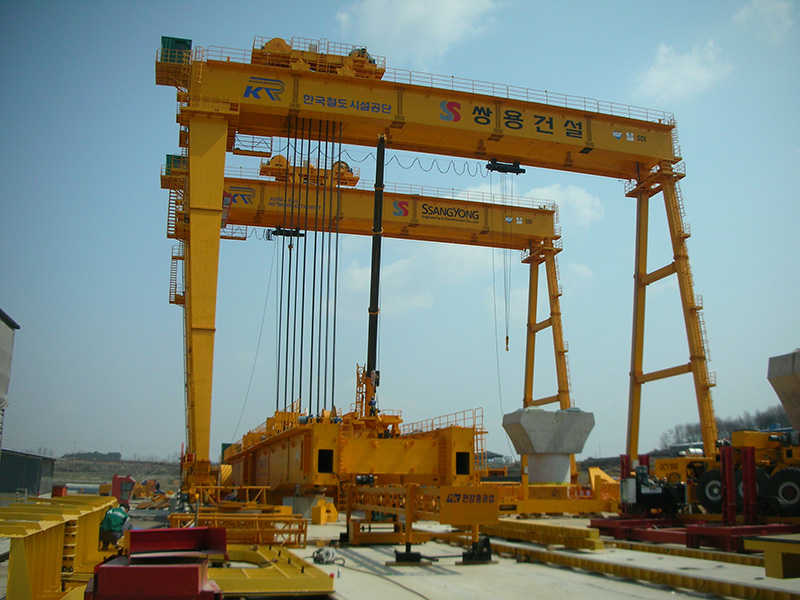

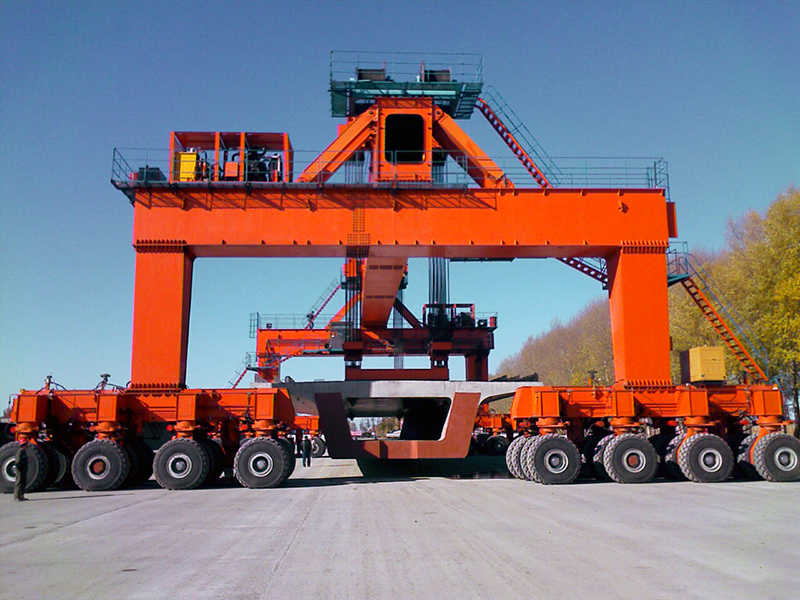

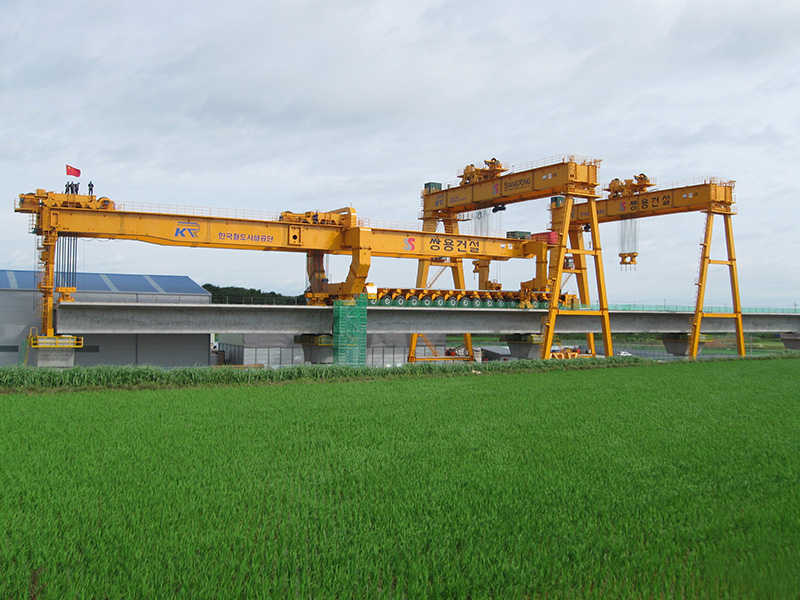

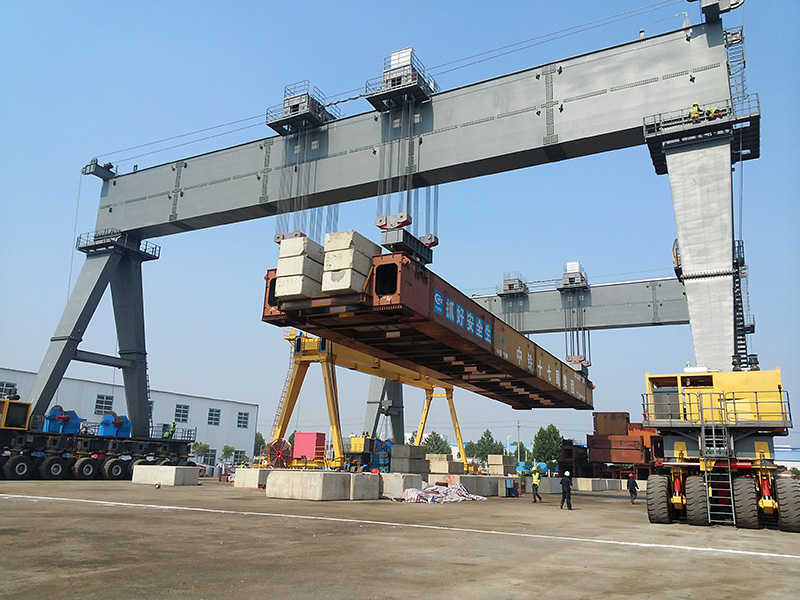

DLT900type Rubber-tyred Gantry Crane is our reliable and effective product used to lift, shitf and load 32m, 24m, and 20m box beams as well as that ofreinforcement framework and integrated inner mold.
It can conduct straight, oblique and transverse running as well as self-slewing. And suit to move on concrete, asphalt pavement. Or graded compactivegraveled road.
Work class: A3
Use Level: M4
Rated lifting capacity: 2 x 450 t
Span: 38 - 45m
Lifting height: 9 - 13m
Wheel pressure of cart: 18-22t
Lifting speed: 0 _ 0.5m/min (heavy load)
0 _ 1.0 m/min (no load)
Running speed of cart: 0 _ 0.5m/min (heavy load)
0 _ 1.0 m/min (no load)
Allowable wind pressure: Operating mode: 250N/ m2
Non-operating mode: 800N/ m2
Operational power supply: 50Hz, 380V
Engine Power: 280Kw
Overall Weight: : 450t -520t
