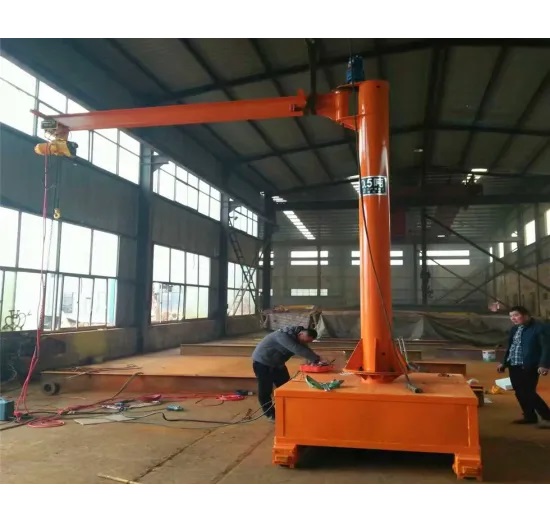

5ton Steel Rails Fly Jib Crane with Design Drawings
$3000.00 1
Qingdao
D/P D/A O/A
Wood Case
New
BZD
GS, CE, ISO9001
SHENG HUA
General manufacturing,Metal production industry,Renewable energy industry,Paper and wood industry,Power Industry
Brief Introduction:
The BZ type crane is a small and medium-speed lifting equipment developed recently .
It has characteristics of unique structure , safe and reliable operation , high , efficiency , energy-saving , effort-saving , and flexibility . It can be operated under three dimensional environment . It is superior in the cases of short distance , concentrated lifting . It is widely used at various sites for various trades .
It can be operated under three-dimensional environment. Compared to other lifting device, it is superior especially in the case of short-distance and concentrated lifting.

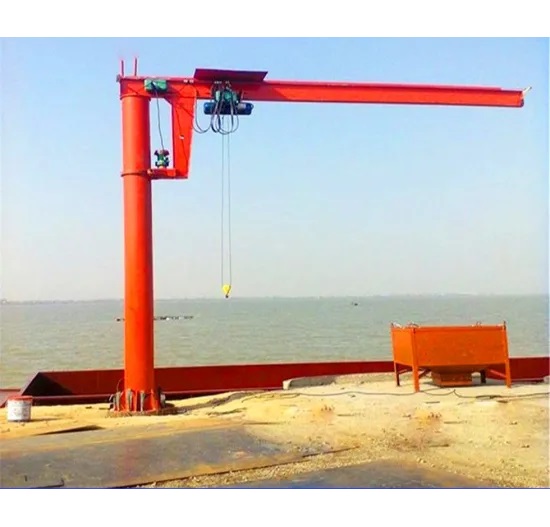

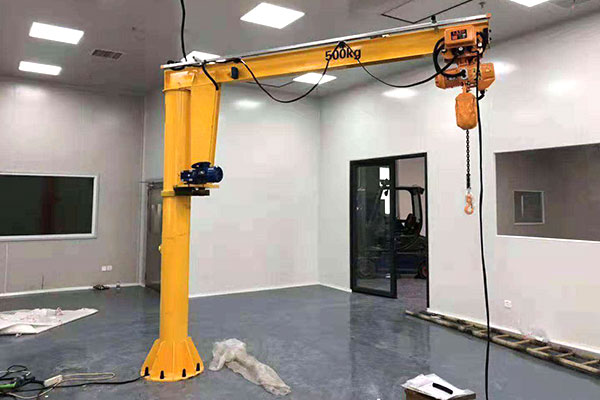

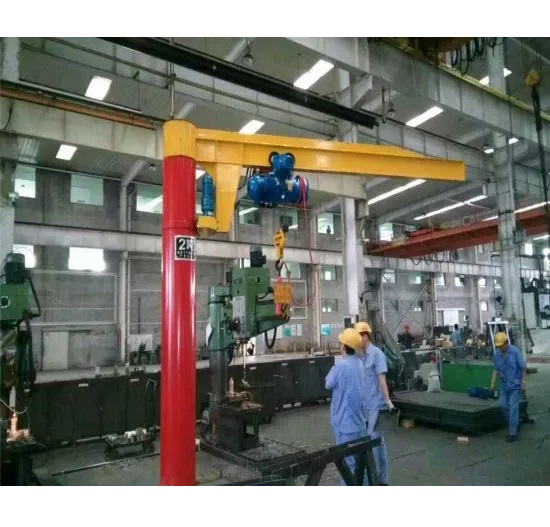

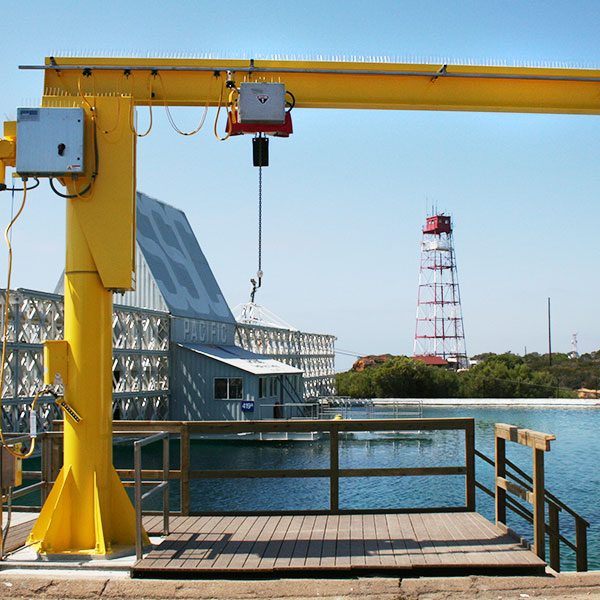

It is widely used in workshop, warehouse, wharf etc.
Technical Parameters:
| Type | BZ0.25 | BZ0.5 | BZ1 | BZ2 | BZ3 | BZ5 | BZ8 | BZ10 | |
| Lift Capacity (t) | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 8 | 10 | |
| Max. Lift Height(m) | 3 | 3 | 3 | 3 | 4 | 4 | 6 | 8 | |
| Slew Angle(0) | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 | |
| Lift Speed (m/min) | Normal | 4;10;8 | 5;10;8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Slow | 1;2.5;0.8 | 1.25;2.5 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | |
| Level Travel Speed (m/min) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | |
| Slewing Speed (r/min) | 0.7 | 0.7 | 0.7 | 0.7 | 0.6 | 0.6 | 0.6 | 0.6 | |
| Lift mechanism | wire rope electric hoist or chain electric hoist | ||||||||
| Power supply | 380-420V/3phase/50hz or customized | ||||||||
| Control mode | Pendent push button control or remote control | ||||||||
| Above parameter just for your reference,jib crane can be customized design Max.20t according to your demands. | |||||||||
