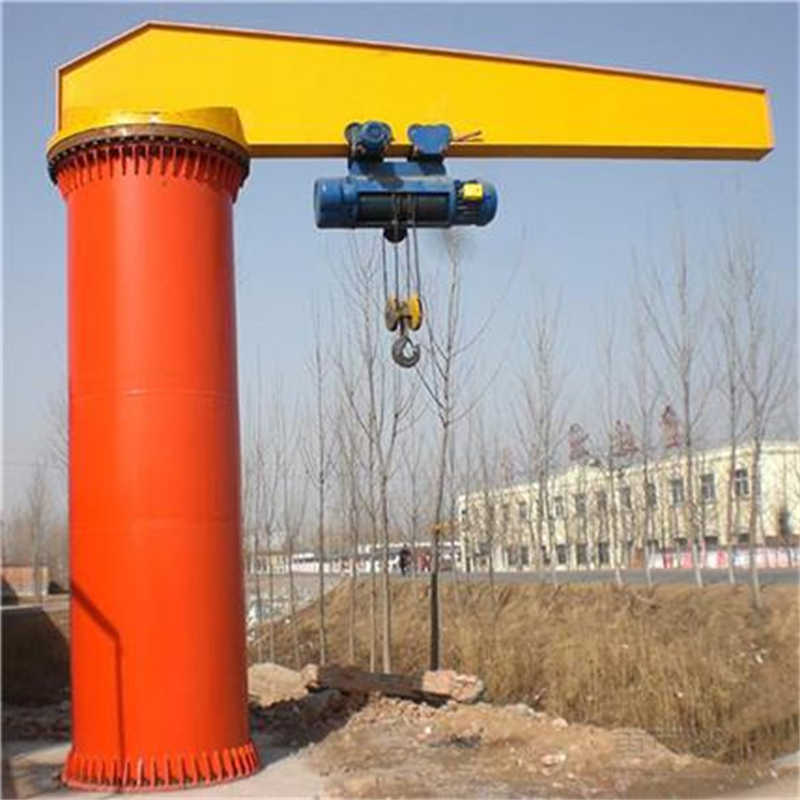

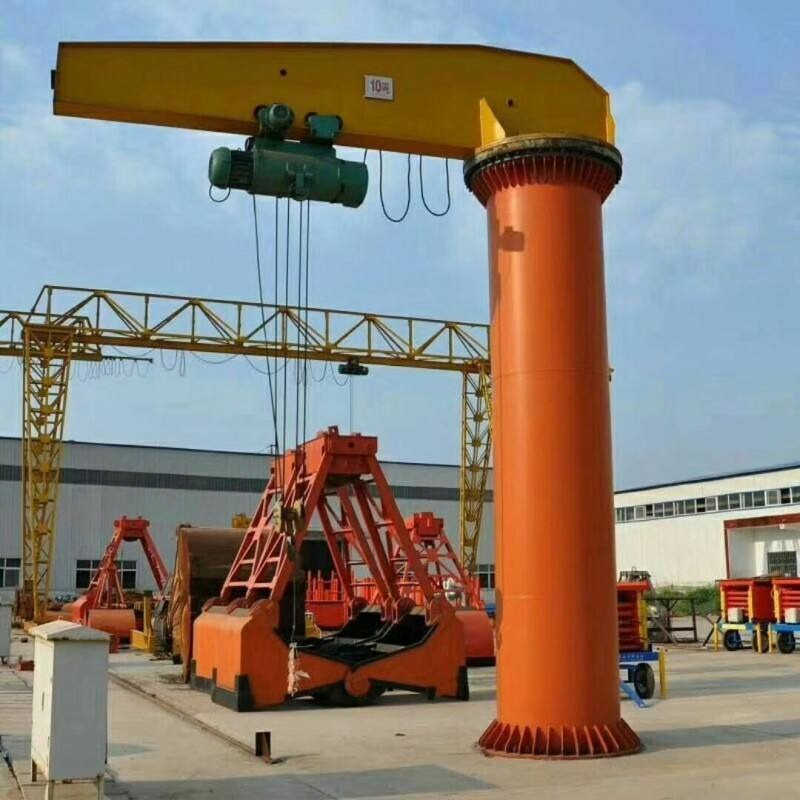

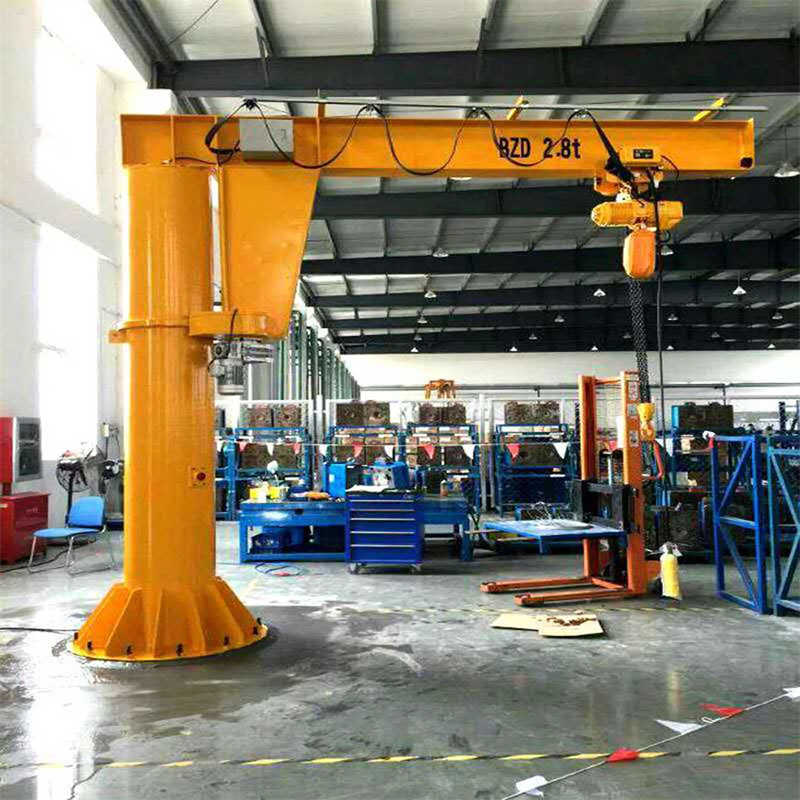

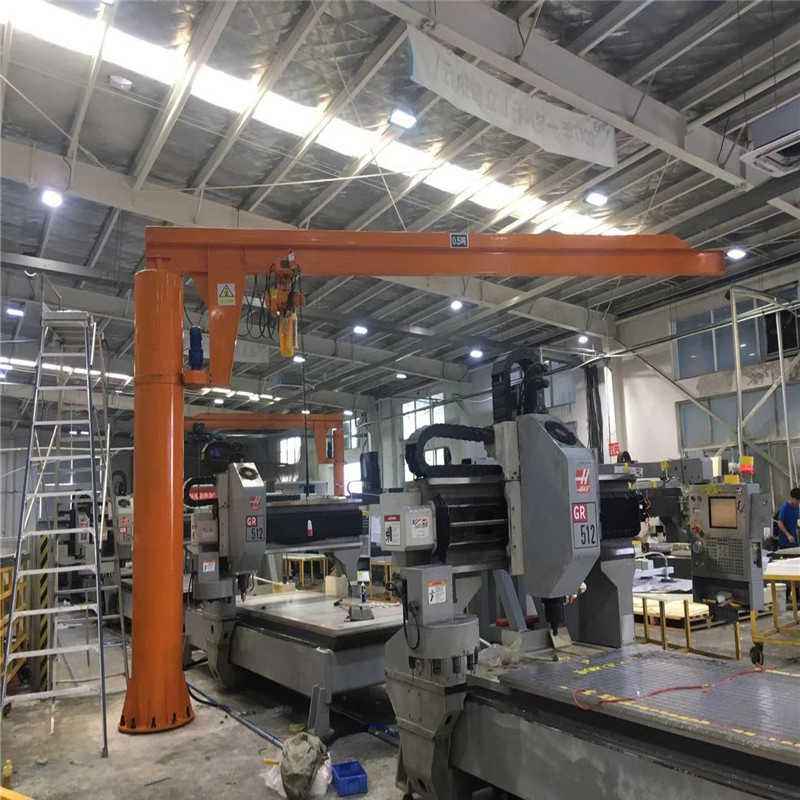

Fixed Column Jib Crane - 1 to 5 Ton Capacity for Standalone Workstations

Mechanism :
1. box-type shaped by wielding;
2. High quality carbon steel Q235B and Q345B;
3. the girder connected by high strength screws;
4. Welding seams are tested by X-ray and ultrasound;
5. Forged wheels;
6. Compact structure, small volume and light weight trolley;
7. Lifting mechanism is open type winch trolley;
8. Compact reducer motor drive, step less control, hardened gears and safety disc brake;
9. Good operation performance, step less speed regulating and running smoothly;
10. Main girders Shot blasting sa2.5 after welding to release internal stresses;
11. Painting high quality epoxy zinc-rich primer, and the thickness of oil film is 140μm;







Pls tell me the following information and i can send you detail drawing and quotation.
1.Lifting Capacity(T): __ ?( The rated capacity)

2. Lifting Height(m):__ ? (Height from hook center to  the floor)

3. Arm length(m): __ ? (Useful hook arm length)

4. Lifting Speed(m/min): __ ? ( Single, Dual)

5. Slewing speed(m/min):__ ?( Standard or as your demand)

6 .Industrial Voltage: __ ? ( like :380V, 50Hz, 3ph )
