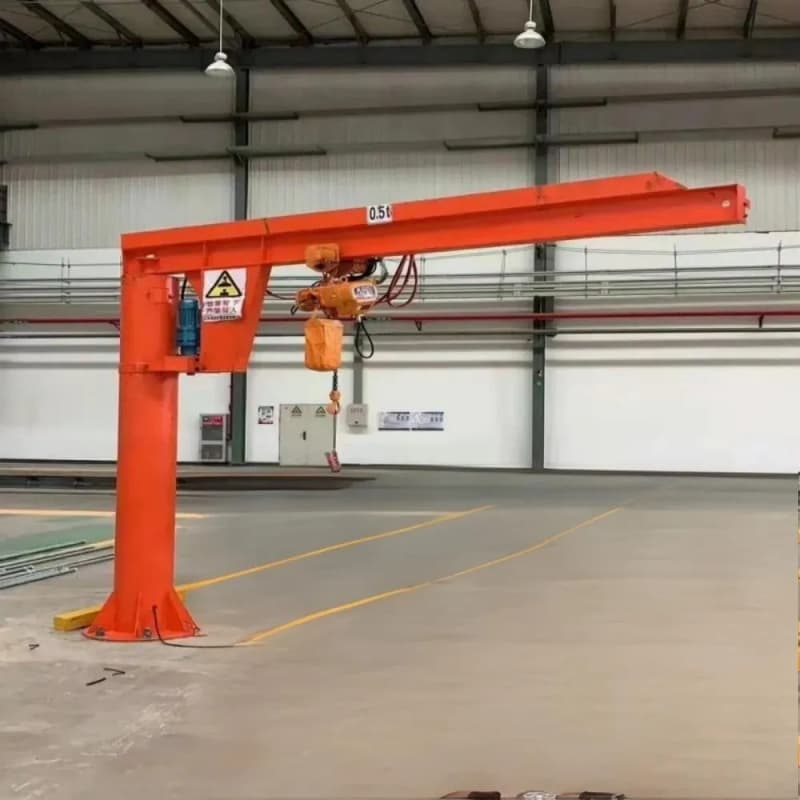

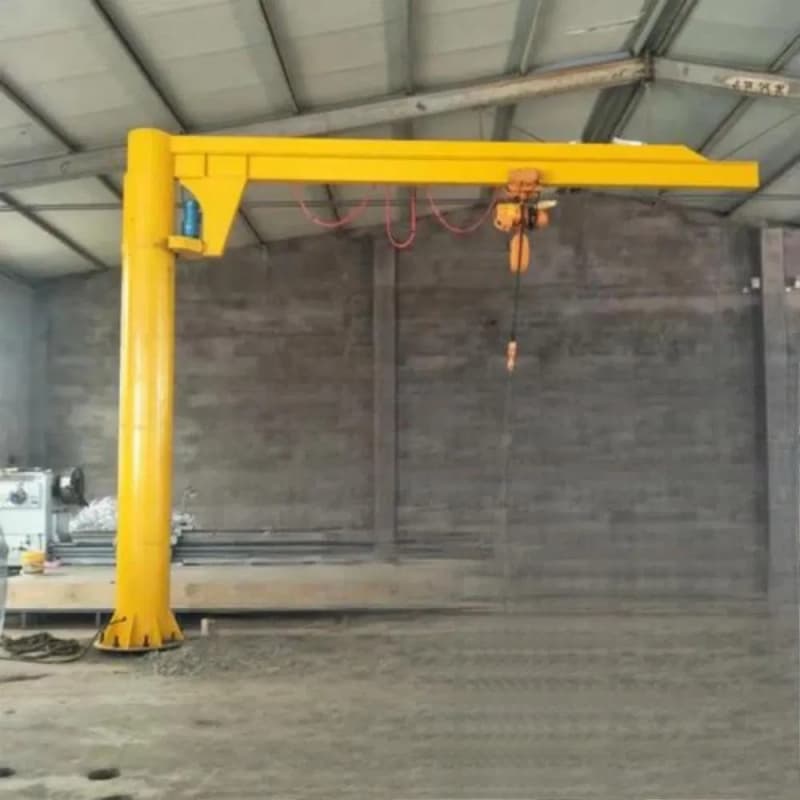

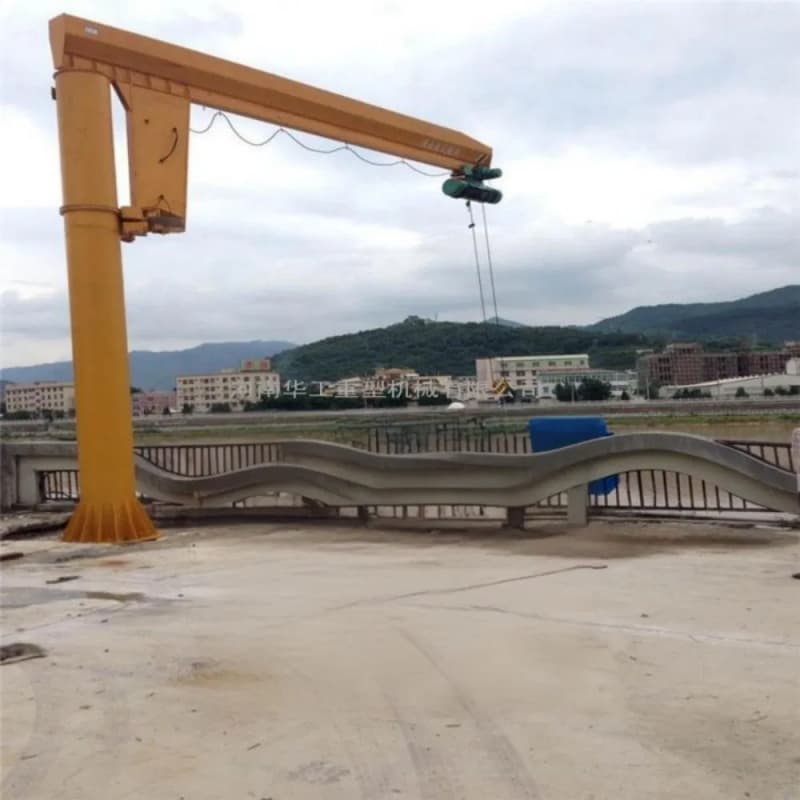

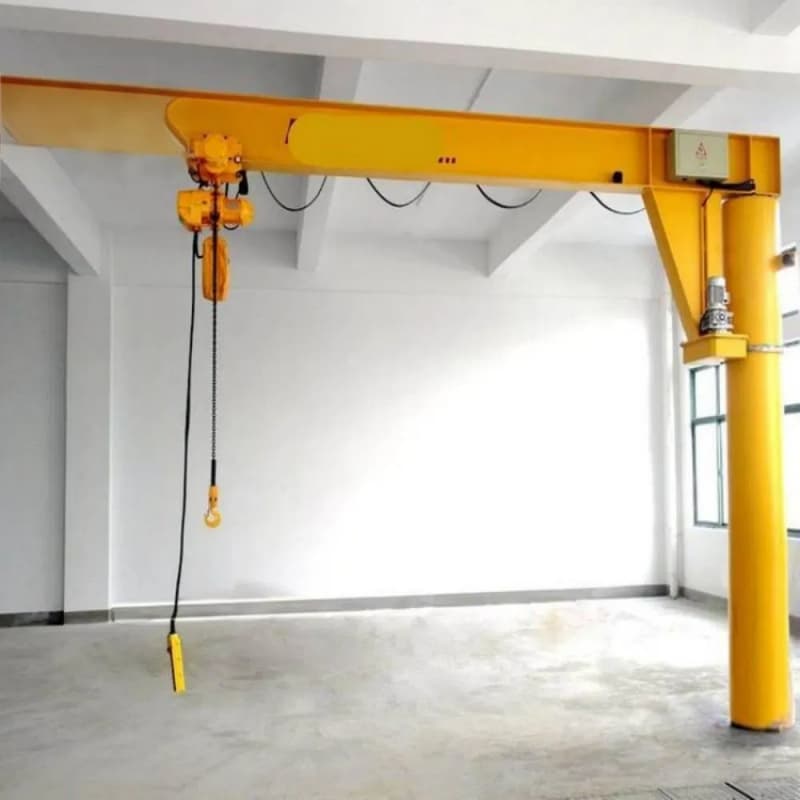

180° 270° 360° Adjustable Rotation Angle Jib Crane
$5000.00 1 set
Qingdao Shanghai
L/C T/T
New
BZD
CE, ISO9001:2000
Oushili
General manufacturing
BZD electric full-slewing cantilever crane is a kind of crane used with PK type chain hoist or CD1 type MD1 electric hoist. The crane is composed of column, swivel arm rotary drive and electric hoist. The lower end of the column is fixed by anchor bolts. On the concrete foundation, the cantilever rotation is driven by the cycloidal pinwheel speed reducer, and the electric hoist runs straight on the cantilevered I-beam and lifts the heavy object.
The crane has simple structure, small occupied space, large working range, convenient operation and flexible rotation. It is suitable for fixed places such as docks, warehouses and workshops. The crane is equipped with safety protection devices and limit protection devices. It is safe and feasible and is ideal for lifting. mechanical
| Lifting capacity | t | 3 | 5 | ||||
| h Lifting Height | m | 4.5 | 5 | 4.5 | 5 | ||
| R Valid radius | 5 | 5.5 | 5 | 5.5 | |||
| Working system | A3(intermediate) | ||||||
| Hoisting | slow speed | m/min | 0.8 | ||||
| speed | normal speed | 8 | |||||
| (r/min)Slewing speed | 0.5~1 | ||||||
| Circulate speed | 20 | ||||||
| Slewing angle | 180°,270°,360° | ||||||
| H Max.height | m | 6254 | 6754 | 6522 | 7022 | ||
| L Max.lenghth | 6320 | 6820 | 5940 | 6440 | |||
| Total weight | Kg | 3577 | 3742 | 4224 | 4430 | ||
