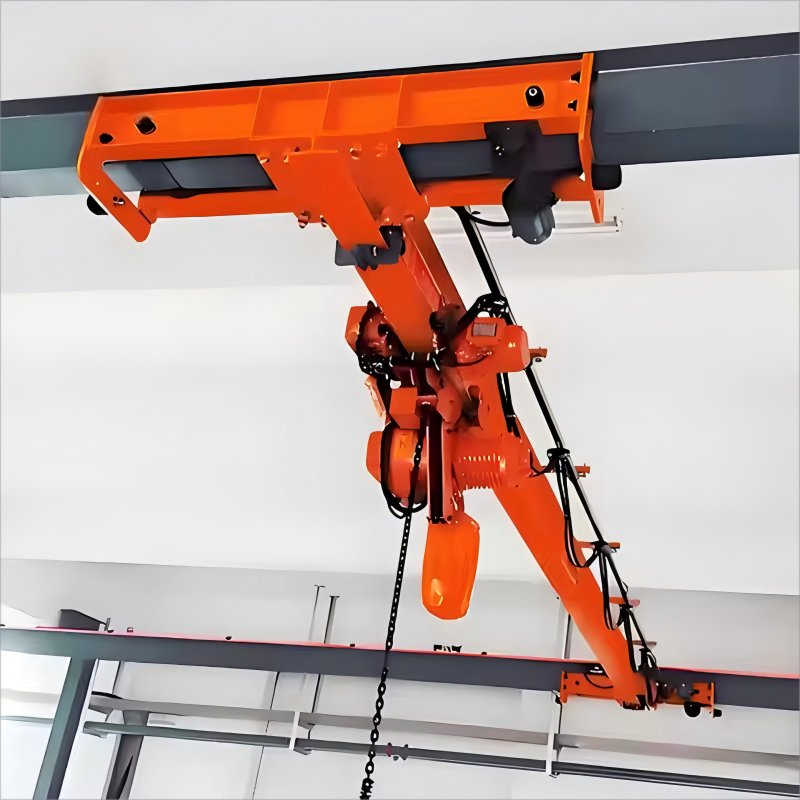

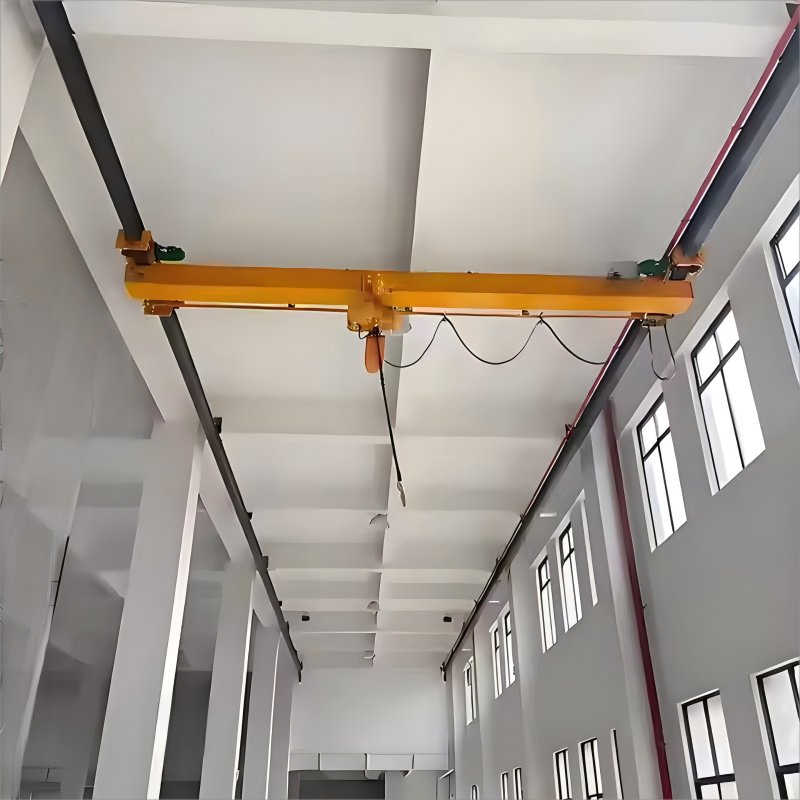

Single Girder Suspension Bridge Crane – 5T Wire Rope Hoist – Export to USA

Product Description

In the field of modern industrial production and logistics warehousing, efficient and safe material handling equipment is the key to improving work efficiency. The single beam suspension bridge crane with wire rope hoist has become an indispensable lifting equipment in scenes such as workshops, warehouses, and assembly lines due to its compact structural design, strong load capacity and flexible operating performance.

Structural design and core configuration
  1. Main beam structure: The main beam is welded and formed with high-quality steel. The surface is sprayed with anti-corrosion paint after shot blasting and rust removal. It has the characteristics of high rigidity and light weight. The span range is usually 3-15 meters, and the rated load covers 1-20 tons, which can meet the needs of different scenes.
  2. Suspended end beam: The end beam is connected to the main beam by high-strength bolts. The wheel set is made of forged steel and equipped with a double wheel flange design. It is matched with seamless tracks to ensure that the trolley runs smoothly along the track, and the lateral offset is ≤5mm.

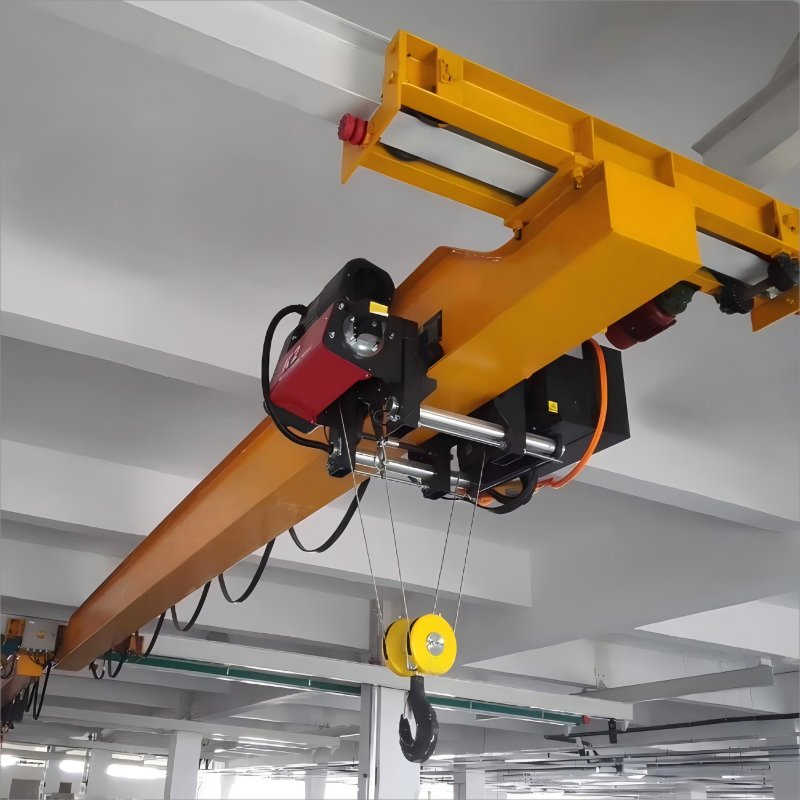

  3. Wire rope electric hoist: As the core lifting mechanism, it is equipped with dual-speed or variable frequency motor drive as standard, supports 0.5-20m/min stepless speed regulation, and the lifting height can reach 6-30 meters; the wire rope is made of anti-rotation galvanized material, the drum is designed with multi-layer winding, and equipped with overload protection, upper and lower limit and emergency brake devices to ensure the safety of heavy-duty operations.
  4. Intelligent control system: Equipped with wireless remote control or cab control mode, integrated variable frequency speed regulation, fault self-detection and operation status monitoring functions, supports inching, linkage and precise positioning operations, and adapts to the needs of automated production lines.

Typical application scenarios
  1. Mechanical manufacturing workshop: used for loading and unloading of machine tools, assembly of large workpieces and mold transfer, precise positioning capabilities to ensure the consistency of production rhythm.
  2. Warehousing and logistics center: with lifting equipment or electromagnetic suction cups, efficient stacking and loading and unloading of heavy goods such as steel, plates, containers, etc.
  3. Automobile assembly line: the track system suspended on the top of the production line realizes the aerial transportation and precise docking of car bodies, engines and other parts.
  4. Energy equipment installation: hoisting pipelines, valves and large equipment in power plants and petrochemical plants to meet high load requirements under complex working conditions.

Safety and certification guarantee
  1. Electrical protection: phase loss, overcurrent, short circuit protection and emergency power-off button;
  2. Mechanical protection: anti-rope-off device, buffer and end stop;
  3. Intelligent monitoring: load sensor displays weight information in real time, automatically locks and alarms when overloaded.

KUNFEGN CRANES's bridge cranes are ideal for material handling in many small and medium-sized workshops, warehousing logistics and special environments with their flexible and compact suspension structure, high-life wire rope hoists and comprehensive intelligent safety configurations. Welcome to inquire about customized solutions to protect your production efficiency and safety!
