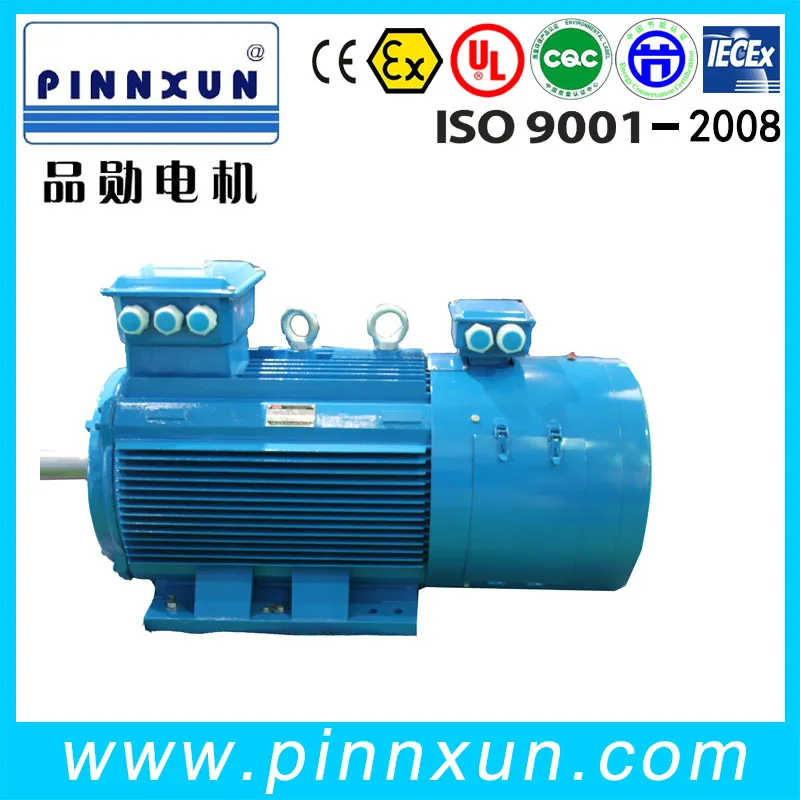

Ys Yvf Ypt Electirc Variable Frequency Motor

Specifications
pump motor electric

certificate:IS09001-2008
power:0.12kw-355kw
pole:2 4 6 8 10
speed:3600-600


 Product: Y Series(IP54)asynchronous induction motor

Feature and usage:
Y series three phase electric motor is designed in conformity with the relevant requirements of IEC and DIN42673 standards. It's totally enclosed and fan-cooling three-phase squirrel cage induction motors, having outstanding performance, such as high efficiency, energy-saving, high starting torque, low noise, little vibration, reliable operation and easy maintenance, etc.
Y series motors are widely used in many places, where there doesn't exist combustible, explosive or corrosive gas, and without any special requirements, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery and food machines, etc.


Motor Performance
frame sizes: 63-315 2) Rated power: 0.12-200kw

Rated voltage: 220/380v,380/660v
Frequency: 50Hz, 60Hz
Protection class: IP44 ,IP54
Insulation class: B,F
Materials: Cast iron, aluminum (frame 63-160)
EFF: EFF3, EFF2, EFF1
Poles: 2, 4, 6, 8
Cooling method: IC411 (total-enclosed fan-cooled type)
Mounting types: IMB3 ,IMB5,IMB35,IMB34,IMB14
Operating mode: S1
Connection: "Y" type for 3kW and downwards, "D"type for 4kW and upwards
Ambient temperature: -15C < θ < 40C

The altitude should be lower than 1, 000m
Relative humidity: Not higher than 90%
Special motors can be designed according to

Inner packing:
frame 63-112: Foam boxes
frame 132-315: Wooden boxes

Certification To Guarantee We are Good In Quality


 Ordering Informations

1.Please indicate the motor type,rated output,rated voltage,rated frequency,synchronous speed,Explosion proof Mark,mounting type,rotation direction(view from the shaft extension side)Use of the environment(indoor or outside)If the user havn't point out the rotation and environment,normailly we think is CW roration and used indoor.

2.when user have special requirments,For example:Dispose the stator,bearing explosion proof and bearing temperature sensors,space heater,Plateau use,specical frequency,mounting size change,special output,the user must ,order can be confirm after signing the technical agreement with engneering department .

3.The catalogue is only fpr reference,and there may be variations.

4.This range of motor can also be made into Variable-Frequency motors,the range of frequency of which is 0-100HZ,the output and overall dimensions should be confirm separately.

Strong Package Ensure Motor safe enough for Ship or Truck Transportation
