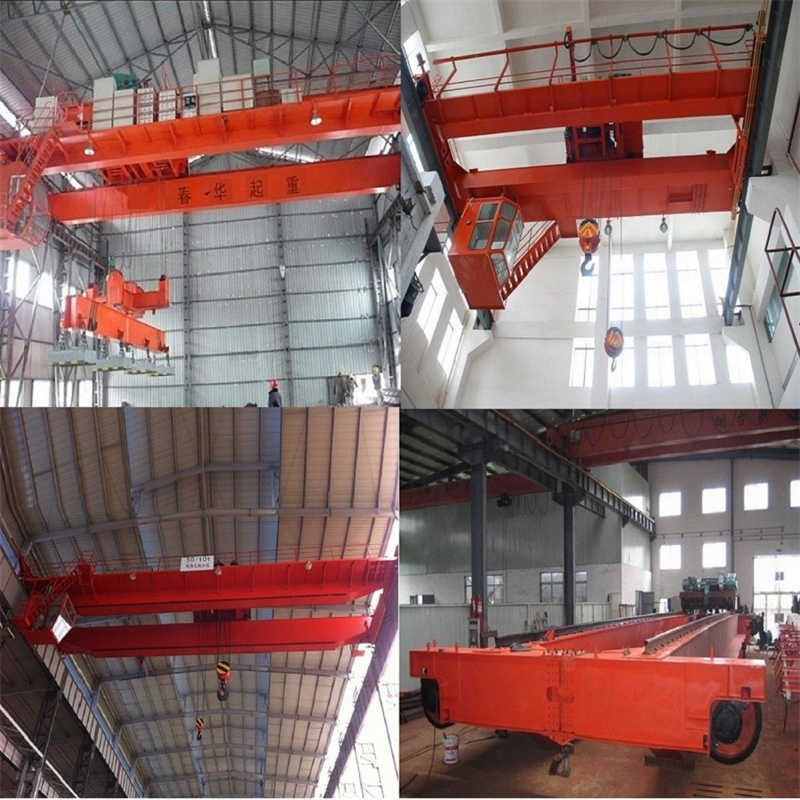

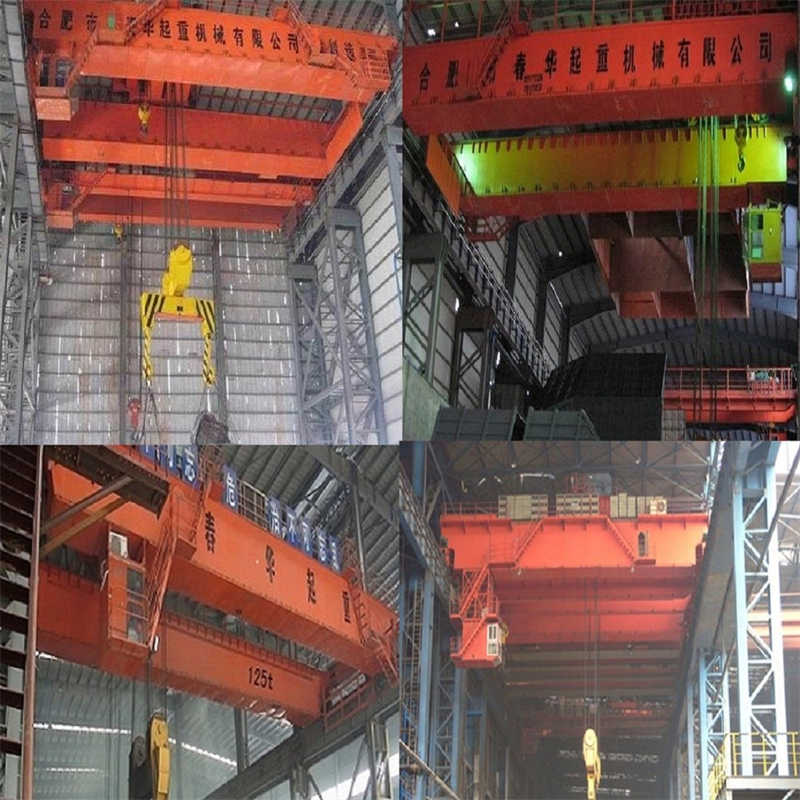

100 Ton Continuous Casting Crane for South Korean Steel Production

Type QDY metallurgical casting crane

Brief description:

Special metallurgy metallurgical special bridge crane bridge crane in the process of iron and steel production may take part in the process of the specific operation, the basic structure similar to ordinary bridge crane, but also on lifting the car is equipped with special working mechanism or device. The working characteristics of this kind of crane is used frequently, conditions, job level is higher. There are mainly five types.

Hot metal ladle crane: used for lifting into the mixer, the molten steel into concast steel furnace and lifting equipment or ingot mould etc. Main car lifting bucket, to flip bucket and so on auxiliary work, vice car in order to enlarge the using range of vice hook and better service for steelmaking process, main, secondary hook arrangement in have their own independent principal and vice car the car running mechanism, and respectively along their orbits. The structure of commonly used four beam four rail and four beam six tracks.

4) environmental conditions:

1, the crane for three-phase ac power supply, the rated frequency 50 hz, rated voltage 380 v.

2, working environment temperature for - 10-60 degrees;

3, at + 40 degrees temperature relative humidity is not more than 50;

4, such as more than the above requirements, according to user needs according to the terms of the contract execution order.

5) the order information

Or the customer ordering and at the same time, the machine must be the basic parameters (rated lifting weight, lifting height, span, etc.) to describe clear, in order to provide satisfactory condition requirements and working conditions of the product.
