High Quality Half Gantry Crane | 5T/15T/20T Options | Production Line Efficiency
$6400.00 1 set
Qingdao Shanghai
L/C T/T
New
MH
CE, ISO9001
Pullman
General manufacturing,Metal production industry,Renewable energy industry
Product Description

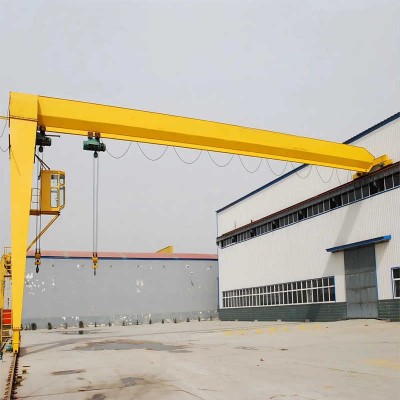

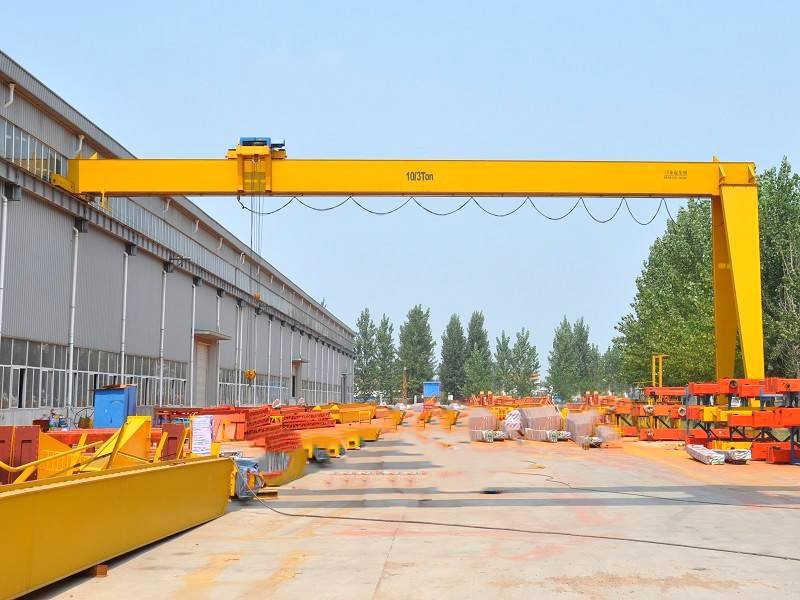

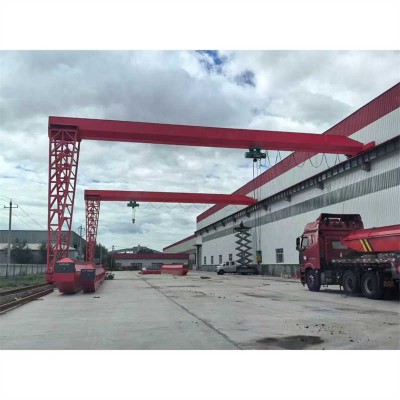

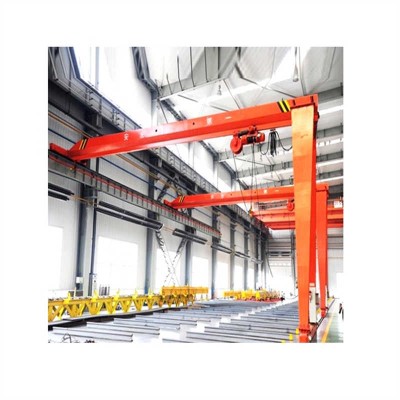

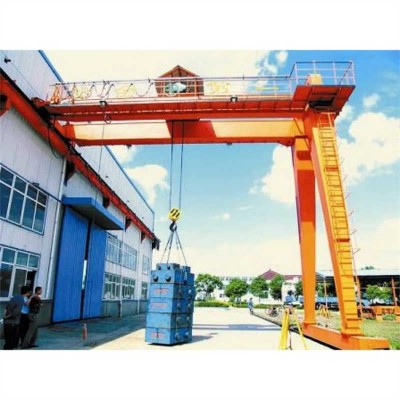

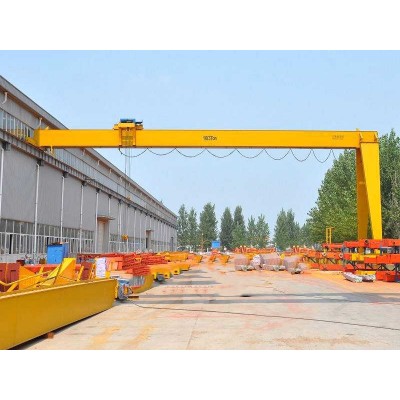

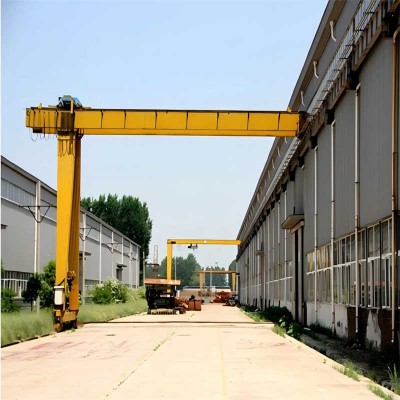

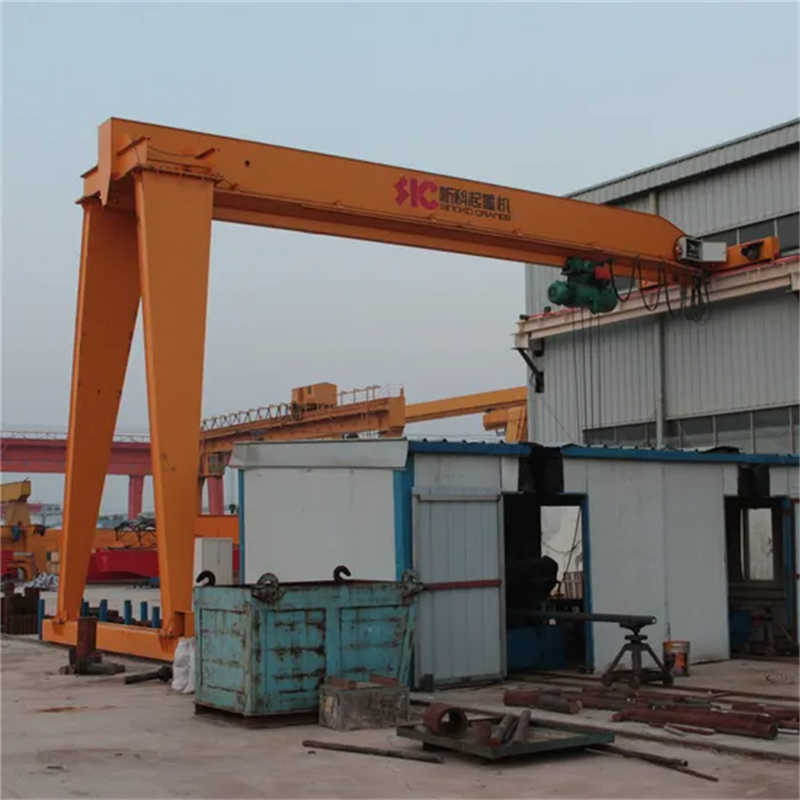

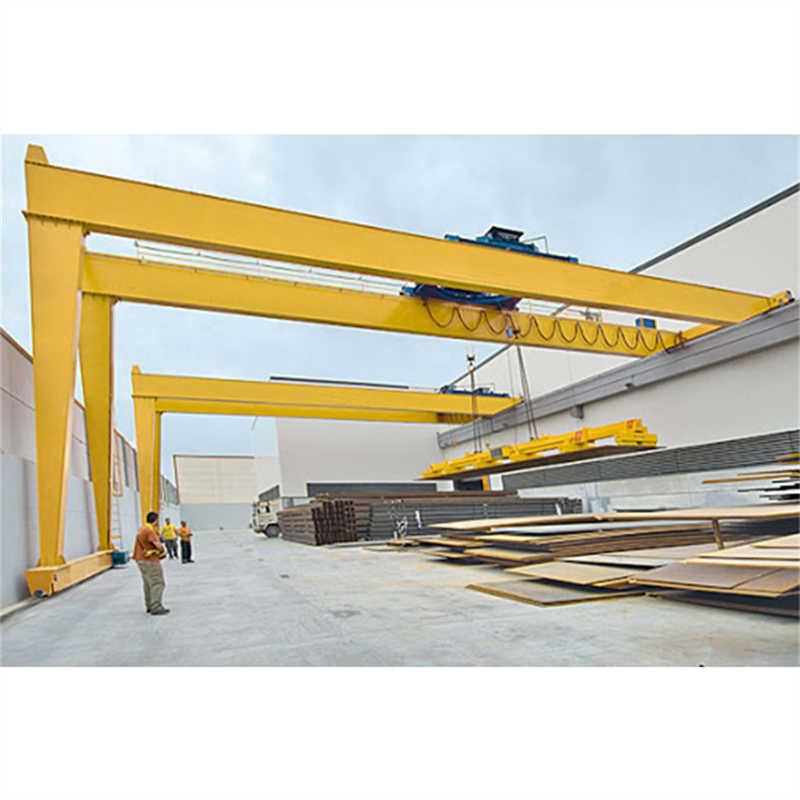

Semi-gantry crane is composed of lifting mechanism, trolley running mechanism and bridge structure, basically same as bridge crane.
Due to the large span, the crane operating mechanism mostly adopts the drive mode respectively, in order to prevent the crane to produce skew operation and increase the resistance, and even the accident, in order to prevent sliding or tipping over under the action of strong winds, equipped with wind gauge and crane rail interlock with the operating mechanism.
Semi-gantry crane is generally electric hoist, so the rated lifting weight is usually under 16 tons.
Feature
Main Feature:
1. Trackless driven device/hand push type
2. Adjustable lifting height
3. Remote control
A frame Mobile Workshop Gantry Crane is widely used for the workshop, warehouse and outdoor etc., It is used for loading and unloading between fixed span and it can handle many kinds of materials, such as steel structure, precast concrete, glass, plastic, etc.
Technical Data
Type | Rated load(t) | Adjustable Height(m) | Span(m) | Beam Height(mm) | Motion Type | Height Range Instruction |
PT2-1-0.5 | 0.5 | 2.6-3.8 | 3-9 | 140 | Hand push type and electric controlled universal castor with brake device | According to the actual use requirements to increase the lifting height and height of the body |
PT2-1-1 | 1 | 2.6-3.8 | 3-9 | 160 | ||
PT2-1-2 | 2 | 2.6-3.8 | 3-9 | 160 | ||
PT2-1-3 | 3 | 2.6-3.8 | 3-9 | 200 | ||
PT2-1-5 | 5 | 2.6-3.8 | 3-9 | 250 |
Company Information
Packaging & Shipping
More Product
FAQ
If you want to order this crane, Pls tell me the details as follows:
1. The Max. lifting capacity? (Ton)
2. The span of crane?
3.The Max. lifting height of hook? (or total height of crane)
4. What type meterial will you to lift?
5. The power source standard?(380V, 50Hz, 3phase or others)
