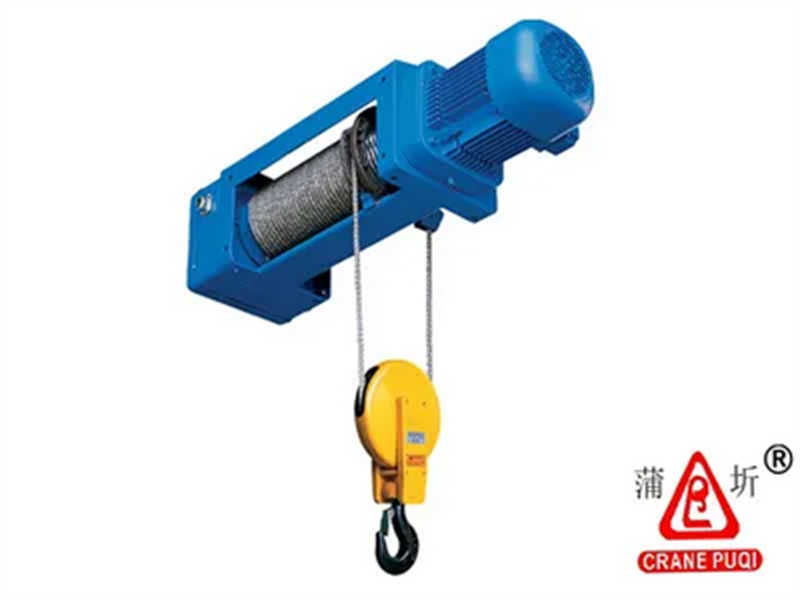

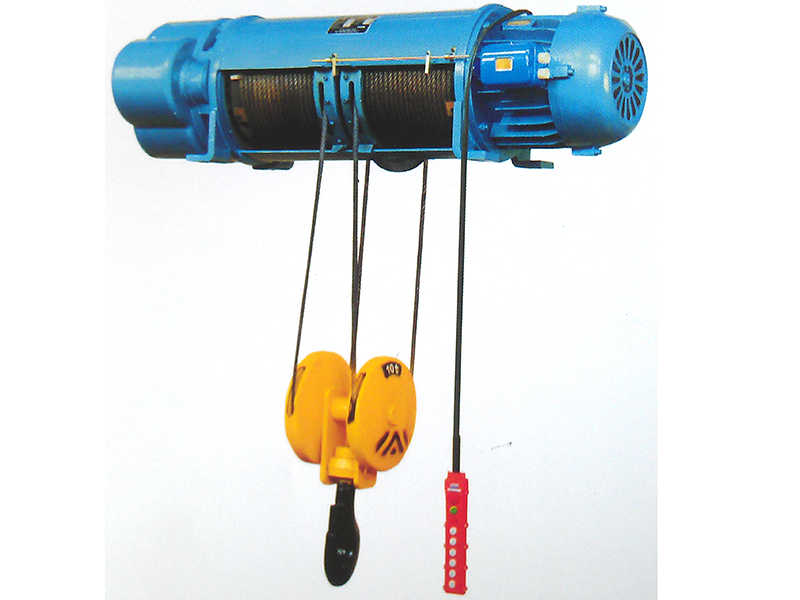

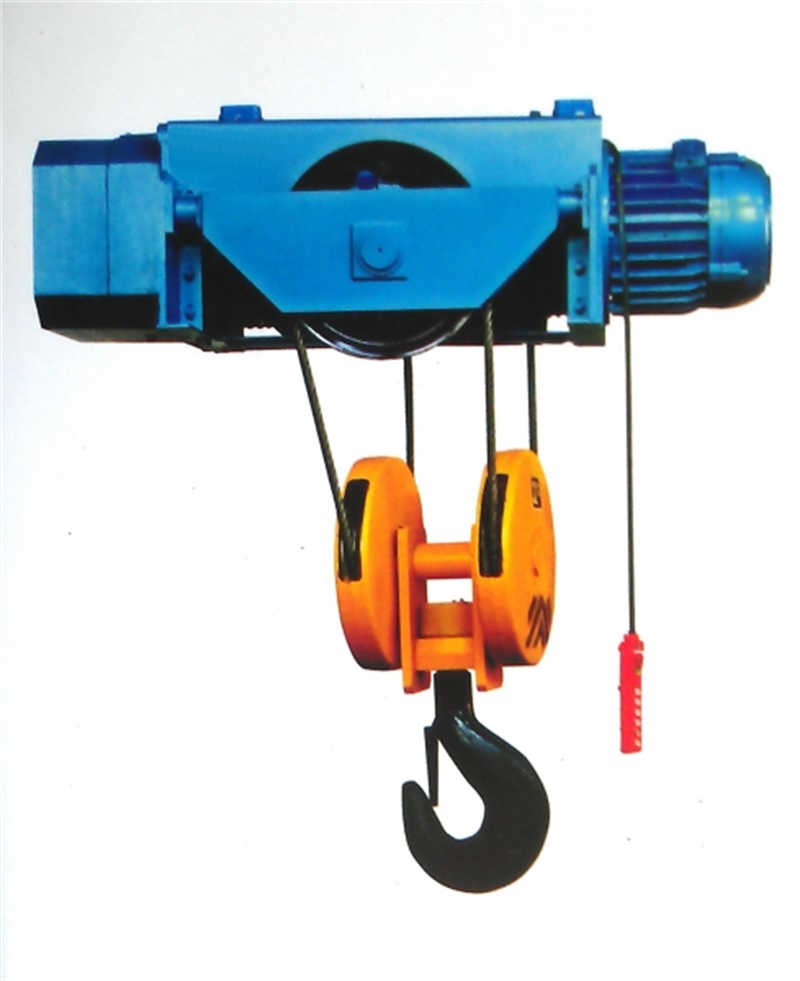

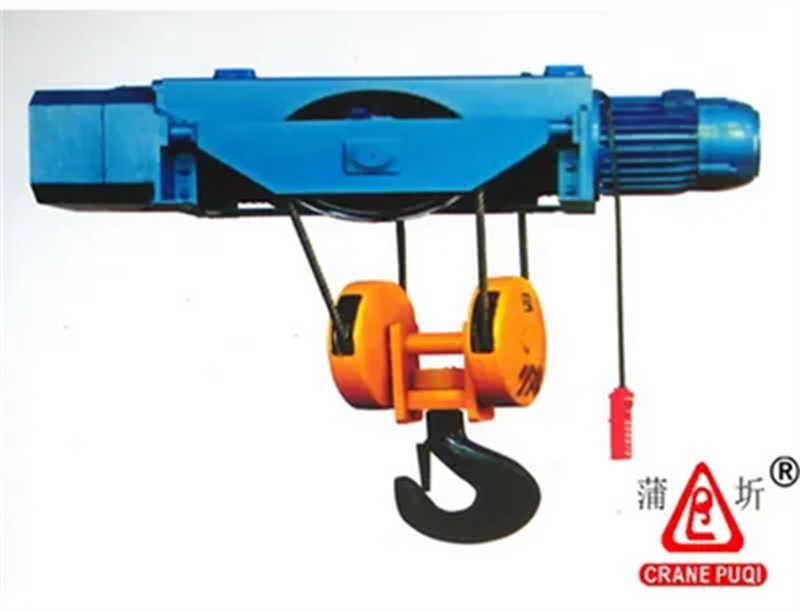

Industrial Grade Wire Rope Hoist - High Speed & Durable Construction

Product Description

This series electric hoist is designed and built to be a nation-standardized light lifting equipment with two models CD1 and MD1, its rated work classification is M3. The CD1 type has only one lifting speed, the MD1 has two instead. Both CD1 and MD1 hoist features compact body, small size, light weight, and modular convertible parts. Proving to be durable, easy for operation, installation and maintenance, these wire rope models are ideal use for 3 phase, light moderate duty service applications.
Model CD1/MD1 options include deck/base mount or lug suspended hoists, top-running or under-slung trolley / hoist configurations. The traveling configurations hoists usually can be installed separately on suspension I-steel runway (straight or curve) or box beam, aswell be incorporated into lifting system such as sing/double girder crane, cantilever crane, and gantry crane, and so on.
As a kind of general lifting equipment, model CD1/MD1 electric is equipped with Upper/Lower limit protector to ensure safe operation. It is widely used in material handling and cargo transloading in factory, mine field, railway paving site, goods station and warehouse. When working in low-speed mode, the MD1 model hoist runs more smooth and accurately and fully meets accurate operation requirements in precision assembly, mold spotting.

 (Work conditions):
