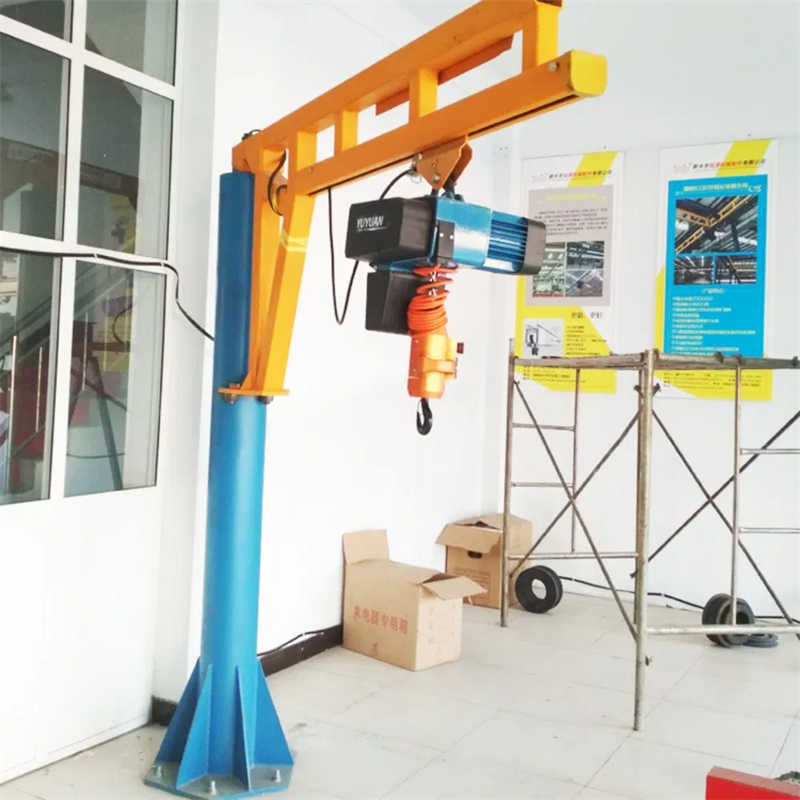

3 Ton 360° Slewing Jib Crane – High-Quality Lift Equipment for Factories
$3000.00 1 set
Qingdao Shanghai
L/C T/T
New
BZ
CE, ISO9001
Qicheng
General manufacturing,Metal production industry
Product Description

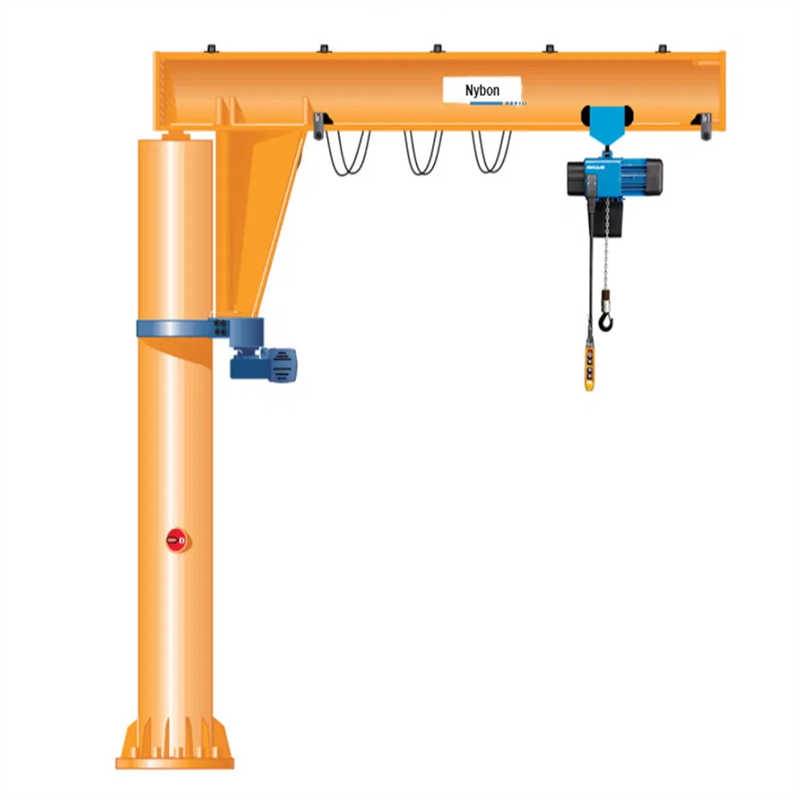

Structural Features of a Jib Crane
Jib Arm (Boom): The horizontal arm that supports the hoist and load. It can rotate to provide a wide range of movement.
Pillar/Column: In floor-mounted models, the vertical pillar supports the jib arm and ensures stability.
Wall Mounting Bracket: In wall-mounted models, the bracket secures the jib arm to a structural wall or support beam.
Rotation Mechanism: Allows the jib arm to rotate, typically between 180° and 360°, depending on the model.
Hoist System: Includes a chain or wire rope hoist for lifting and lowering loads.
End Stopper: Prevents the hoist from traveling beyond the safe operational limit.
base Plate (For Floor Mounted Models): A steel plate bolted to the ground for stability.
Swivel Bearings: Enables smooth rotation of the jib arm.
Electric or Manual Control: Can be operated via remote control, push button, or manual pull chain.
Load Capacity Range: Typically varies from 0.5 tons to 10 tons, depending on design and application.

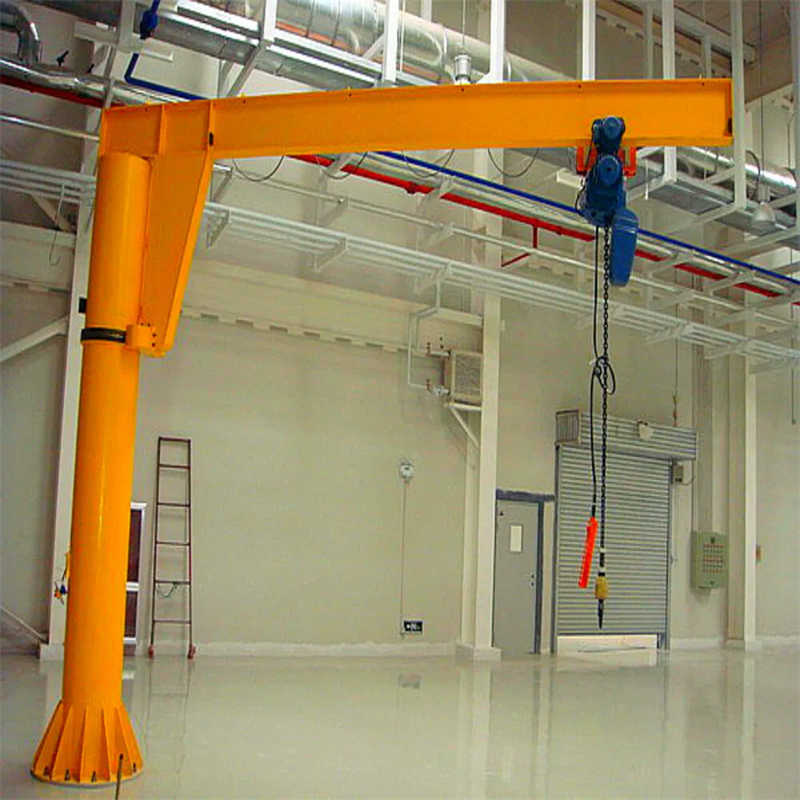

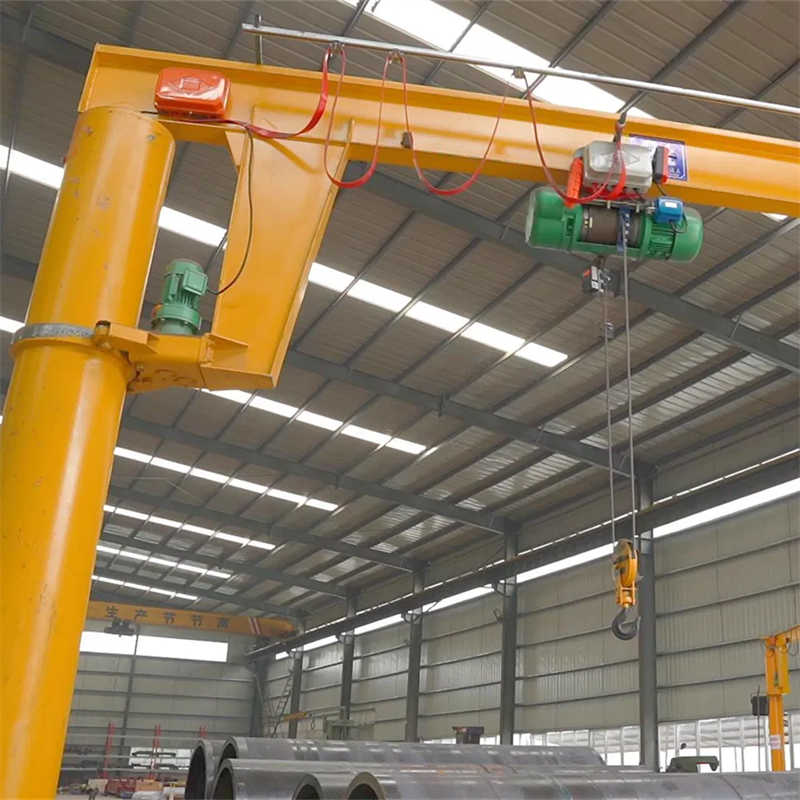

Features of a Floor Mounted Jib Crane
1.Freestanding Design: Can be installed anywhere without requiring a wall or ceiling support.
2.360-Degree Rotation: Allows full-range material handling.
3.Heavy-Duty Construction: Designed for high load capacities.
4.Bolted Bolted or Embedded base: Ensures stability and durability.
5.Manual or Electric Hoist Compatible: Can work with different hoisting systems.
6.Customizable Height & Arm Length: Designed to fit specific operational needs.
Features and of a Wall Mounted Jib Crane
1.Compact Wall-Attached Design: Saves floor space while providing lifting support.
2.180- to 200-Degree Rotation: Covers a large working area along walls.
3.Easy Installation: Mounts directly onto a wall or building column.
4.Durable Steel Structure: Ensures longevity and load-bearing capacity.
5.Hoist Compatibility: Works with manual and electric hoists.
6.Minimal Maintenance: Simple design reduces wear and tear.
Type | BZ0.25 | BZ0.5 | BZ1 | BZ2 | BZ3 | BZ5 | BZ8 | BZ10 | |
Lift Capacity(t) | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 8 | 10 | |
Max. Lift Height(m) | 3 | 3 | 3 | 3 | 4 | 4 | 6 | 8 | |
Slew Angle(0) | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 | |
Lift Speed(m/min) | Normal | 4;10;8 | 5;10;8 | 8 | 8 | 8 | 8 | 8 | 8 |
Slow | 1;2.5;0.8 | 1.25;2.5 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | |
Level Travel Speed(m/min) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | |
Slewing Speed(r/min) | 0.7 | 0.7 | 0.7 | 0.7 | 0.6 | 0.6 | 0.6 | 0.6 | |
Lift mechanism | wire rope electric hoist or chain electric hoist | ||||||||
Power supply | 380-420V/3phase/50hz or customized | ||||||||
Control mode | Pendent push button control or remote control | ||||||||
Above parameter just for your reference,jib crane can be customized design Max.20t according to youi demands. | |||||||||
