20ft/40ft Container Spreader Electric & Hydraulic Powered with Remote Control
$60000.00 1 set
Qingdao Shanghai
L/C T/T
New
CLS-001
CE, ISO9001
Quaydots
General manufacturing,Container handling
20FT Electric hydraulic telescopic container spreader
Hydraulic telescopic spreader is specially designed for quayside container bridge crane and rail gantry cranes.It is suitable to both ISO 20F and 40F containers and its lifting capacity is 40T.Container spreader is driven by hydraulic system.Its automatic working provides high efficiency,especially for large container loading and unloading yard.
Parameters
| Spreader is for operation with ISO Standard 20',40', 45',53' containers | Control voltage | AC 220V(Optional) | |
| Rated lifting load | 41t | Total power | ≤8kw |
| Allowable load eccentricity | ±10% | Protection class | IP 55 |
| Load of lifting lugs at four corner | 10t*4 | Operating pressure of the system | 100 bar |
| Dead weight(spreader) | 14.5t | Ambient temperature | -20ºC~+45ºC |
| Expansion time(20' to 40') | ~30s | Twistlock mode | ISO floating twistlock,driven by an oil cylinder |
| Twistlock rotation 90° | ~1s | Telescopic mode | The telescopic system is driven by means of a hydraulic motor and reduction gearbox connnected to an endless chain |
| Flippers | 5~7s | Flippers device | Knock-down flippers |
| Gravity point adjustment(±1200mm) | ~25s | Rotatory mode | The rotatory motion are drived by hydraulic motor |
| Rotation(±220°) | ~35s | Application | QC,RMG,RTG,Portal crane,Jib crane |
| Power voltage/Frequency | AC 380V (3P/50HZ) | ||

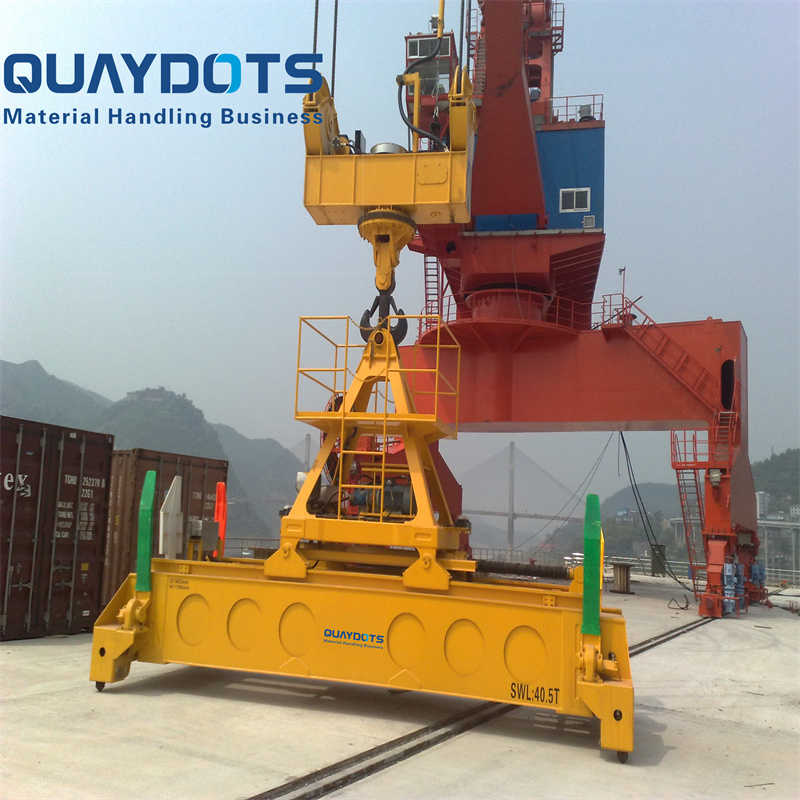

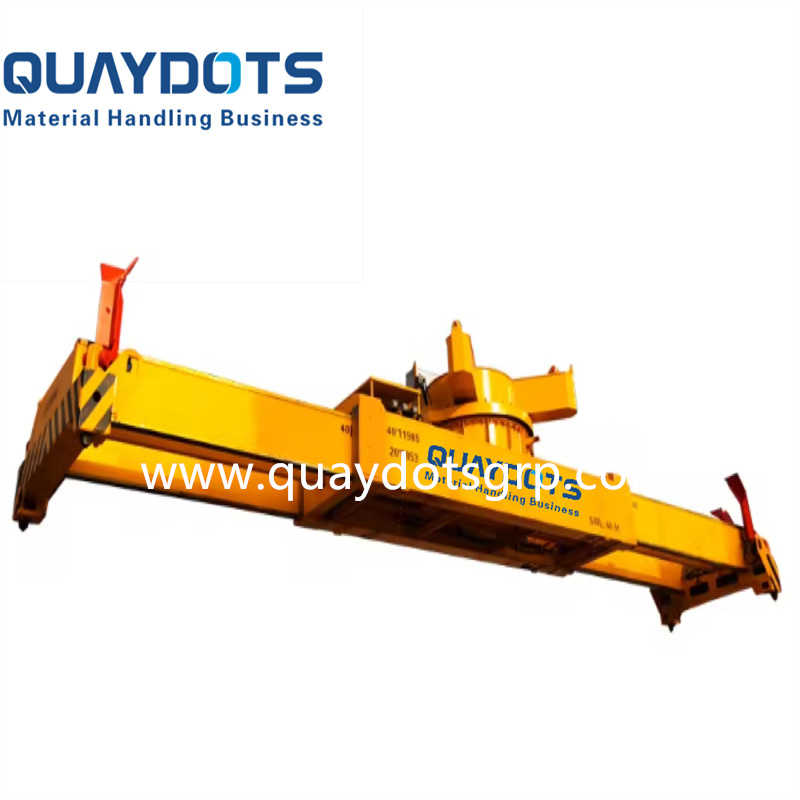

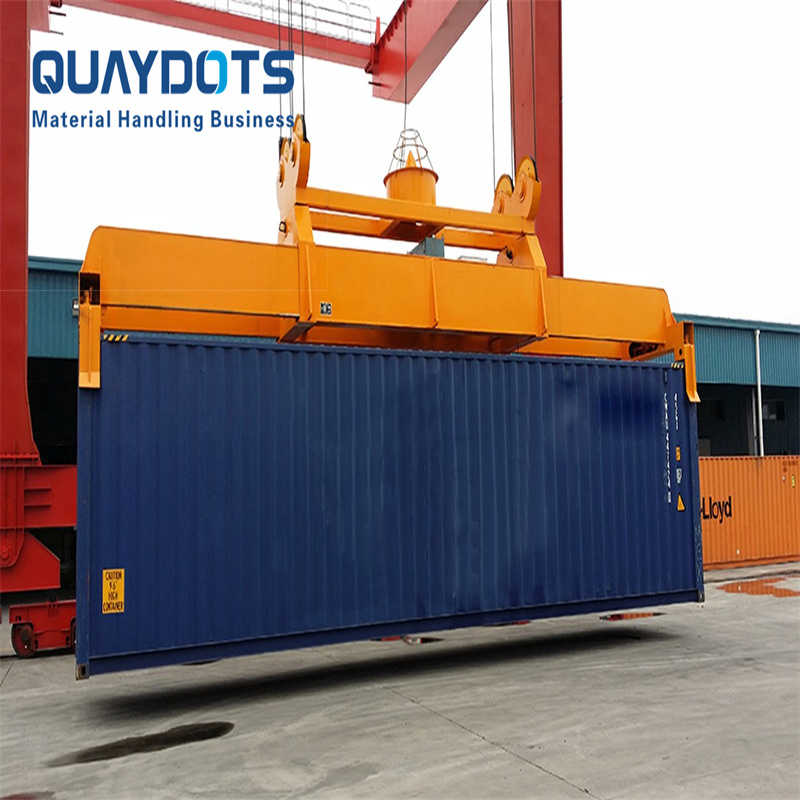

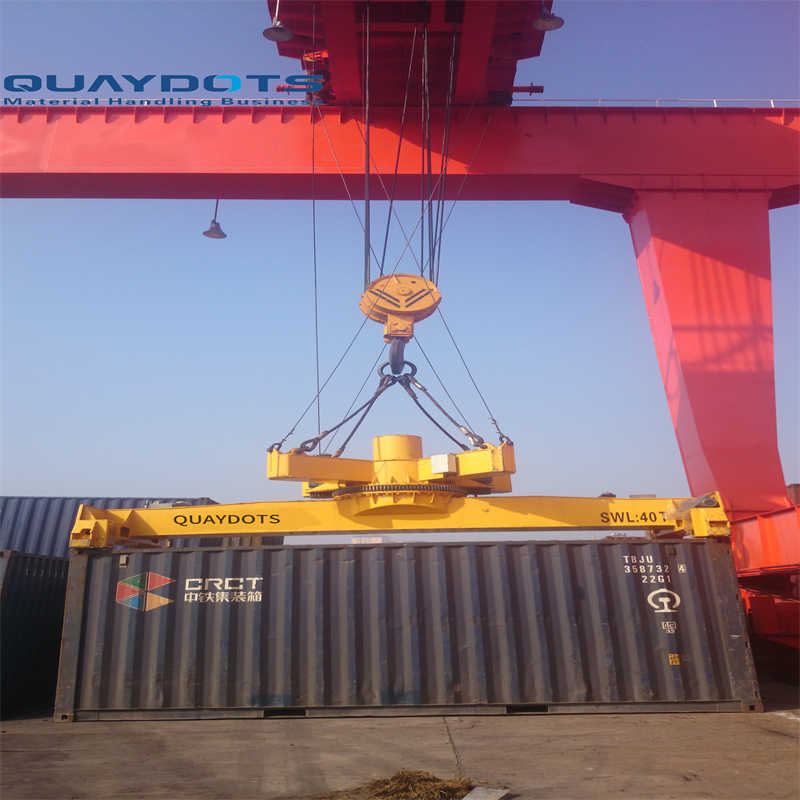

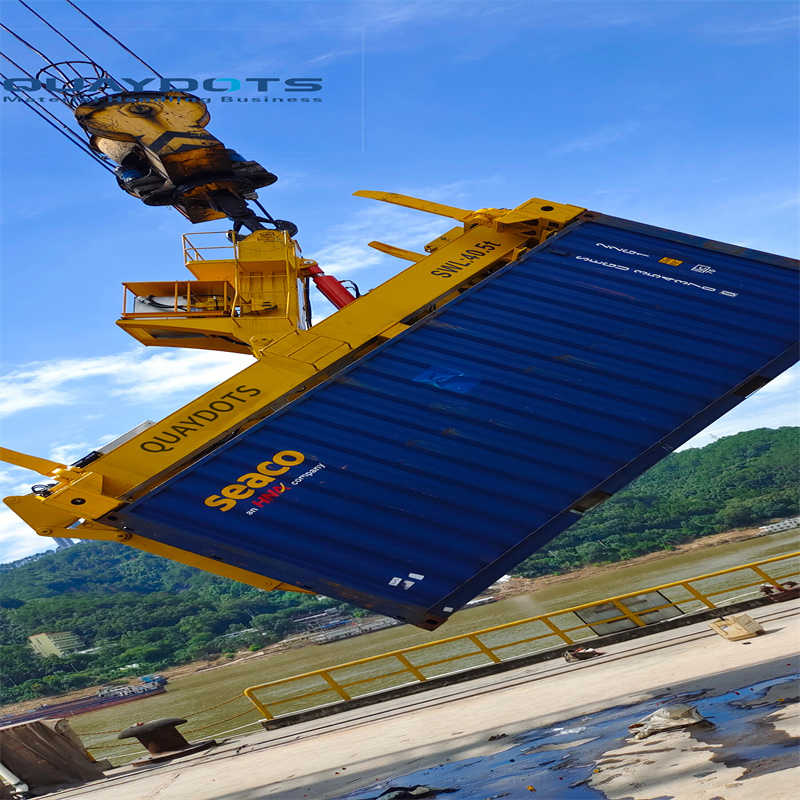

Product pictures
Company Profile
Shanghai Quaydots Mechanical & Electrical Engineering Technology Co., Ltd. is a technology-based enterprise that integrates research, design, production, maintenance, sales, and service, dedicated to serving the lifting market and providing customers with the perfect lifting and handling solutions. It is one of the main suppliers of grabs, lifting devices, clamps, and rigging in the Chinese market. The factory is located on the beautiful shore of Taihu Lake in Wuxi, with convenient transportation and fast logistics, providing customers with high-quality and efficient "QUAYDOTS" lifting tools.
FAQ
1. Q: What's your MOQ?
A: 1 Set;
2. Q: What's your package?
A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;
3. Q: What's your delivery period?
A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
4. Q: What's your warranty period?
A: 12 months from winches accepted;
5. Q: Do you have engineer oversea installation service?
A: Yes; We have;
7. Q: Do you provide lift tools?
A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch,
wire rope, fiber rope, etc.
8.Can you design based on provided specification?
Yes, we have our own engineering team who can design based on technical specifications. Products can also be customize according to your needs.
