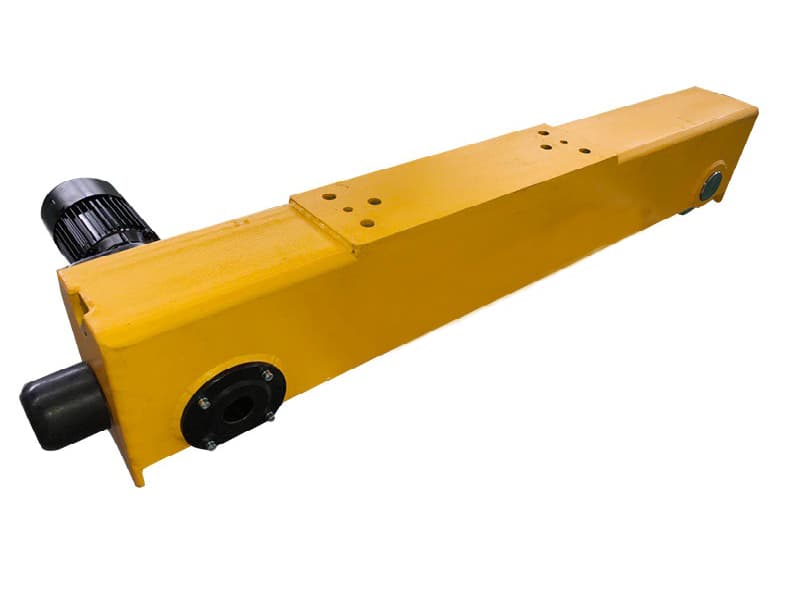

3 Ton End Trucks with Remote Control for Flexible Overhead Crane Operation

End trucks are the actuating device which is vital to make sure the whole crane to travel across the total span of the bay, to be used for single or double girder bridge crane (overhead crane). End trucks are very suitable for the loading or unloading transferring works in railway or outdoor. Our end trucks are well-established with a solid and reliable reputation, which feature smooth power-in action.

 Crane End trucks are the small and light machine with simple structure and wide application. They are easy to install or dismantle, and also easy to master, End trucks are the driving mechanism to gantry cranes and overhead cranes. There are two end trucks which are installed at both ends of the main girder to support the bridge cranes running overhead. They have the function of sustaining, which to make sure the main girder can run longitudinally along them, and the lower space is used for operating the lifting machinery. Therefore, the high-quality and high-performance end trucks play a crucial role in the operation of bridge crane.

 We have the ability to manufacture and sale high-grade end trucks under the help of some experienced professionals. End trucks have the heavy duty structure, stable wheel and high-efficiency driving mechanism, which are the important components of our products. Our steel structure is made from welded box type construction or structural hollow section, which makes the products to become more hardened. What’s more, the structure’s steel is Q345B or Q235B. These two types of steel can prolong our products service life and provide more safety to load jobs. 42CrMo alloy forged wheel is used in our end trucks. Besides, our products are equipped with 7 different diameters from 125mm to 500mm, which can fully satisfy the customer’s requirements. The end trucks are also equipped with jacking pads. They can provide the easy removal of individual wheels with minimum effort. The driving mechanism includes motor and gearbox, which is used geared reduction technology to drive the crane. It has the function that make the products become more cost-effective and low-noise.

 Our end trucks have the high-precision and one-step wholistic processing. The European driving design makes the products look more pretty, and provides direct driving for works. The connection plate is adjustable. It makes end trucks more suitable for any type of cranes. Furthermore, we can provide the various specifications to meet the per needs of our customers. They operate at standard (typically 30m/min) or dual speed. Normally, they can work better at the ambient temperature from -20℃ to +40℃(though there are some possibilities to have other working temps on customer’s request).

 There are two kinds of end trucks, the one is the top running (top-riding, Europe style, our normal one), and the other one is the underhung. Both of them have the same high-quality components. But actually each of them has their own advantages in application. The top running end trucks are more suitable for the single or double girder bridge crane, because they are divided into the two types which have one or two connection plate. Their connection plate is adjustable to apply the different size of main girders. But compared with the top running end trucks, the underhung’s can be appropriate for different size of runway rail, and they are more safe than the top running’s. Our company provide both the two kinds of end trucks for the customer. The most important is that we can send samples to customers for testing and examing before they confirm the order, which can give customers a chance to know a lot of details about the products by themselves.

 This kind of end trucks is widely used in Machining industry, wind power industry, automobile industry, papermaking industry, steel industry, matering handing and shipping industry, metallurgical and petrochemical industry. They are also applicable for the wide range cranes, such as bridge crane, gantry crane, overhead cranes and other types of cranes.

 End trucks are also called End Carriages, Crane endtruck, Boogey endtruck, Single girder endtruck, Double girder endtruck, Single Track Power Trolleys, End girder, End beam, Bridge crane end truck, Overhead end carriage, Overhead crane end carriage, Crane end carriage, Motorized overhead end carriage, Urethane wheel motorized overhead end carriage, Motorized overhead double girder end carriage, Urethane wheel motorized overhead double girder end carriage, Geared type manual overhead end carriage, Low head end carriage, End trucks for bridge cranes, End trucks for overhead cranes, high end trucks, Under slung crane end trucks.
