8 Ton Explosion-Proof Crane for Canada, 18m Span, 9m Lift
$5500.00 1 set
Qingdao Shanghai
L/C T/T
New
LB
CE, ISO9001
Ranchowell
General manufacturing
customize LD type 0.5t 1t 2t 3t 5t 10t 20t single girder overhead crane with electric hoist
TYPE | single Beam Overhead Crane |
Tonnage |
|
Span(main beam length) | 5 meters to 40 meters |
Lifting Height | 3 meters to 40 meters |
Working Level | A3 | A4 | A5 | A6 | A7 |
Lifting Speed | 5/0.8 m/min double speed OR Customized |
Trolley running speed | 0-20 m/min frequency conversion OR Customized |
Cart running speed | 0-32 m/min frequency conversion OR Customized |
Warranty time | 18 MonTHS AFTER SHIPMENT |
Lifting Motor | Squirrel cage 2-speed motor with Disc electromagnetic brake inside |
Gear Motor | Hardened tooth gear for C.T.& L.T. |
Surface preparation type | Shot Blasting Sa2.5 |
Painting Type/Depth | E/120µm |
Electric Panel | Schneeider brand |
Max./Min. Static Wheel Load | 62.9/11.8 kN |
Control Method | Remote control |
Industrial Voltage | 380V 50HZ 3P AC OR Customized |
Working temperature | -20~45ºC OR Customized |
Application area | Factory,workshop,warehouse,power station,logstic,etc. |
Brief Introduction:

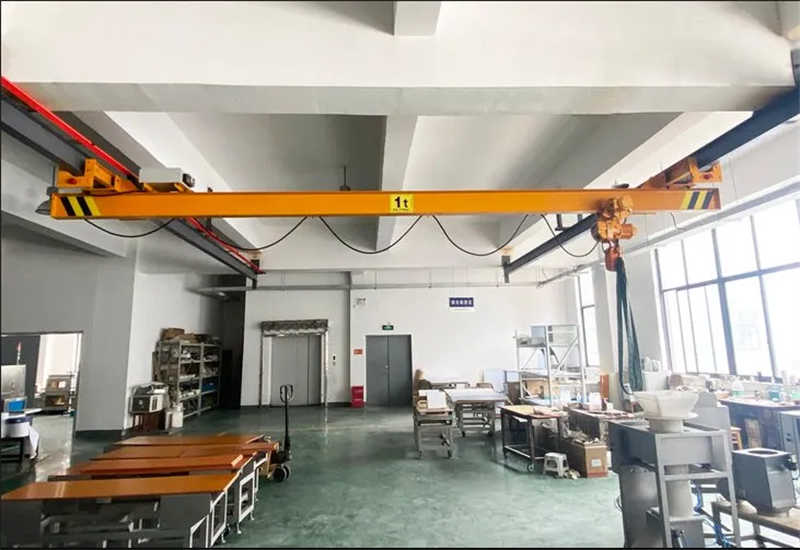

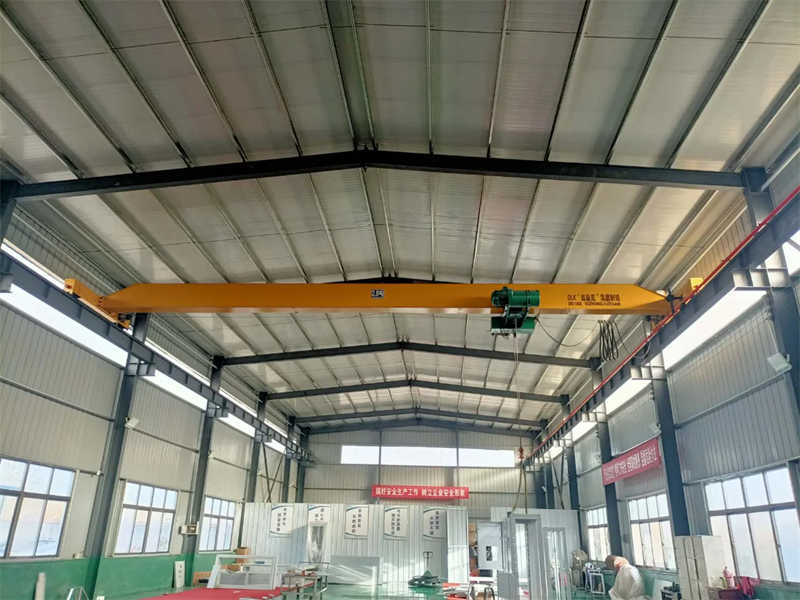

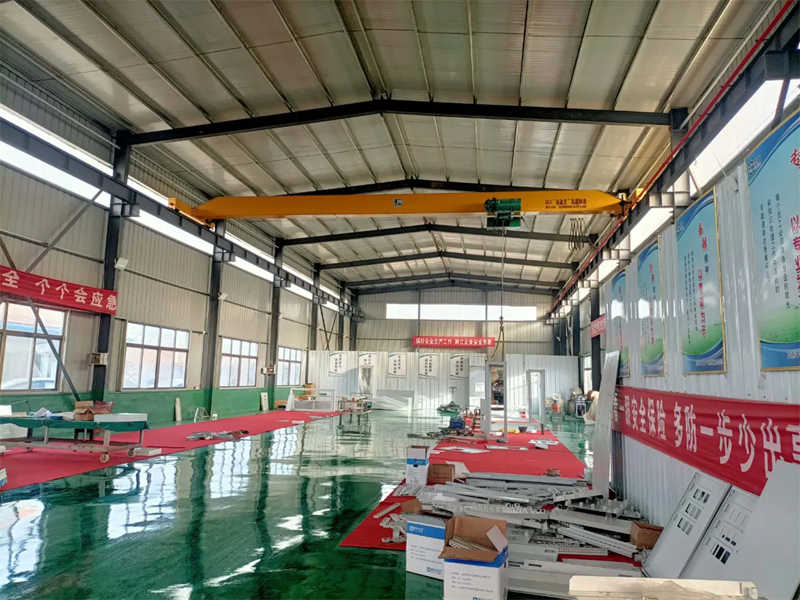

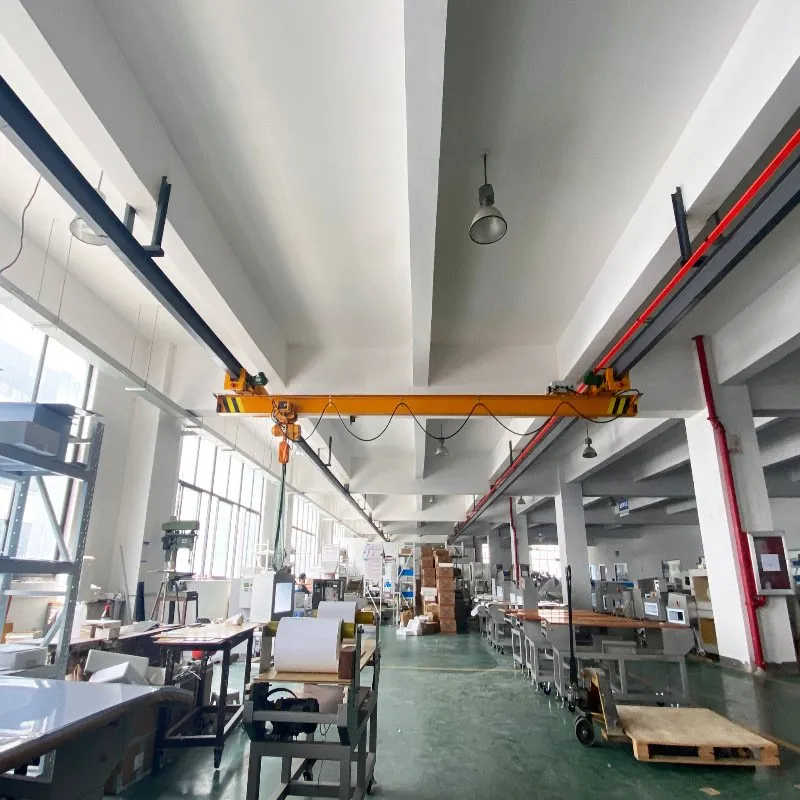

LD model single girder overhead crane is characterized by more reasonable structure and higher strength steel as a whole crane. Single girder overhead crane is more typical when lifting capacity less than 20T.
Used together with CD1 model MD1 model electric hoist as a complete set, it is a light duty crane with a capacity 0.5 ton ~ 32ton. The span is 7.5m~ 22.5m. Working duty is A3~A5, working temperature is -25-40ºC.
This product is widely used in steel mills, warehouse,hydropower station,production workshop, production line, materials stocks,equipment assembly etc to lift goods.
We have comprehensive standard equipment and professional design engineers to offer best solutions for individual requirements.
This product has two operational methods, ground(pendent controller /remote controller) or operational cabin room .
