Henjel 8 Button Double Speed 433MHz RF Industrial Wireless Radio Crane
$65.00 10 set
Qingdao Shanghai
L/C T/T
New
H208
CE, ISO9001
Henjel
General manufacturing

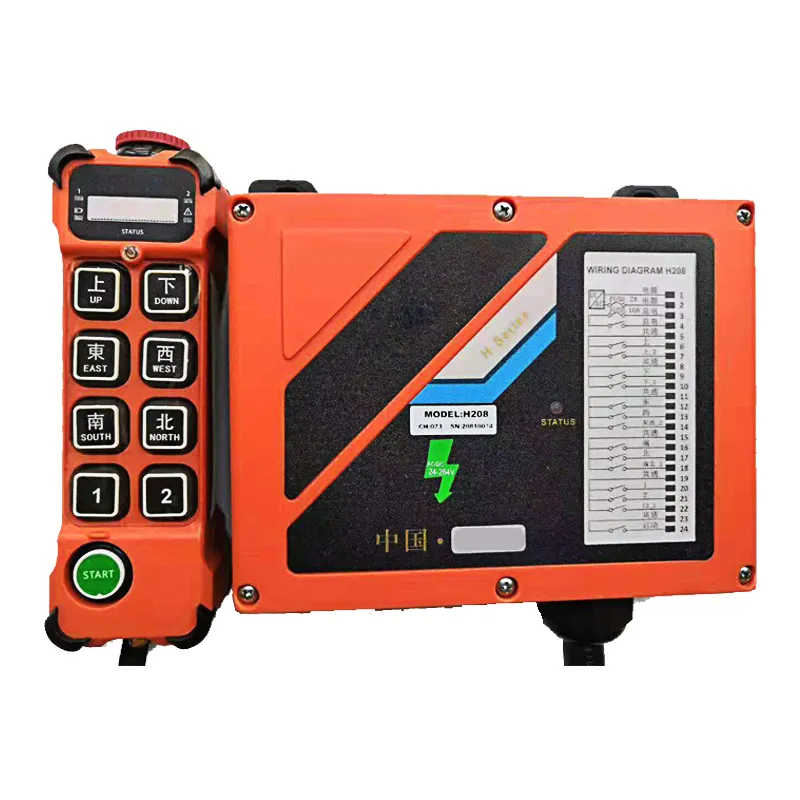

HENJEL H208 Wireless Remote Control 8 Buttons Double Speed

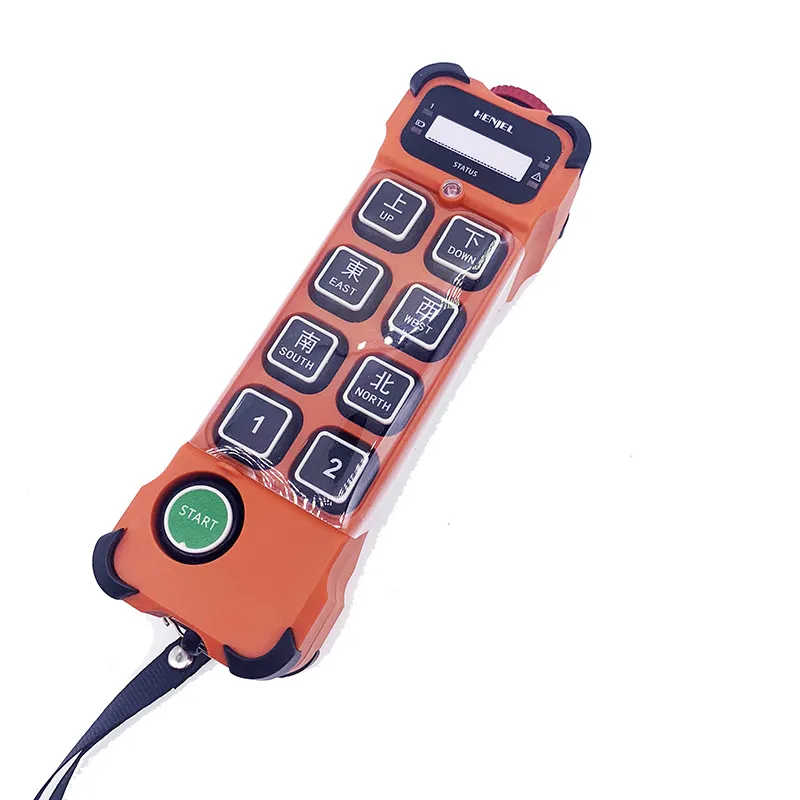

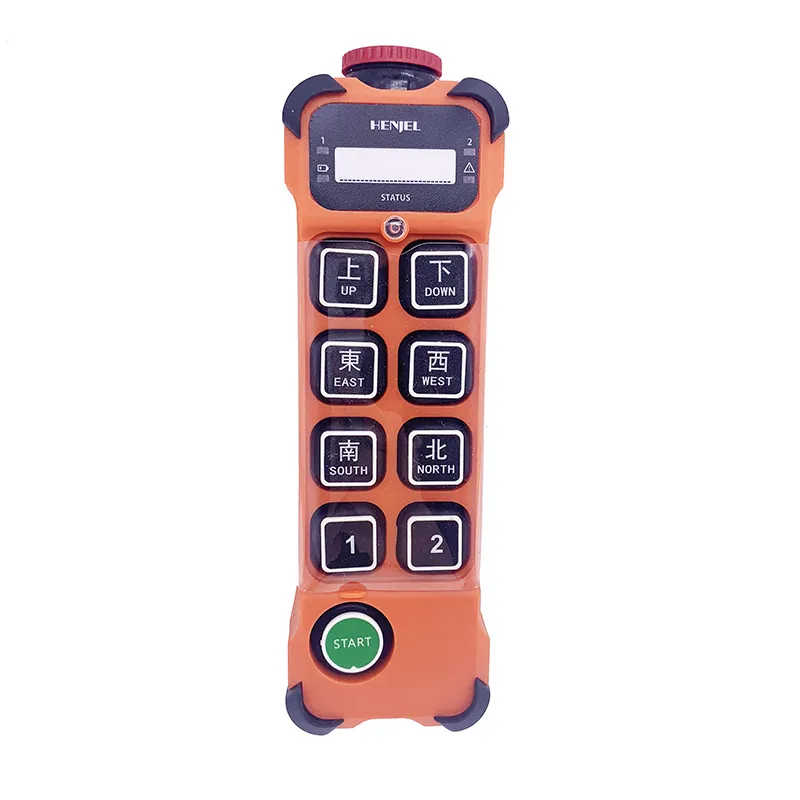

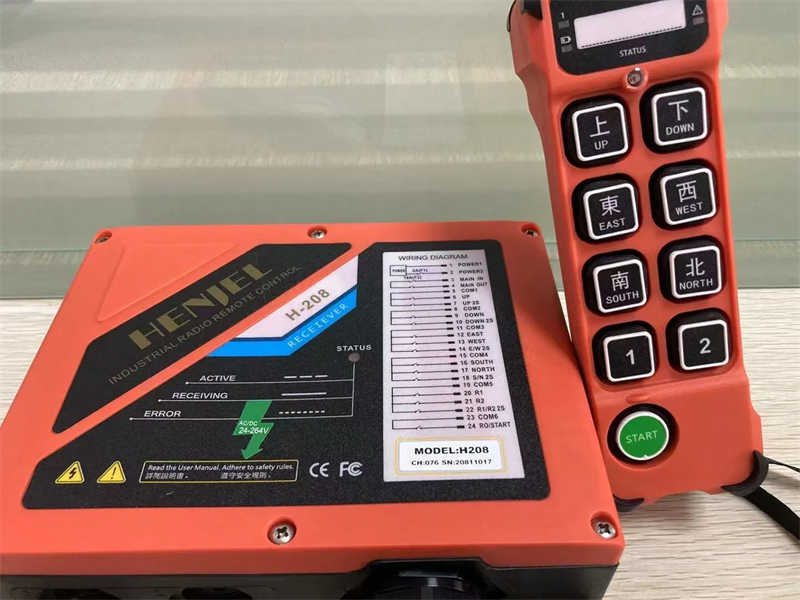

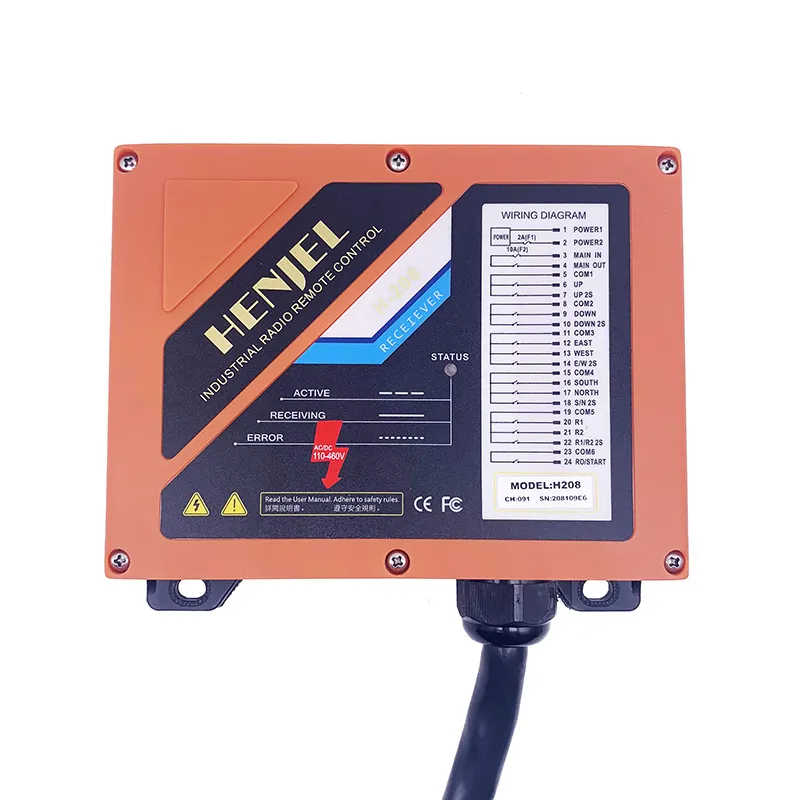

Detailed Photos
Product Parameters
| Transmitter | Receiver | ||
| Frequency range | 420.2~440.0mhz | Frequency range | 420.2~440.0mhz |
| Modulation method | 4GFSK | Modulation method | 4GFSK |
| Typical operating range | 100M | Sensitivity | [email protected] bps |
| Control stystem | PLL | Control stystem | PLL |
| Antenna impedance | 50Ω | Antenna impedance | 50Ω |
| Typical response time for Stop command and command | 50mS~10mmS | Typical response time for Stop command and command | 50mS~10mmS |
| Power supply | LR6(AA)1.5Vx 2 | Power supply | 24~264V AC/DC(low voltage version),110~460V AC/DC(high voltage version) |
| Antenna | Internal | Antenna | Internal |
| Average power consumption | 16mA@DC3V(default setting) | Standby power | 16mA@AC220V |
| Radio-frequency power | <10dBm (default setting) | Operating and storage temperature | (-20°C)~(+55°C)/(-40°C)~(+65°C) |
| Operating and storage temperature | (-20°C)~(+55°C)/(-40°C)~(+65°C) | Protection degree | IP65 |
| Protection degree | IP65 | Dimensions | 182x130x65mm(H106,H108) 190x184X64mm(H110,H112,H208) |
| Dimensions | 193x57x51mm(2-8buttons) 231x57x51mm(10-12 buttons) | Weight | approx. 905g(H106,H108) approx.1795g(H110,H112,H208) |
| Weight | approx. 325g(2-8 buttons) approx. 390g(10-12 buttons) | Housing material | PA6(30% GF) |
| Housing material | PA6(30% GF) |
Certifications
Packaging & Shipping
FAQ
1. Q: What is your minimum order?
A: Our MOQ is 1 unit;
2. Q: Is the product 100% assembled?
A: yes, all the products are 100% assembled.
3. Q: What certificates are approved for your product?
A: We have CE;
4. Q: Can you customize it to my needs?
A: Yes, we can customize the remote control at your request;
5. Q: How long is the warranty of your product?
A: Our product comes with a 12-month warranty;
6. Q: Do you provide after-sales service?
A: Yes, sure;
7. Q:What is the scope of use for this product?
A: It's universal, but specially used for hoist and cranes.
