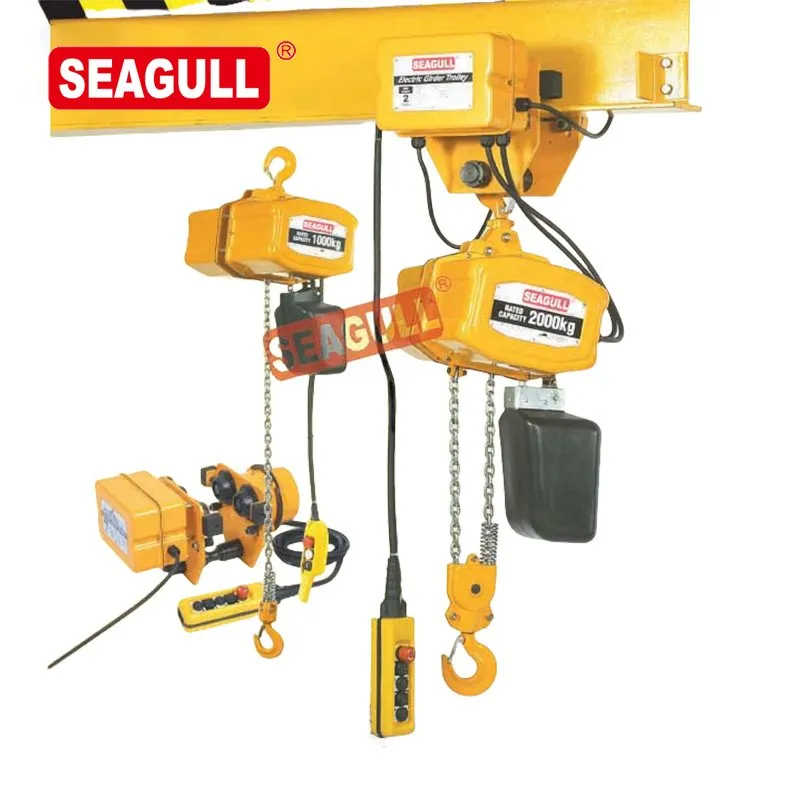

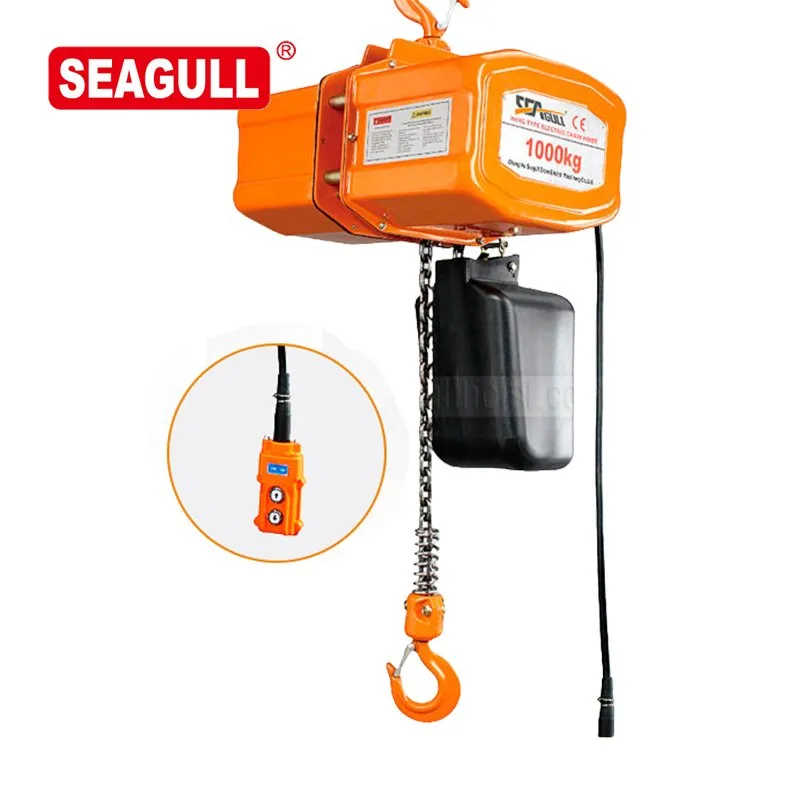

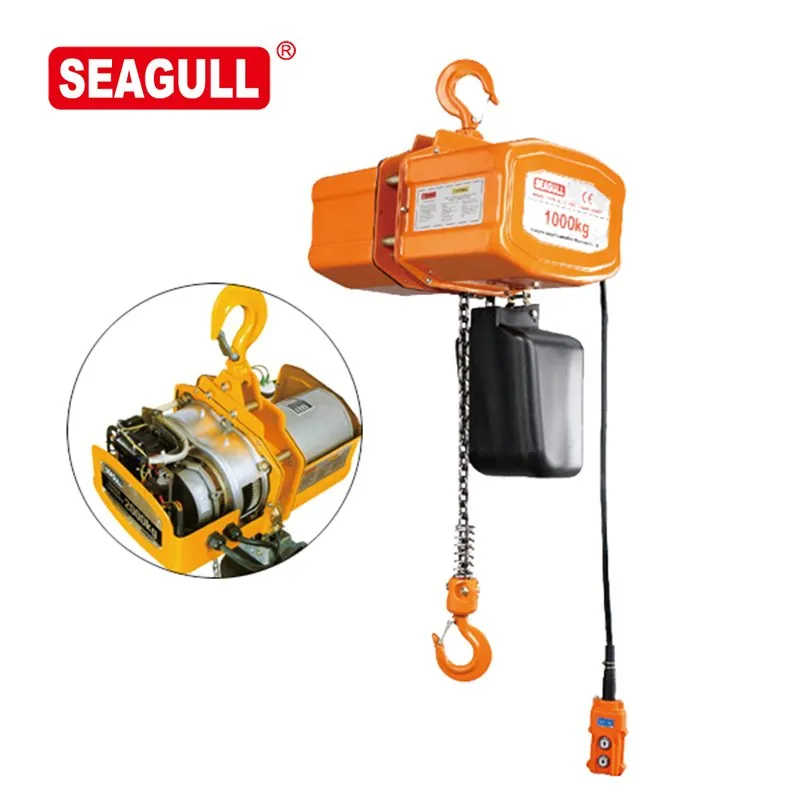

30 Ton High Capacity Electric Chain Hoist for Industrial Applications
$850.00 1 set
Qingdao Shanghai
L/C T/T
New
HHXG
CE, ISO9001
SEAGULL
General manufacturing
Features:
1. Capacity from 500kg to 5000kg.
2. Quality chain is supplied by FEC JAPAN.
3. Most tensile safety hooks without break.
4. Compact and high efficient motor with heat protection device.
5. Push button is with 24v low voltage to guarantee safety.
6. Limit switch.
7. Limit load device are fitted.
8. Both single phase and three phase are available.
9. CE certifed.
10. IP54 protection on electric hoist for dust and water proof protection.
Product Description
PRODUCT DETAILS
TECHNICAL PARAMETER
SUSPENDED TYPE SINGLE PHASE ELECTRIC CHAIN HOIST | |||||||||
model | Rated Load(Ton) | Lift(m) | Lifting Speed(m/min) | Hoist Motor 1-phase | Load Chain | Dynamical Test(KN) | |||
Out put(kw) | Ins Class | %ED | Dia(mm) | Number of falls | |||||
HHXG205 | 0.5 | 3 | 5.2 | 0.8 | F | 40 | 7.1 | 1 | 5.5 |
HHXG210 | 1 | 3 | 5.2 | 1.2 | F | 40 | 7.1 | 1 | 11 |
HHXG220 | 2 | 3 | 2.6 | 1.2 | F | 40 | 7.1 | 2 | 22 |
HHXG230 | 3 | 3 | 1.7 | 1.2 | F | 40 | 7.1 | 3 | 33 |
Min.Headroom MaxG(mm) | Net Weight(kg) | Major Dimensions(approx)(mm) | ||||||
A | B | C | D | E | F | H | ||
545 | 64 | 249 | 249 | 168 | 146 | 25 | 640 | 197 |
580 | 65 | 249 | 249 | 168 | 146 | 32 | 640 | 197 |
740 | 72 | 249 | 249 | 134 | 180 | 38 | 675 | 231 |
790 | 80 | 249 | 249 | 100 | 214 | 41 | 658 | 265 |
SPARE PARTS STORAGE

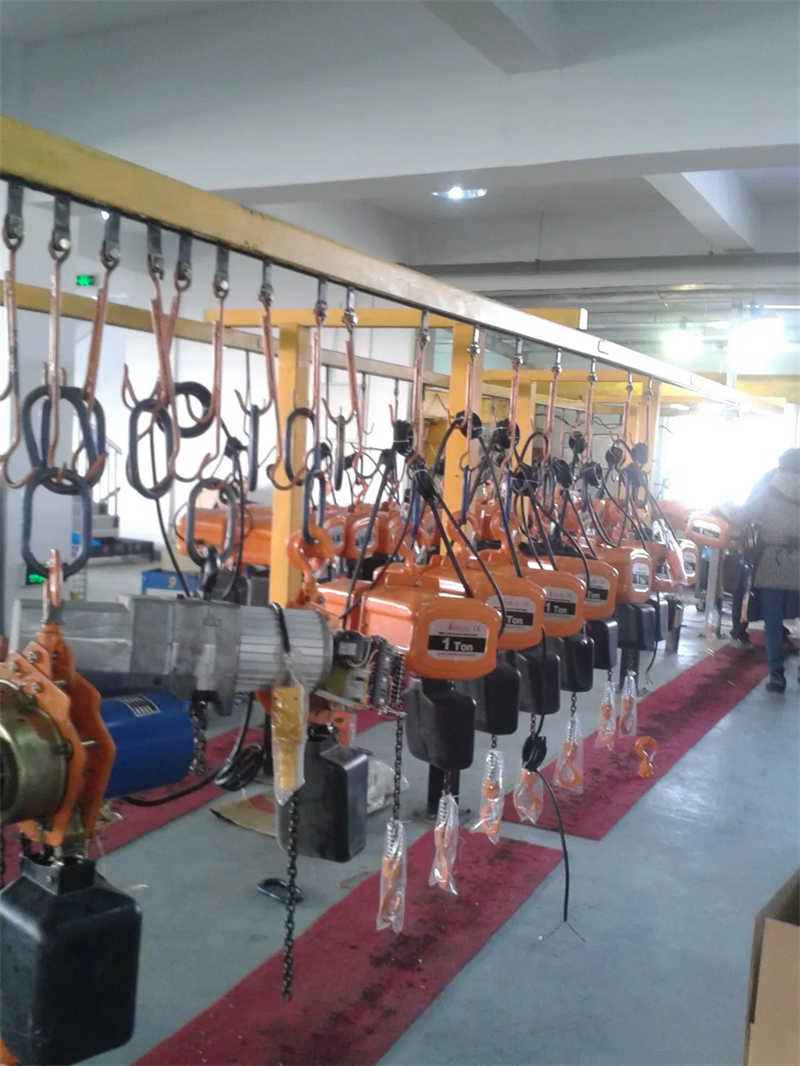

PRODUCTION LINE&PACKAGE
TESTING
Established in 1986, Changshu Seagull Crane&Hoist Machinery Co., Ltd. is a leading manu-facturer of lifting tools and equipments, including hand chain hoists, lever hoists, electric hoists, lifting clamps and more. With ISO9001:2015certification and TUV CE/GS approvals, we ensure top-quality products for global markets like the USA, Germany, Japan, and others. As a trusted OEM partner for international brands, we export 95% of our products worldwide. Our advanced testing facilities and strict quality control guarantee reliable performance. Over 50% of our clients have collaborated with us for more than 10 years, thanks to our consistent quality and excellent service.
SEAGULL is your reliable partner for innovative lifting solutions.
