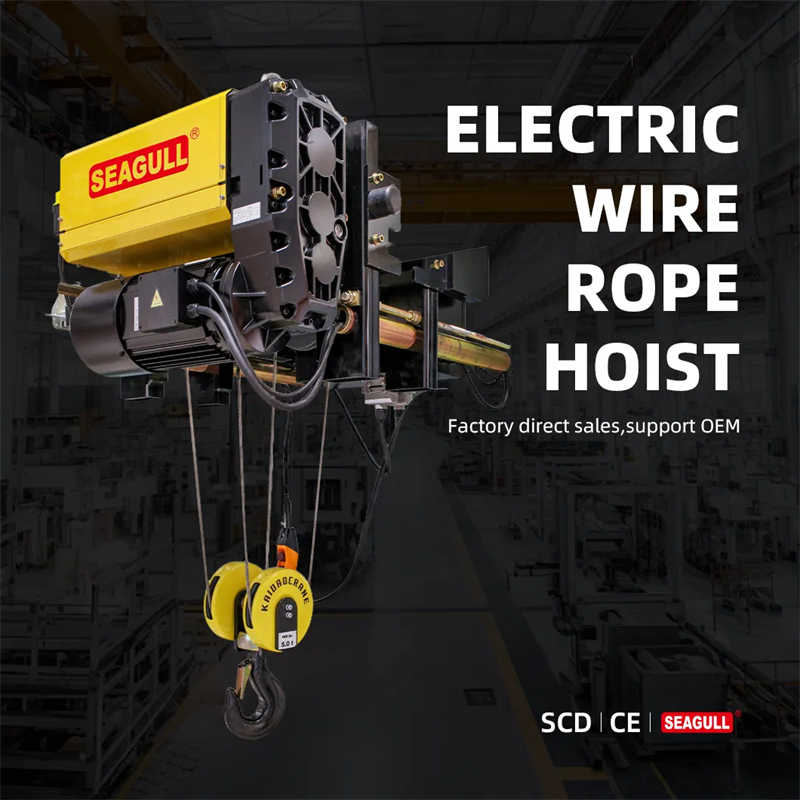

Heavy Duty 3.2 to 80 Ton European Style Wire Rope Hoist

Product Description

Single Girder/Double Girders 3.2-80t European Stype Electric Lifting Equipment Wire Rope Hoist

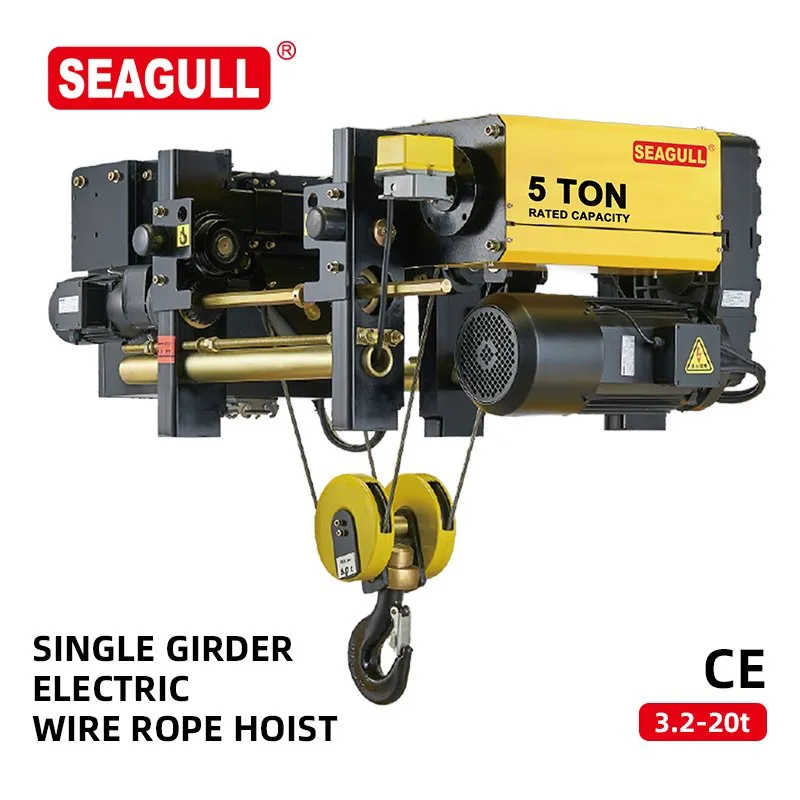

SINGLE GIRDER ELECTRIC WIRE ROPE HOIST

3.2-20 Ton

It has the technical characteristics of light dead weight, low headroom and small wheel pressure.

Ensure the stability and safety of product use. Create long-term value for customers.

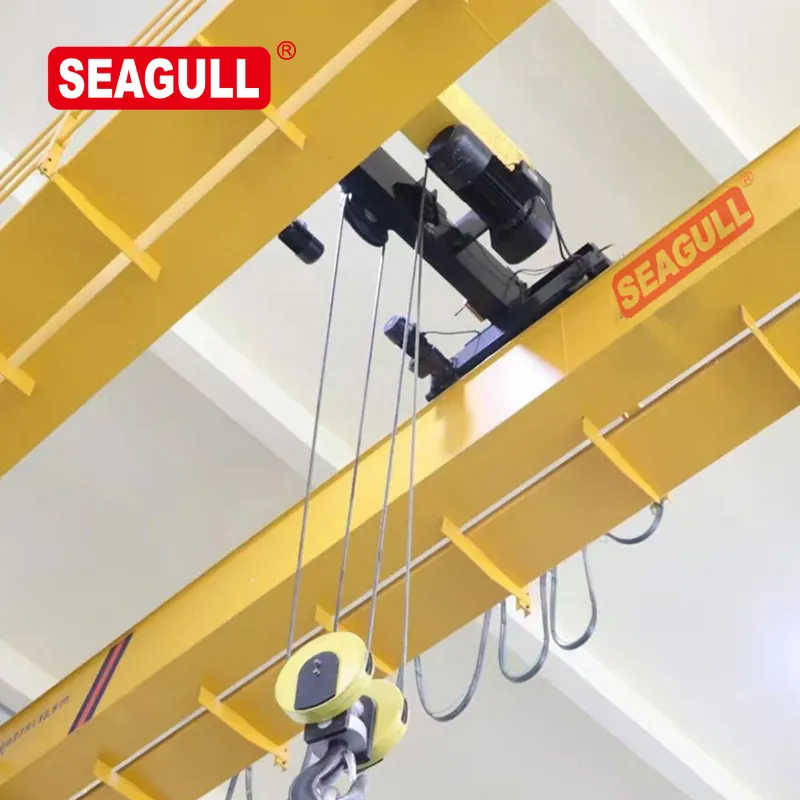

DOUBLE GIRDER ELECTRIC WIRE ROPE HOIST

3.2-80 Ton

It has the technical characteristics of light dead weight, low headroom and small wheel pressure.

Ensure the stability and safety of product use. Create long-term value for customers.

PRODUCT ADVANTAGES

Core Advantages
Modular Design & Flexible Customization
Interchangeable components and modular
structure meet diverse customer needs.
Standardized parts reduce maintenance costs
and ensure quick after-sales support.

High Performance & Compact Structure

Powerful driving force with compact dimensions for efficient space utilization.
Low energy consumption, quiet operation (<80 dB), and eco-friendly design.

Durability & Safety

Wire Rope: imported high-tensile steel (≥160 N/mm²),
corrosion-resistant treatment, and enhanced wear resistance.
Drum: Seamless steel tube construction compliant with
international safety standards.
Overload Protection: Instant cutoff mechanism to prevent
overload damage.

Precision & Efficiency

Dual-speed/frequency conversion motor enables precise
positioning (±10mm accuracy).
Smooth start-stop operation minimizes mechanical impact
and vibration.

Advanced Components

Brake System: Maintenance-free electromagnetic disc brake (IP55 protection grade).
Control Panel: French brand contactors, 24V-110V voltage options, and multiple safety protections.
Lifting Hook: Forged from Grade 1 high-strength steel with non-destructive testing certification.

MODULAR DESIGN, FLEXIBLE COMBINATION, MEET THE INDIVIDUAL, NEEDS OF CUSTOMERS

High-performance,large driving force and compact structureVarious components are running efficiencyLow energy consumption,low noise and eco-friendly designSmooth running,low impact,safe and reliableNo-wear design,long service lifeElectrical connection sustained rate is up to 60% to meet thedemands of the high frequency liftingService life to asbestos-free brake can up to one million timesHigh protection grade of brake can meet the requirements ofsevere environment

Trolley Drive Unit

Wire Rope with High-performance

Rope Guide

Trinity of high-performance motor reduction gearbox and brake. Compact structure,excellent performance. Low energy consumption,low noise and eco-friendly design. Variable frequency control smooth running, low impact and meeting requirements of a variety of speed. Asbestos-free brake disc and its normal service life can be up to one million times. No-wear design. Maintenance-free,long service life.

The imported wire rope of high performance with tensile strength up to 2160 N/MMz. The surface with galvanized processing for corrosion prevention effectively.  With good flexibility to ensure wear resistance of the wire rope and prolong its service.

Light weight,good wear resistance,to reduce the wear of wire rope effectively.Prevent wire rope from skipping and loosing to off-groove and safety first.

Overload Protector

Drum

Electric Control Panel

After the rated weight,the lifting loop of hoist can be cut off quickly so that the hoist can not lift heavy objects,so as to protect the hoist and operator's safety.

Use the Q345 type seamless steel tube as raw material and process it by numbers of working procedure. Advanced processing methods to ensure concentricity of the drum.The depth of rope groove is in compliance with the FEM standard.High-strength pressing plates and bolts are fastened on the end of the wire rope to ensure the safety of lifting.

Rational design, convenient maintenance, decreasing running cost, Professional and high quality of electrical components,safe and reliable. Multiple safety protection devices to ensure equipment safe. Protection grade lp54. Clear identification to easy for trouble removal.

Lifting Height Limiter

Lifting Hook Group

Freely adjustable screw lifting height limiter with high precision, wide adjustment range, safe and reliable. Multiple-contact configurations can effectively achieve the function of transition with low and high speed and the stop during the rise and fall.

DlN standard of lifting hook with safety latch. Forged by the high-strength material of T grade. Accompanied with nondestructive test certification of lifting hook randomly.

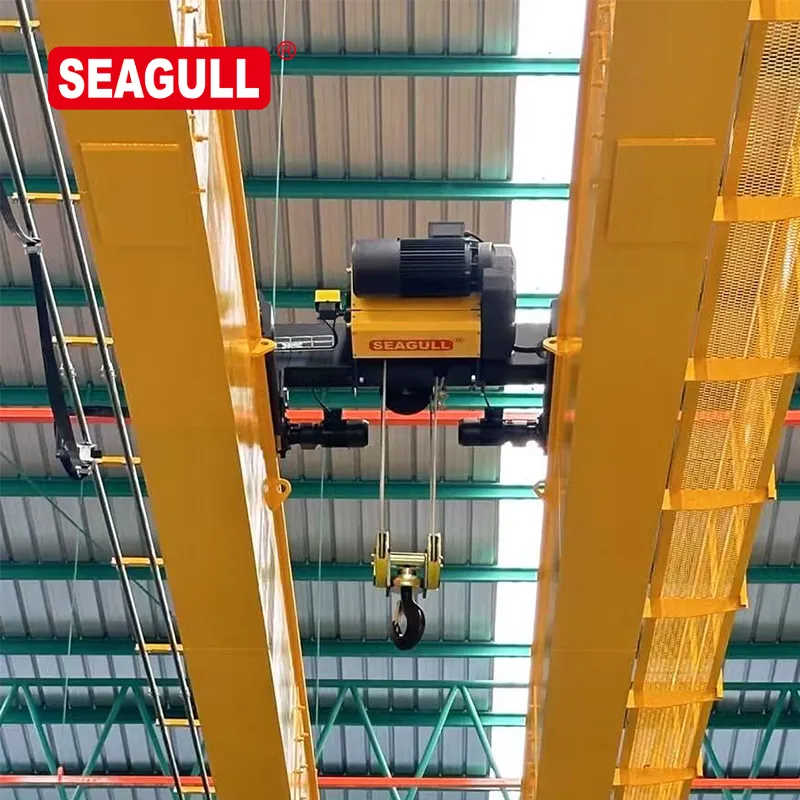

Electric wire rope hoist with electric trolley-Double girder 3.2-80Ton
