Metal Lever Mini Crane Durable Tight Chain Hoist
$35.00 10 set
Qingdao Shanghai
L/C T/T
New
HSZ-D
CE, ISO9001
SEAGULL
General manufacturing
Product Description
0.25T to 50T Hand hoist
Chain block is widely used in factories,miners,docks,warehouses,construction sites,agriculture and other fields, to lift goods and lifting equipment, in particular in conditions with no power supply or narrow , demonstrate superiority.
Detail

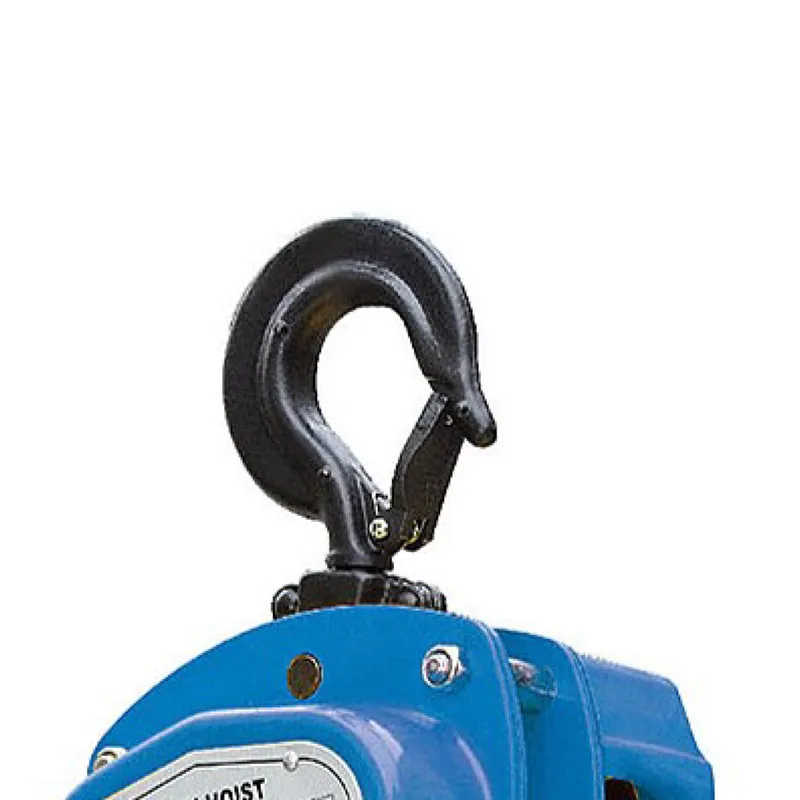

The hooks are equipped with robust cast steel safety latches and can rotate 360°.
Grade 80 black finished Load Chain
Zinc plated hand chain.
Robust and fully enclosed stamped steel housing allows also outdoor use.
Optimized hand forces set standards for easy operation.
High capacities of up to 50T.
The hooks are equipped with cast steel safety latches and can rotate 360°.
Strong bolts between side plates and housing cover and the reinforced hand wheel cover ensure increased stability
High quality bearings on side plates, gearbox ensure smooth operation of load chain and drive pinion.
Precision machined guide rollers ensure smooth running of the load chain.
The improved hand chain guide prevents canting or jamming of the hand chain, leading to a smooth running of the chain.
Zinc-plated brake parts, bolts and guide rollers ensure increased corrosion protection.
Housing cover with ball bearing
Side plate with ball bearing.
Additional protective cover of the brake system.
| Model | HSZ-0.25D | HSZ-0.5D | HSZ-1D | HSZ-1.5D | HSZ-2D | HSZ-3D | HSZ-5D | HSZ-10D | HSZ-20D | HSZ-30D |
| Rated load(T) | 0.25 | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | 30 |
| Standard it(m) | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 |
| Test load(T) | 0.375 | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 12.5 | 25 | 37.5 |
| Efforts required at capacity(N) | 187 | 224 | 281 | 290 | 328 | 307 | 332 | 342 | 435 | 417 |
| Diameter of load chain(mm) | 4 | 5 | 6 | 7.1 | 8 | 7.1 | 9 | 9 | 9 | 12 |
| No.of load chains | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 8 | 10 |
| Dimenslons(mm) A B C D | 120 115 20 21 | 148 133 346 28 | 173 150 376 32 | 196 173 442 38 | 211 176 470 40 | 230 174 560 38 | 279 201 688 50 | 463 201 765 64 | 840 201 950 82 | 703 387 1112 82 |
| Net weight (kg) | 7.5 | 9.3 | 12 | 17 | 19.7 | 29 | 42.5 | 73.6 | 186.2 | 238 |
| Extra welght per meter of extra lift(kg) | 1.5 | 1.6 | 1.8 | 2.1 | 2.4 | 3.1 | 4.6 | 9.8 | 19.6 | 23.9 |
Main Product
Company Profile
Established in 1986, Changshu Seagull Crane&Hoist Machinery Co., Ltd. is a leading manu-facturer of lifting tools and equipments, including hand chain hoists, lever hoists, electric hoists, lifting clamps and more. With ISO9001:2015certification and TUV CE/GS approvals, we ensure top-quality products for global markets like the USA, Germany, Japan, and others. As a trusted OEM partner for international brands, we export 95% of our products worldwide. Our advanced testing facilities and strict quality control guarantee reliable performance. Over 50% of our clients have collaborated with us for more than 10 years, thanks to our consistent quality and excellent service.
SEAGULL is your reliable partner for innovative lifting solutions.
Our Advantages
Certificate&Exhibition
Packaging & Shipping
FAQ
about US
Q1 Manufacturer or Trading Company?
We are Manufacturer and trading company, based in ChangshuCity,Jiangsu Province. Focus: high-quality, safe lifting solutions.
Q2 Certifications?
ISO9001, CE, GS, ASME compliant. Certificates available upon request.
Q3 OEM/ODM?
Yes. Custom colors, logos, manuals,packaging.
Q4 Advantages?
Quality products, wide range, customization, competitive pricing, excellent after-sales service.
Products
Q1 Main Products?
Manual Chain Hoists, Electric Hoists, Electric Trolleys, Beam Trolleys, Beam Clamps, Lifting Clamps, Snatch Blocks, Permanent Magnet Lifters, Mechanical Jacks, Manual Winches, Webbing Slings, etc.
Q2 Manual Chain Hoist Capacity?
0.25 tons - 50 tons. Custom options available.
Q3 Chain Material?
High-strength alloy steel, heat-treated, EN818-7 compliant.
Q4 Electric Hoist Voltage/Control?
220V/380V/415V/440V,50Hz/60Hz. Hand & remote control options.
Q5 Choosing the Right Tool?
Consider load, height, environment, frequency, safety. Contact sales for assistance.
Q6 Product Catalog?
Request via contact form.
Orders&Payment
Q1 MOQ?
Varies. Different products with different MOQ. Please contact us for details.
Q2 Payment Methods?
T/T or L/C in USD/RMB/EUR.
Q3 Delivery Time?
30-60 days, but negotiable for urgent order.
Q4 Trade Terms?
FOB, CIF, CFR, negotiable
After-Sales Service
Q1 Warranty?
1 or 2 years warranty depends on different products, against defects (non-human caused).
Q2 After-Sales Support?
Contact sales representative, email
Q3 Technical Support?
Installation, debugging, maintenance assistance available.
Other
Q1 Samples?
Available on request. Fees may apply.
Q2 Become an Agent?
Contact sales team for details.
