Stainless Steel Wire Rope Hoist - Corrosion-Resistant for Harsh Environments
$1350.00 1 set
Qingdao Shanghai
L/C T/T
New
CD1/MD1
CE, ISO9001
SEAGULL
General manufacturing,Metal production industry,Renewable energy industry
Product Description
Product Description

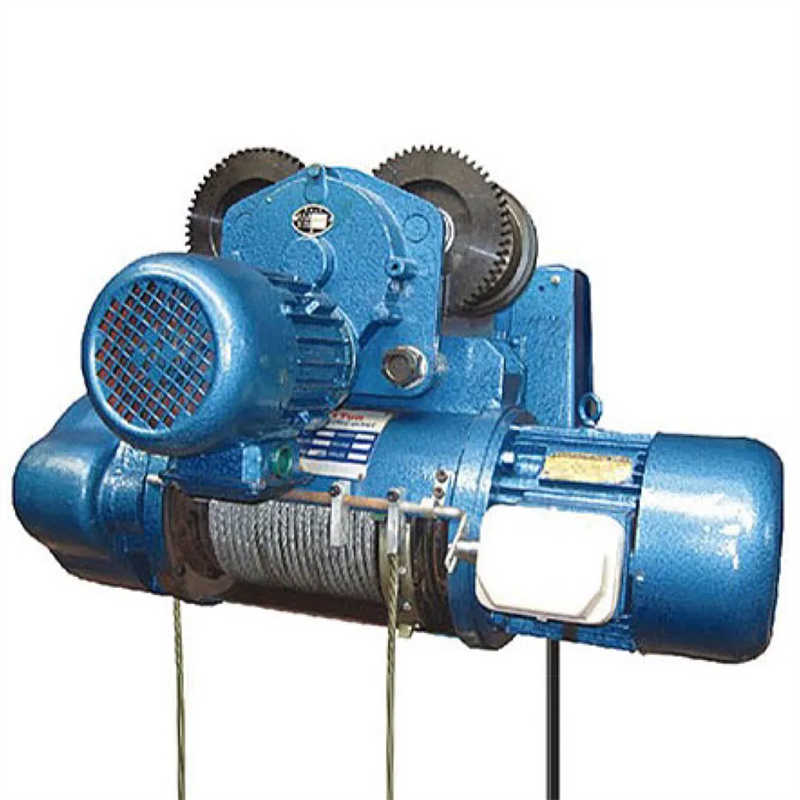

0.25T-5T Electric hoist 110v wire rope hoist / electric chain hoist
Capacity from 0.25t to 30t. Lifting length from 6m to 30m(6m,9m,12m,18m,24m,30m). Most tensile safety hook without break. Compact and high efficient motor with heat protection device. Push button is with 36v low voltage to guarantee safety. Four model for the wire rope hoist.
Detail
Easy operation: usually equipped with remote control or button operation interface, the operator can easily control the lifting, falling, forward, backward and other actions of the electric hoist, without complex operation skills, reducing labor intensity and improving work efficiency
Multiple protection devices: generally equipped with limited bit protection, overload protection, emergency stop button and other safety devices. Limit protection can prevent the hook from exceeding the safe travel range, overload protection can avoid equipment damage or safety accidents caused by excessive load, and the emergency stop button can quickly cut off the power and stop the operation of the equipment in the event of an emergency.
Reliable braking: most electric hods use electromagnetic braking or mechanical braking, which can immediately brake when the power is cut off, prevent heavy objects from sliding, and ensure the stability and safety of heavy objects in the air.

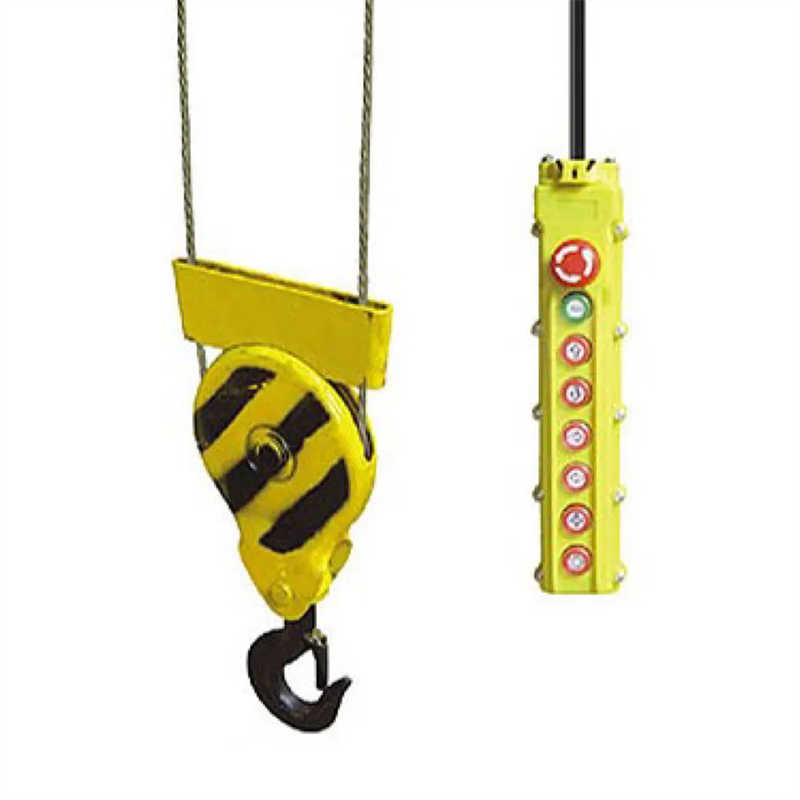

High safety: the hook is usually forged of high-quality alloy steel, high strength, good toughness, can withstand greater tension and impact, not easy to break; The anti-tripping pawl is provided to prevent the sling from accidentally slipping out of the hook.
Good flexibility: the pulley can rotate flexibly, reduce the wear of the wire rope, and it is smoother in the process of lifting and descending, which can effectively reduce the operating resistance and improve the work efficiency.
Strong adaptability: There are a variety of specifications and models, which can be used with different weights and types of electric hods to meet the needs of various lifting operations.

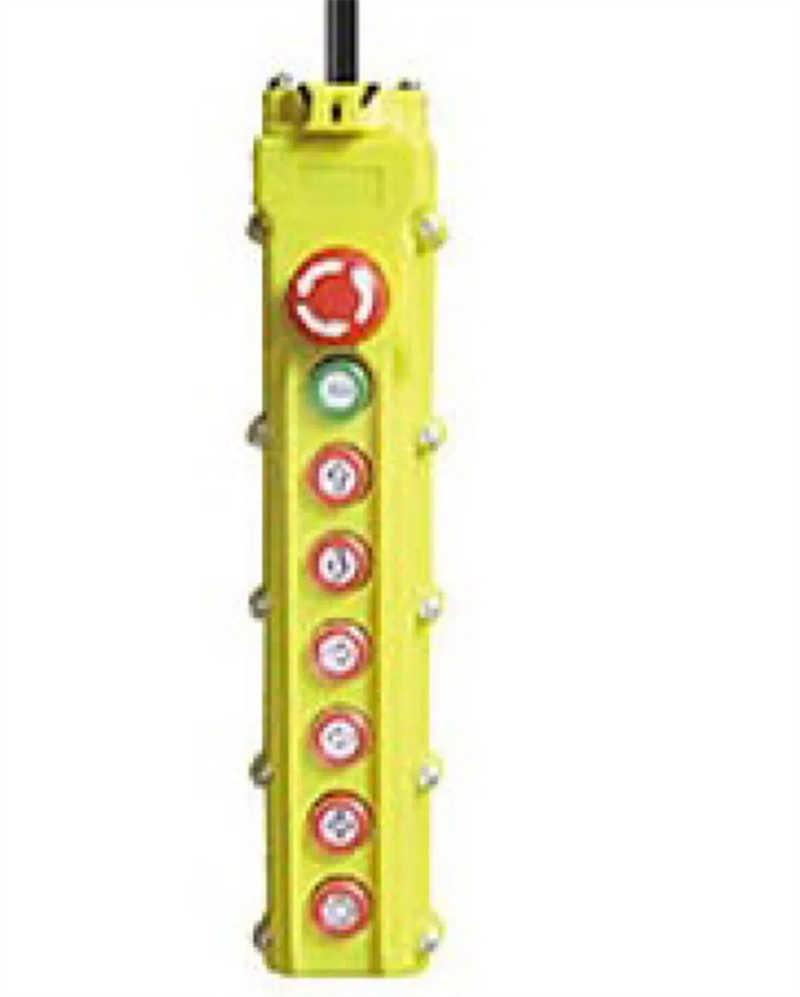

Easy operation: the button layout is reasonable, the function logo is clear, the operator can quickly familiarize and operate, and realize the lifting and moving of the electric hoist.
High safety: there is an emergency stop button, which can quickly cut off the power supply in case of emergency to ensure the safety of equipment and personnel; The shell is generally made of insulating and fireproof materials to reduce the risk of leakage.
Strong durability: usually has good protective performance, can adapt to the factory workshop and other dusty, wet environment, internal components reliable quality, long service life.
| CD(MD) WIRE ROPE HOIST CD1(MD1)0.25t-2t | ||||||
| Capacity | t | 0.25 | 0.5 | 1 | 2 | |
| Lifing height | m | 3 6 9 12 | 6 9 12 18 | 6 9 12 18 24 30 | 6 9 12 18 24 30 | |
| Lifting speed | m/min | 8 | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | |
| Running speed | m/min | 20 | 20 | 20 | 20 | |
| I-Beam track modle(GB706-88) | 12-20b | 16-28b | 16-28b | 20a-32c | ||
| Min.Radius | m | 1 1 1 1 | 1.5 2 | 1.5 2 2.5 3.5 | 1.8 2 2.5 3.5 | |
| Motor power | kw | 0.4 | 0.8(0.8/0.2) | 1.5(1.5/0.2) | 3(3/0.4) | |
| Running motor power | kw | 0.06 | 0.2 | 0.2 | 0.4 | |
| L | mm | 386 386 549 615 | 616 688 760 904 | 760 855 955 11501345 1540 | 820 920 1020 1220 1420 1620 | |
| L(MD1) | mm | 626 698 770 914 | 770 865 965 1160 1355 1550 | 830 930 1030 1230 1430 1630 | ||
| L | mm | 104 104 267 333 | 318 390 462 606 | 401 499 597 793 989 1185 | 418 518 618 808 1018 1218 | |
| f | mm | 386 | 490 | 645 | 754 | |
| B | mm | 130 | 190 | 196 | 240 | |
| φ | mm | 4-φ11 | 4-φ15 | 4-φ19 | 4-φ23 | |
| b | mm | 90 | 120 | 127 | 155 | |
| f | mm | 421 432 | 550 650 | 719 810 | 856 956 | |
| B max | mm | 398 415 | 897 | 897 | 935 | |
| Weight 10% | CD2 Two direction movement, Single speed | kg | 33 37 41 45 | 80 85 90 95 | 130 140 157 172 186 203 | 174 190 208 232 260 284 |
| CD1 Four direction movement, Single speed | kg | 41 45 49 60 | 118 136 153 198 | 170 180 207 222 236 253 | 230 244 299 315 337 357 | |
| MD2 Two direction movement, Double speed | kg | 88 93 98 103 | 138 148 165 180 194 211 | 184 200 218 242 270 294 | ||
| MD1 Four direction movement, Double speed | kg | 135 140 160 170 | 183 190 225 240 254 271 | 269 284 335 369 379 404 | ||
