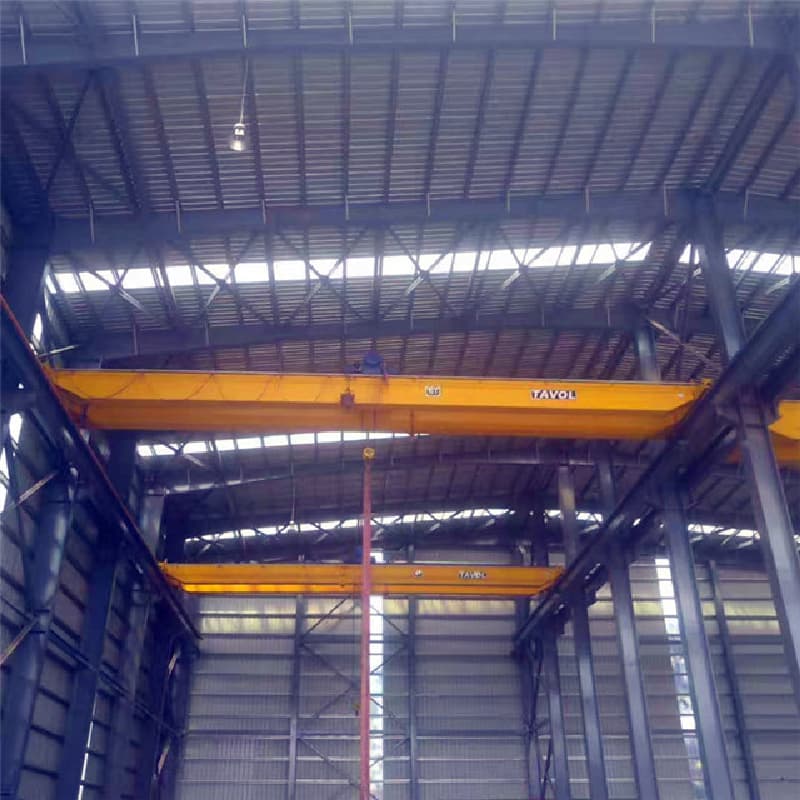

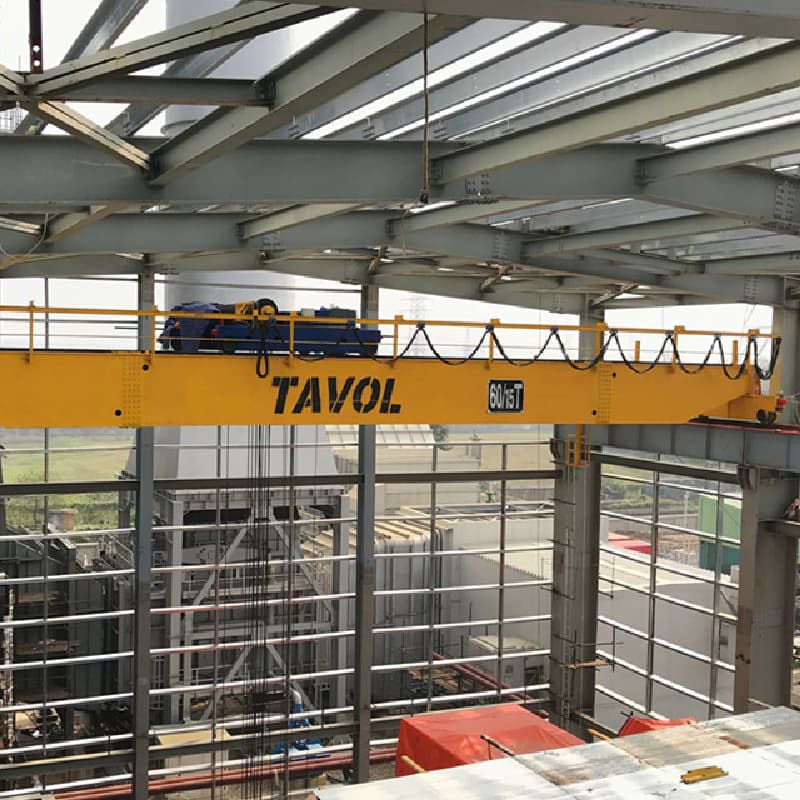

QD 50T Heavy Duty Double Girder Overhead Crane - 20m Span, 48m Lift
$91200.00 1 set
Qingdao Shanghai
L/C T/T
New
QD
CE, ISO9001:2000
TAVOL
General manufacturing
Product Description
There are two girder beams that make up the bridge, and they are supported by an end truck on each side. The electric winch trolley run on a rail installed above the bridge girders. For heavy duty work frequency, QD model double girder overhead eot crane can be design of work duty as A5, A6, A7 and A8. Equiped with diffierent lift tools can easily meet different lift requirements.
01- Double Girder Bridge Crane Heavy Duty QD Model Structure:
Double girder Bridge crane heavy duty QD Model also called double girder bridge cranes, eot cranes or QD type bridge crane. The cranes winch travels along the bridge between parallel runways. It is composed of main beam, end carriage, hoist or winch, electric power transmission device and operation room.
For heavy duty work frequency, QD model double girder overhead eot crane can be design of work duty as A5, A6, A7 and A8. Equiped with diffierent lift tools can easily meet different lift requirements.
Product Features:
1. High working effiency;
2. Smooth movement &comfortable operation;
3. Convenient maintenance & aesthetic painting;
4. Light dead weight, light wheel load and safety.
02- Double Girder Bridge Crane Heavy Duty QD Model Specification:
SI | Descriptions | Reference Data |
1 | Double girder overhead crane capacity | 5 ton, 10 ton, 15 ton, 20 ton, 20/5 ton, 32 ton, 32/5 ton,50 ton, 50/10 ton, 60 ton, 80 ton, 100 ton, 150 ton, 200 ton, |
2 | Double girder overhead crane Span | 6 - 31.5 meter |
3 | Double girder crane Lifting height | 1- 60 meter |
4 | Double girder bridge crane Work duty | A5/M5; A6/M6; A7/M7 |
5 | Overhead Crane Control method | Remote control or cabin control |
6 | Electrical parts | CHINT or Schneider |
7 | Overhead Crane Motors | Chinese famous brand |
8 | Overhead Crane Bearings | Chinese famous brand "HRB" |
9 | Overhead Crane Hook | Forged hook with safety lock |
10 | Overhead Crane Hoist Lifting speed | 0-10M/Min |
11 | Overhead Crane Winch Traverse speed | 0- 40M/Min |
12 | Double girder Bridge Crane Long travelling speed | 0- 80M/Min |
13 | Variable frequency drives | Optional |
14 | Maintenance platform | Included |
03- Double girder Bridge crane heavy duty QD Model Application:
QD model double girder overhead crane is recommended for heavy duty applications where the crane has to handle heavy capacities and longer spans.
QD model double girder bridge crane is applicable to the transfer, assembly, check and repair as well as load and unload at mechanic processing workshop, subsidiary workshop of metallurgical mills, warehouse, goods yard and power station.
It is widely applicable to multiple fields such as: Pre Engineered Steel Building, Steel Plant, Steel Product Maker, Oil Industry, Plastic Plant, Cement Plant, Power Plant , Mine Industry, Food Industry, Chemical Industry, Cable Plant, Machine Tools, Car/Truck Industry, Transport Company, Construction Company, Electrical Company, Shipyard, Stone Yard, Installation and Maintenance etc.
04- Double girder Bridge crane heavy duty QD Model Package:
1. Electric parts are packed by high quality plywood crate, to reduce distortion
in conveying;
2. Main beams, end beams are packed by plastic woven cloth, to reduce
abrasion when transport.
3. Whole set of overhead crane will be shipped by container or by bulk.
