Overhead Lifting Crane with Remote Control for Enhanced Operational Safety
$6000.00 1 set
Qingdao Shanghai
L/C T/T
New
LD
CE, ISO9001
JCYC/OEM
General manufacturing
| Product Name: | Single Beam Overhead Bridge Cranes For Sale | Span: | 3-35m |
|---|---|---|---|
| Working Duty: | A5, A6 | Capacity: | 1 Ton To 20 Ton |
| Lifting Height: | 1-35m | Design Standard: | FEM, DIN |
| Power Supply: | 380V/440V | ||
| Highlight: | 10t Overhead Travelling Crane,A5 Single Beam Overhead Travelling Crane,35m Span Overhead Travelling Crane | ||

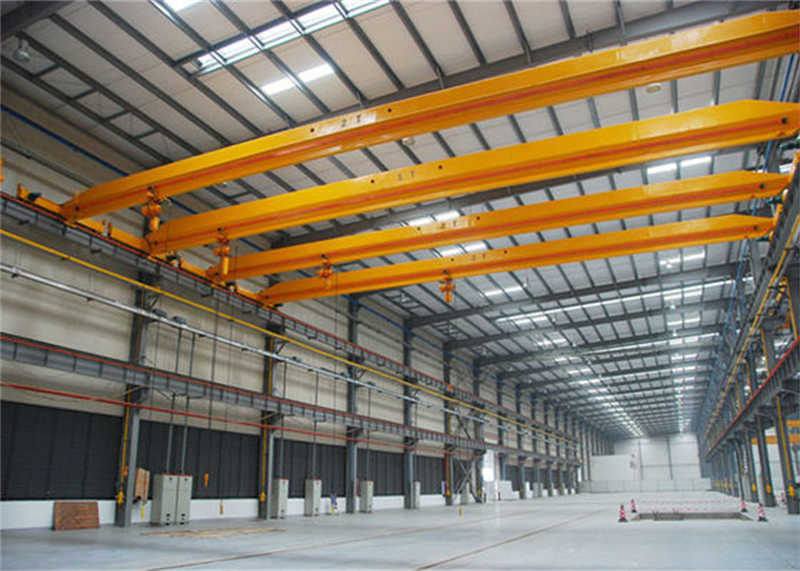

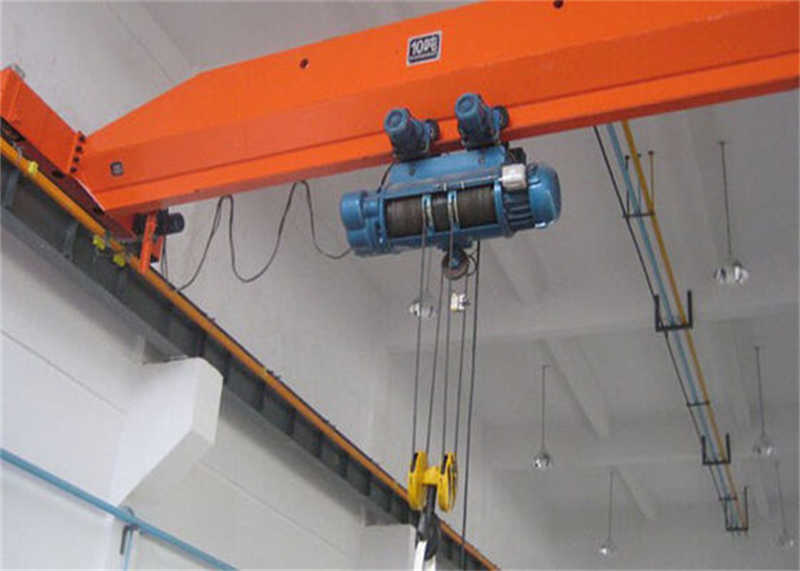

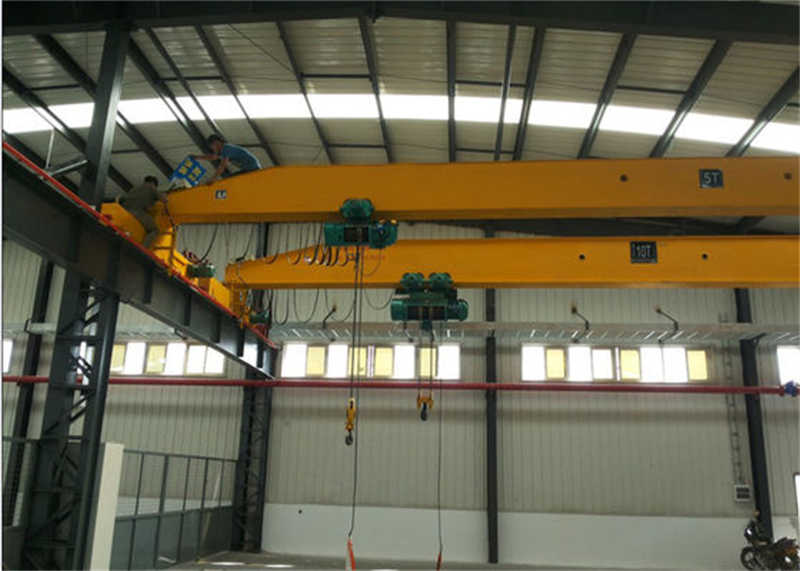

Single Girder Beam 5t/10t Overhead Travelling Crane for Project
1. Product Feature:
European single beam overhead crane is a light duty overhead crane designed as European crane standards, eg: FEM, DIN. It has the advantage of smaller dimension, lighter self weight, higher lifting height and so on. Lifting capacity from 1 ton to 20 ton. European type single girder overhead crane has the minimum limiting distance from hook to the wall, lower headroom and more effective working space, etc. It will save more money on the initial construction investment, long term heating fee, air conditioning and other maintenance fee.
2. Technical Information(example):
Single Girder Overhead Crane(10ton)
| Span(m) | 7.5 | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 |
| Working duty | A5 | ||||||
| Lifting height(m) | 6, 9, 12 | ||||||
| Lifting speed(m/min) | 0.8/5 | ||||||
| Trolley weight(kg) | 640 | ||||||
| Total weight(kg) | 2696 | 3200 | 4091 | 5307 | 6466 | 7694 | 9309 |
| Max Wheel Load(KN) | 51.85 | 54.44 | 57.7 | 60.83 | 64 | 67.26 | 71.36 |
| Track | P30 | ||||||
| Main dimension(mm) | 7.5 | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 |
| Rail top to main top(H) | 908 | 908 | 1008 | 1208 | 1308 | 1358 | 1482 |
| Rail top to hook centre(h) | 465 | 465 | 465 | 365 | 365 | 365 | 345 |
| Hook left limitation(C1) | 675 | 675 | 675 | 675 | 675 | 675 | 695 |
| Hook right limitation(C2) | 1020 | ||||||
| Track center to end beam lateral(A) | 100 | ||||||
| Wheel base(W) | 2000 | 2000 | 2000 | 2500 | 3000 | 3000 | 3500 |
| Crane width(B) | 2674 | 2674 | 2674 | 3174 | 3674 | 3674 | 4174 |
