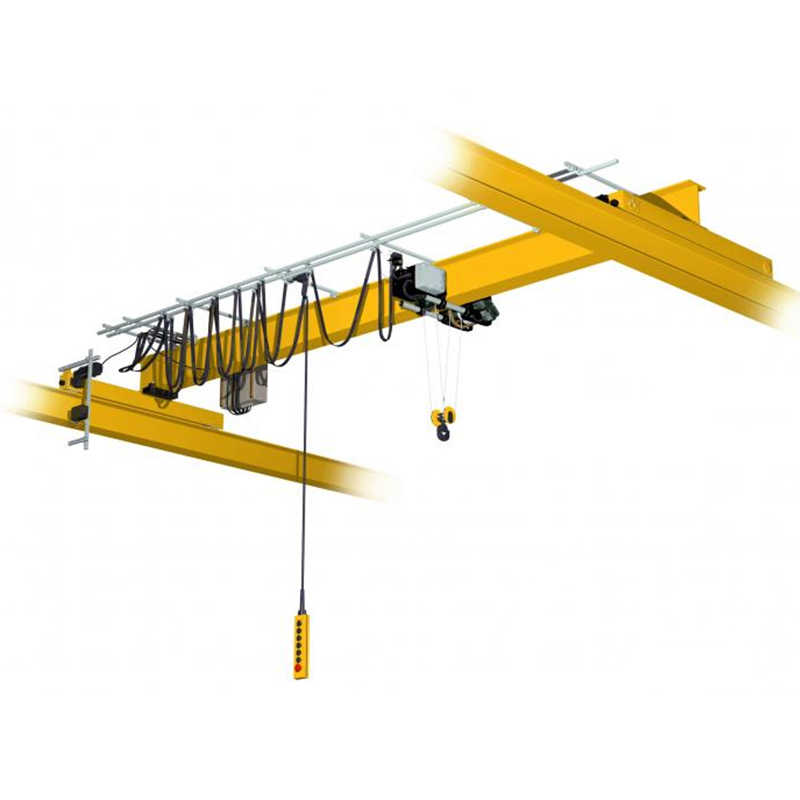

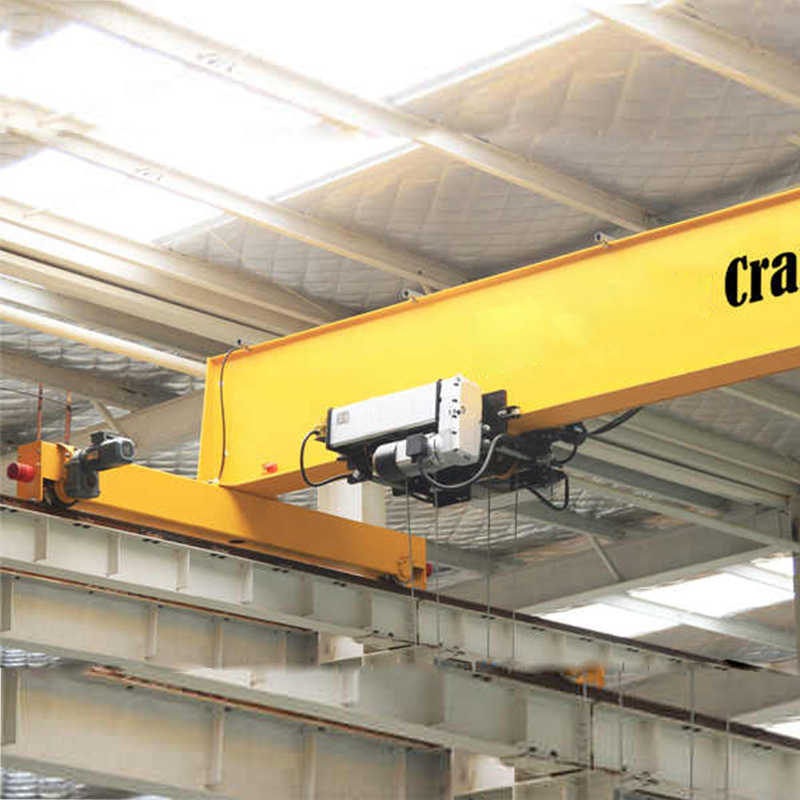

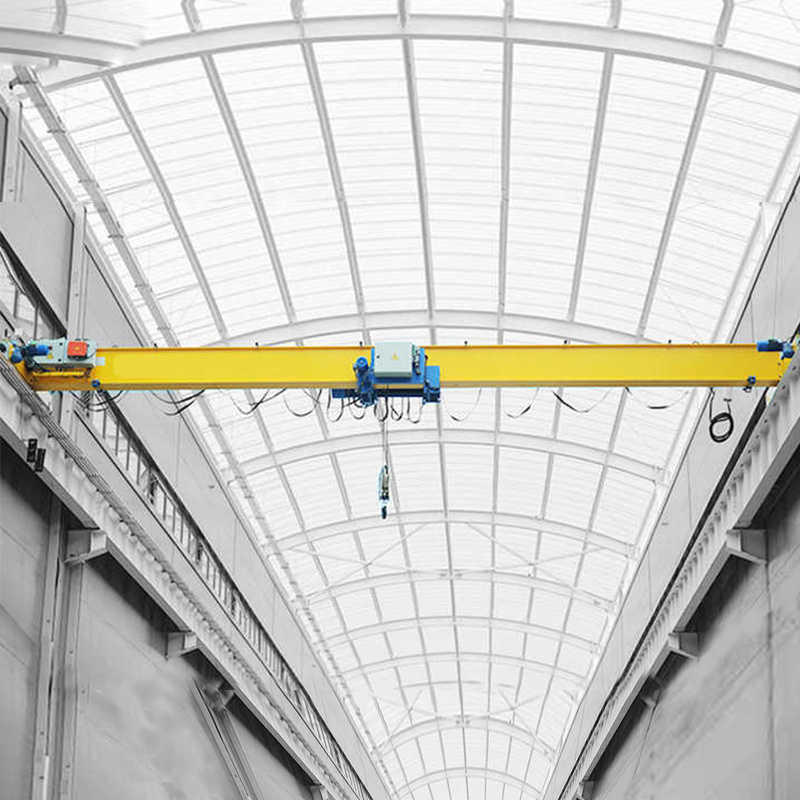

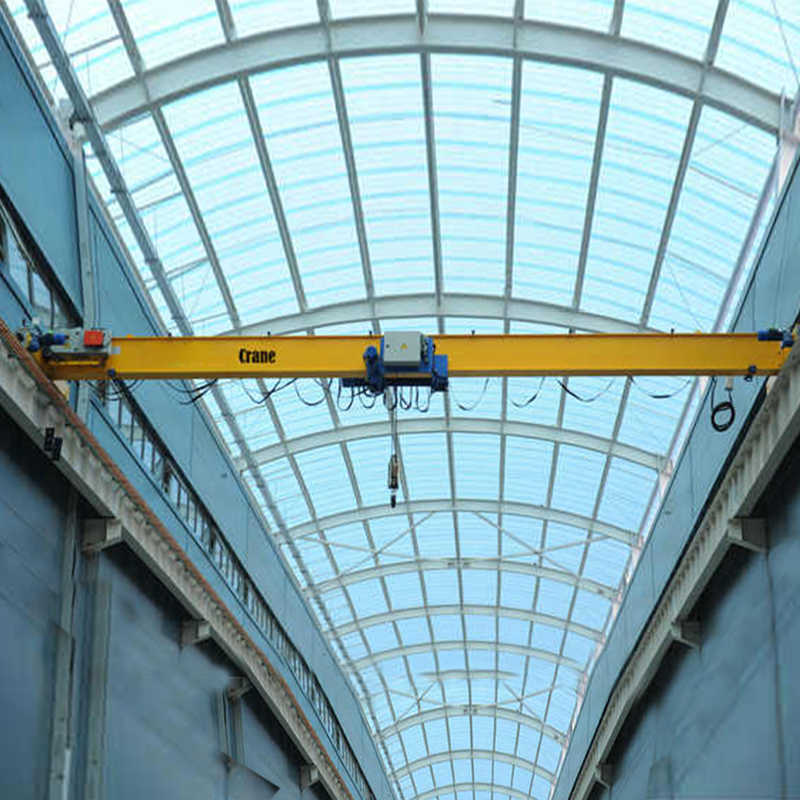

Factory Price Single Beam Electric Overhead Crane 5 Ton to 20 Ton Models

Product Description

European single beam electric bridge crane 1-20 tons CE ISO certification

Single beam European bridge crane:

1.The HD European Standard Single
Beam  Bridge Crane is a new type of crane
designed for low workshop and high
lifting height requirements.

2.It has the advantages of strong rigidity, light weight, and outstanding     structural design, which can effectively save factory space
   and investment.

3. Its technology is advanced, and its design is based on international

  standards:

4. DIN (Germany), FEM (Europe), and ISO (International).

5.    Its unique and special travel structure is your best choice.


1.  HD electric single beam overhead crane can be widely used to handle materials in workshops
     and warehouses of many industries.
2.  For example, mechanical manufacturing. Warehouse. Logistics. Food.
3.  Material handling situation in paper and electronic industry workshops.
4.  The lifting hoist adopts M5 working class, which doubles the lifting speed.
5.  Motors with ABM German brand motors.
6.  The travel motor uses SEW European brand in a motor gear motor.
7.  Crossing and long-distance driving are variable driving speeds.
8.  The electrical components are made of Siemens brand.
9.  The protection level is IP 54 high level.
10.Under ISO standards, work categories can reach A5/M5.


• Characteristics of bridge crane:
  1) Single welded box girder
  2) DIN/FEM standard deflection
  3) Full length CNC cutting of the complete web plate with high deflection accuracy
  4) High quality automatic welding and non-destructive testing
  5) Shot blasting Sa2.5 of the complete beam after welding, stress release
  6) Installation of high-pressure bolts between the main beam and legs, ensuring a lifelong safe connection
  7) Compact gear motor drive, stepless control, hardened gear, safety disc brake IP55
  8) High protection level IP55, F level, 40% version
  9) Excellent driving performance, stepless control, smooth movement
  10) . All elevator and crane movements are independent and can operate simultaneously.
  11) . The company's independent core technology in WHL type wire rope electric hoist.


•

•

  span	m	7.5	10.5	13.5	16.5	19.5	22.5	25.5
  capacity	t	1 ~ 32.5T
  total weight	kg	1781~12086
  Weight of handcart	kg	405~740
  Maximum wheel load	kn	13.5~90.94
  Travel Railway		P24 ~ P43
  lifting speed	m/min	0.8/5	0.8/5	0.8/5	0.8/5	0.8/5	0.8/5	0.8/5
  Lifting height	m	≥ 6	≥ 6	≥ 6	≥ 6	≥ 6	≥ 6	≥ 6
  total power	kW	4.31	4.31	4.31	4.31	4.67	4.67	4.67
  Crane speed	m/min	3-30	3-30	3-30	3-30	3-30	3-30	3-30
  Hand cart speed	m/min	2-20	2-20	2-20	2-20	2-20	2-20	2-20
  job responsibilities		M5/A5

•



Certificate

Product line



1. Adopt Siemens PLC and Siemens frequency         converter for control and drive.
   Meanwhile, Profinet is used for communication   between PLC and frequency converter.
   It is equipped with communication detection               function,  which can detect the working status
   of each site in real time.

2. A monitoring system has been installed to
   monitor the working status of the
   crane in real-time.

3. The lifting mechanism of the ladle crane adopts
  a redundant system design to ensure the safety
  and reliability of lifting liquid metal.

    The product meets the technical requirements of various types of hydraulic cranes, including general bridge cranes, gantry cranes, eot cranes, general gantry cranes, rubber tire and rail mounted container gantry cranes, four-bar gantry cranes, grab bucket cranes, boom cranes, marine deck cranes, electric hoists, electric winches, mobile platforms, etc., in industries such as factories, workshops, ports, mines, waste disposal, cargo dispersion, petrochemicals, aerospace, and military.



Ask. What information should I provide when querying?
More details or drawings, better.
Answer: Improving ability B: Span C: Height improvement D: Power supply or other special products you give us would be greatly appreciated.
Ask. How many operational methods are there for my selection?
Standard operating method:
Answer: Suspended controller with buttons. B: Remote control with buttons
C: Cabin (spacecraft seat) control with joystick. Choose any type you like.
Ask. Can this type work in hazardous environments?
Answer: No problem. We can customize for you, acid resistant or explosion-proof, no problem.
Ask. Can you provide serious lifting tools?
Answer: Of course, we can provide any lifting tools according to your requirements, such as lifting straps, lifting clamps, grab buckets, magnets, or other special offers!
Ask. How do we install a crane?
Answer: Our senior engineers can provide you with installation guide services and training. In addition, our best salespeople can visit your country.
Ask. Safety device
Answer: Overload limiter, limit switch (lift and travel), interlock protection device.

FAQ

Q: What is your delivery time?
A: The delivery time is around 30 working days. In peak season, the production time would take longer.

Q: What is the payment term?
A: Normally we accept, TT, LC at sight.

Q: What color can I choose?
A: There are Yellow, Red, Blue, Black, White, Orange, and Green to choose. We can customize the color according to your color number.

Q: Can I see the production progress after order?
A: Yes, during production, we can have video call and we could take photos/videos for your reference.

Q:What certification do you have?
A:Our company has passed ISO 9001:2008 and all of the product have CE certification.

Q: What kind of service can I get from you if I buy? How can I get parts?
A: We have 1 year warranty for each machine.Within 1 year warranty, if any parts failure caused by quality issues, the new parts would be sent to you free of charge within 7 working days. We have professional after sales department to support for you at any time.

Q:How can I get the best price?
A:Price is the most concerning problem of every customer,if you want to know the price.We need to know your detailed requirements.
