Heavy Duty MG Type Double Beam Gantry Crane 30 to 500 Tons Capacity

Product Description

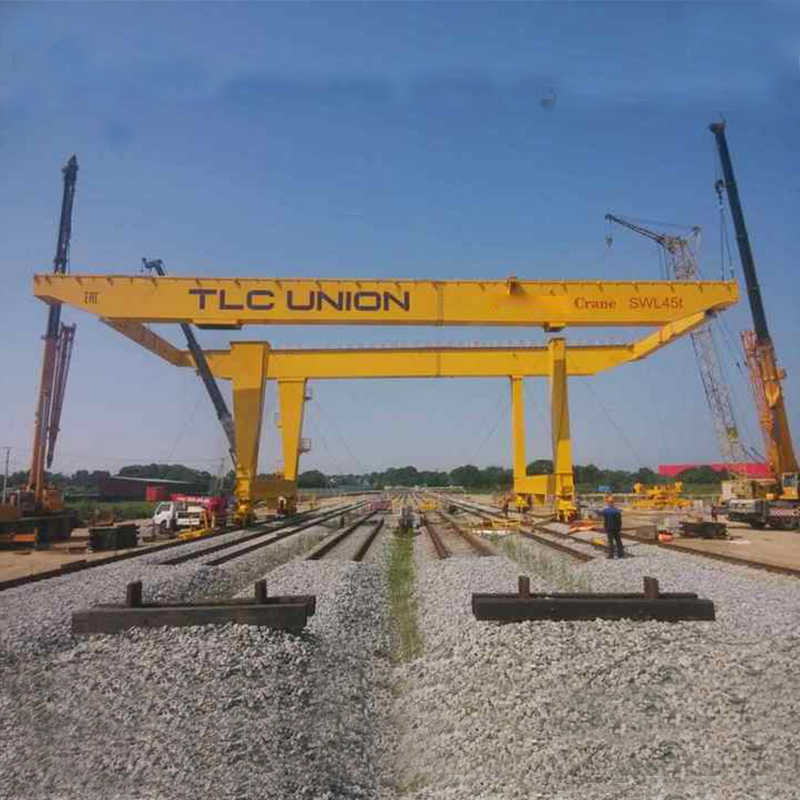

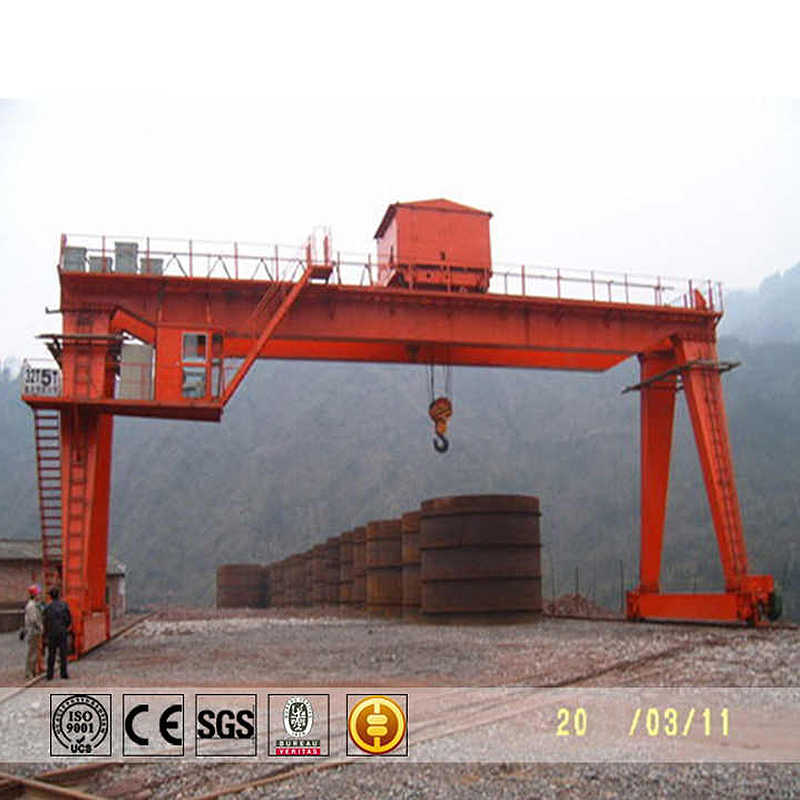

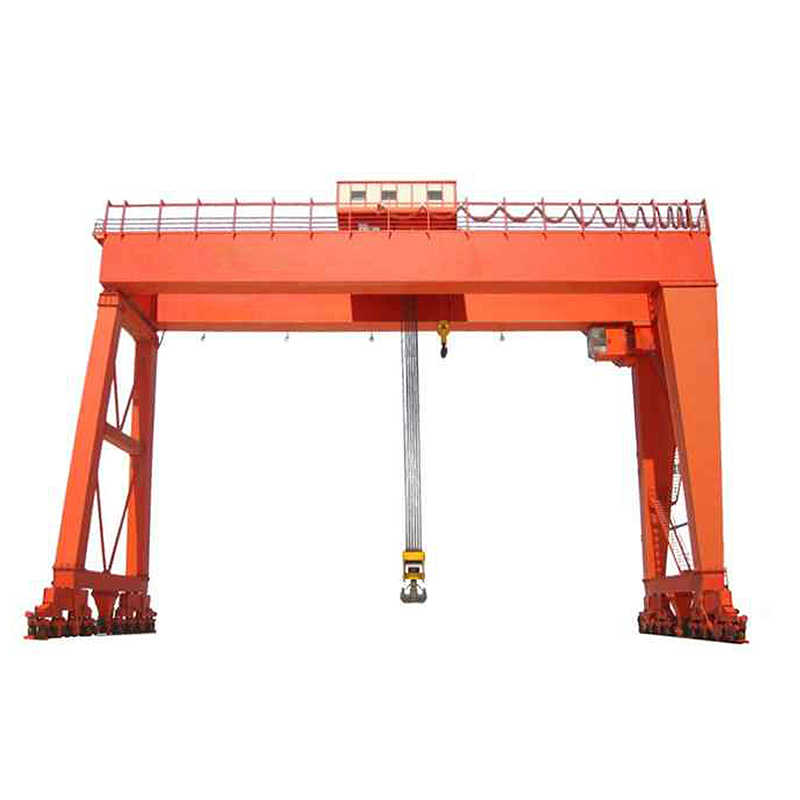

MG type double beam gantry crane ranging from 30 tons to 500 tons

Characteristics of gantry crane:

1) Reasonable structure
2) Good performance
3) Smooth start and stop
4) Safe and reliable travel
5) Low noise, spacious cabin, and good visibility
6) Easy maintenance, excellent interchangeability of parts and components
7) Energy saving specifications

• 1.The MG type double beam gantry crane consists of a gantry, a crane, a trolley walking mechanism, a cab, and an electronic control system. The gantry is a box shaped structure, with tracks on the side of each beam.

• The legs are divided into type A and type U according to user requirements. The control methods can be ground control, remote control, cabin control, or a combination of both.

• There are adjustable seats, insulation pads on the floor, tempered glass windows, fire extinguishers, electric fans, air conditioning and other auxiliary equipment in the cab. Sound alarms and walkie talkies can be provided according to user requirements.

• This double beam gantry crane has a beautiful design and is durable.

• It is widely used in outdoor warehouses and can also be used indoors.

• However, please let us know the situation in your workshop.

• Just tell us your requirements, and we can design the most suitable crane for you.

•

•

  capacity			T	3	5	10	16
  span			m	12,16,20,24,30
  Operation method				Suspension line with button/cabin/remote control
  speed	improve			8 ,8/0.8	8,8/0.8	7,7/0.7	3.5
  	Cross travel		m/min	20	20	20	20
  	Long distance travel	ground		20	20	20	20
  		passenger cabin		20, 30,45	20, 30,40	30,40	30,40
  motor	improve		Type/kw	ZD41-4/4.5	ZD141-4/7.5 ZDS10.8/4.5	ZD151-4/13 ZDS11.5/4.5	ZD151-4/13
  				ZDS1-4/0.4/4.5
  	Cross travel			ZDY12-4/0.4	ZDY121-4/0.8	ZDY21-4/0.8 × 2	ZDY121-4/0.8 × 2
  Electric hoist			model	CD1/MD1	CD1/MD1	CD1/MD1	CD1
  Lifting height			m	6,9,12,18,24,30
  job responsibilities				A3
  power supply				380V 60HZ three-phase AC power (according to your needs)

• The product meets the technical requirements of various types of hydraulic cranes, including general bridge cranes, gantry cranes, eot cranes, general gantry cranes, rubber tire and rail mounted container gantry cranes, four-bar gantry cranes, grab bucket cranes, boom cranes, marine deck cranes, electric hoists, electric winches, mobile platforms, etc., in industries such as factories, workshops, ports, mines, waste disposal, cargo dispersion, petrochemicals, aerospace, and military.

• We have developed products such as lifting machinery, port machinery, mining machinery, electric hoists, electric winches, parking equipment, and special robots,

Certificate

Product line



Safety device:

1. Overload protection,

2. Main lifting motor with thermal protection,

3. Hook with latch,rubber bumper Protective      grounding,

4. Crane switch and travel end switch,

5. When any danger occurs, the emergency switch     can stop all movements,

6. Test the characteristics of the sub components before assembly.

7. All cranes must be pre assembled and tested before

8. leaving the factory, and provide testing certification.

Ask. What information should I provide when querying?
More details or drawings, better.
Answer: Improving ability B: Span C: Height improvement D: Power supply or other special products you give us would be greatly appreciated.
Ask. How many operational methods are there for my selection?
Standard operating method:
Answer: Suspended controller with buttons. B: Remote control with buttons
C: Cabin (spacecraft seat) control with joystick. Choose any type you like.
Ask. Can this type work in hazardous environments?
Answer: No problem. We can customize for you, acid resistant or explosion-proof, no problem.
Ask. Can you provide serious lifting tools?
Answer: Of course, we can provide any lifting tools according to your requirements, such as lifting straps, lifting clamps, grab buckets, magnets, or other special offers!
Ask. How do we install a crane?
Answer: Our senior engineers can provide you with installation guide services and training. In addition, our best salespeople can visit your country.
Ask. Safety device
Answer: Overload limiter, limit switch (lift and travel), interlock protection device.

FAQ

Q: What is your delivery time?
A: The delivery time is around 30 working days. In peak season, the production time would take longer.

Q: What is the payment term?
A: Normally we accept, TT, LC at sight.

Q: What color can I choose?
A: There are Yellow, Red, Blue, Black, White, Orange, and Green to choose. We can customize the color according to your color number.

Q: Can I see the production progress after order?
A: Yes, during production, we can have video call and we could take photos/videos for your reference.

Q:What certification do you have?
A:Our company has passed ISO 9001:2008 and all of the product have CE certification.

Q: What kind of service can I get from you if I buy? How can I get parts?
A: We have 1 year warranty for each machine.Within 1 year warranty, if any parts failure caused by quality issues, the new parts would be sent to you free of charge within 7 working days. We have professional after sales department to support for you at any time.

Q:How can I get the best price?
A:Price is the most concerning problem of every customer,if you want to know the price.We need to know your detailed requirements.
