Double Beam Overhead Foundry Crane - High-Temperature Resistant Design

Heavy duty double beam overhead bridge walking metallurgical casting crane

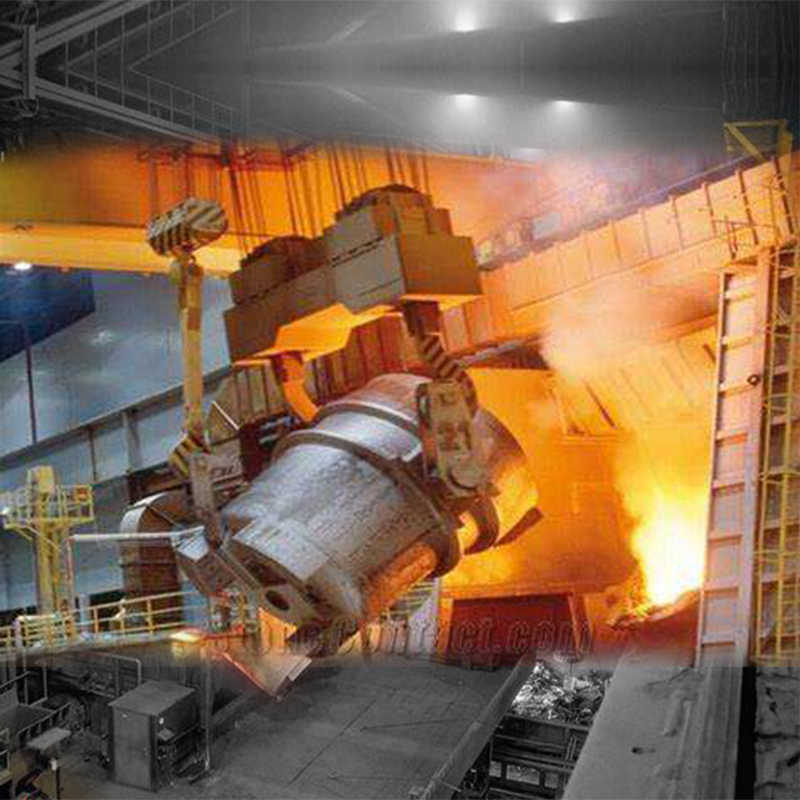

1.  The QDY double beam bridge loading crane is one of the main equipment in steel manufacturing continuous casting technology. Mainly used for smelting metal transport, casting, and hot metal loading.

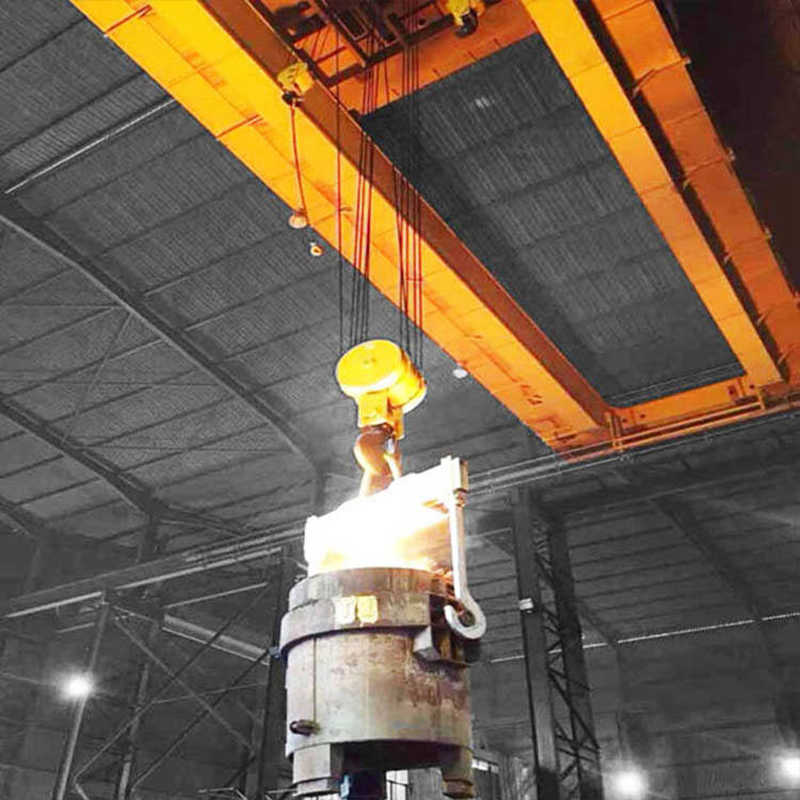

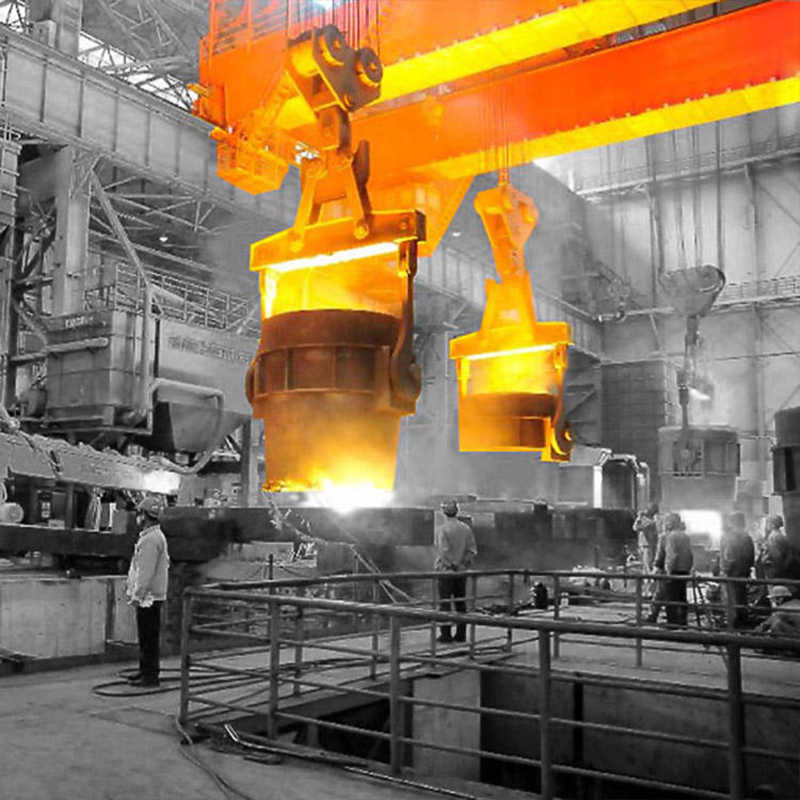

2.  The QDY double beam casting crane consists of a boxed bridge frame, a hook, a crane walking mechanism, and an electrical system. The main hook uses a load tool as the lifting device to lift the ladle, and the auxiliary hook cooperates with the main hook to complete the pouring of molten steel and steel slag, as well as other auxiliary lifting.

• 1. Adopt Siemens PLC and Siemens frequency converter for control and drive. Meanwhile, Profinet is used for communication between PLC and frequency converter. It is equipped with communication detection function, which can detect the working status of each site in real time.
  2. A monitoring system has been installed to monitor the working status of the crane in real-time.
  3. The lifting mechanism of the ladle crane adopts a redundant system design to ensure the safety and reliability of lifting liquid metal.

•

  Product Name

  Double Girder Electromagnetic Overhead Bridge Crane

  Color

  Customer Request

  Lifting speed

  5-15M/MIN

  Capacity

  5~200 ton

  MOQ

  1 Set

  Power supply

  220V/380V/400V/410V/415V/440V 50Hz 3P

  Packing

  Standard Package

  Certification

  CE ISO Certificate

• 4. It has wireless transmission and electronic scales, which can transmit the weight of liquid metal in real time.
  5. Each crane is designed with an electrical room, which is equipped with an electric fan to ensure the safe and reliable operation of electrical equipment.
  The lifting mechanism of the 6.250t ladle crane adopts a planetary reducer structure. If an electric motor malfunctions, it can still complete the lifting work in a short period of time.
  7. The mother child car has achieved unmanned automatic bag lifting, saving costs.
  8. The overall design is lightweight and compact in structure.
  9. Low height, light weight, small hook limit, and large working range.
  10. High quality parts, durable, safe and reliable.
  11. Less maintenance and repair costs.
  12. The total power of the crane is small and the energy consumption is low.
  13. Frequency control, smooth lifting and low impact

• The traveling mechanism and main electrical equipment of the QDY double beam bridge type ladle crane are installed in a box girder, which is insulated with rock wool and equipped with an air cooler inside. In order to reduce the thermal radiation of molten structural components, thermal baffles are installed along the span direction at the bottom of the beam.

Certificate

Product line



1. Adopt Siemens PLC and Siemens frequency         converter for control and drive.
   Meanwhile, Profinet is used for communication   between PLC and frequency converter.
   It is equipped with communication detection               function,  which can detect the working status
   of each site in real time.

2. A monitoring system has been installed to
   monitor the working status of the
   crane in real-time.

3. The lifting mechanism of the ladle crane adopts
  a redundant system design to ensure the safety
  and reliability of lifting liquid metal.

    The product meets the technical requirements of various types of hydraulic cranes, including general bridge cranes, gantry cranes, eot cranes, general gantry cranes, rubber tire and rail mounted container gantry cranes, four-bar gantry cranes, grab bucket cranes, boom cranes, marine deck cranes, electric hoists, electric winches, mobile platforms, etc., in industries such as factories, workshops, ports, mines, waste disposal, cargo dispersion, petrochemicals, aerospace, and military.



Ask. What information should I provide when querying?
More details or drawings, better.
Answer: Improving ability B: Span C: Height improvement D: Power supply or other special products you give us would be greatly appreciated.
Ask. How many operational methods are there for my selection?
Standard operating method:
Answer: Suspended controller with buttons. B: Remote control with buttons
C: Cabin (spacecraft seat) control with joystick. Choose any type you like.
Ask. Can this type work in hazardous environments?
Answer: No problem. We can customize for you, acid resistant or explosion-proof, no problem.
Ask. Can you provide serious lifting tools?
Answer: Of course, we can provide any lifting tools according to your requirements, such as lifting straps, lifting clamps, grab buckets, magnets, or other special offers!
Ask. How do we install a crane?
Answer: Our senior engineers can provide you with installation guide services and training. In addition, our best salespeople can visit your country.
Ask. Safety device
Answer: Overload limiter, limit switch (lift and travel), interlock protection device.
FAQ

Q: What is your delivery time?
A: The delivery time is around 30 working days. In peak season, the production time would take longer.

Q: What is the payment term?
A: Normally we accept, TT, LC at sight.

Q: What color can I choose?
A: There are Yellow, Red, Blue, Black, White, Orange, and Green to choose. We can customize the color according to your color number.

Q: Can I see the production progress after order?
A: Yes, during production, we can have video call and we could take photos/videos for your reference.

Q:What certification do you have?
A:Our company has passed ISO 9001:2008 and all of the product have CE certification.

Q: What kind of service can I get from you if I buy? How can I get parts?
A: We have 1 year warranty for each machine.Within 1 year warranty, if any parts failure caused by quality issues, the new parts would be sent to you free of charge within 7 working days. We have professional after sales department to support for you at any time.

Q:How can I get the best price?
A:Price is the most concerning problem of every customer,if you want to know the price.We need to know your detailed requirements.
