High-Capacity Metallurgy Bridge Crane – 140T to 180T Double Beam Design

Product Description

Casting Crane
1. Mainly consists of bridge, trolley, hook beam, crane travelling and electric part, etc.;
2. Adopt double-girder structure below 125t and four-girder structure above 125t;

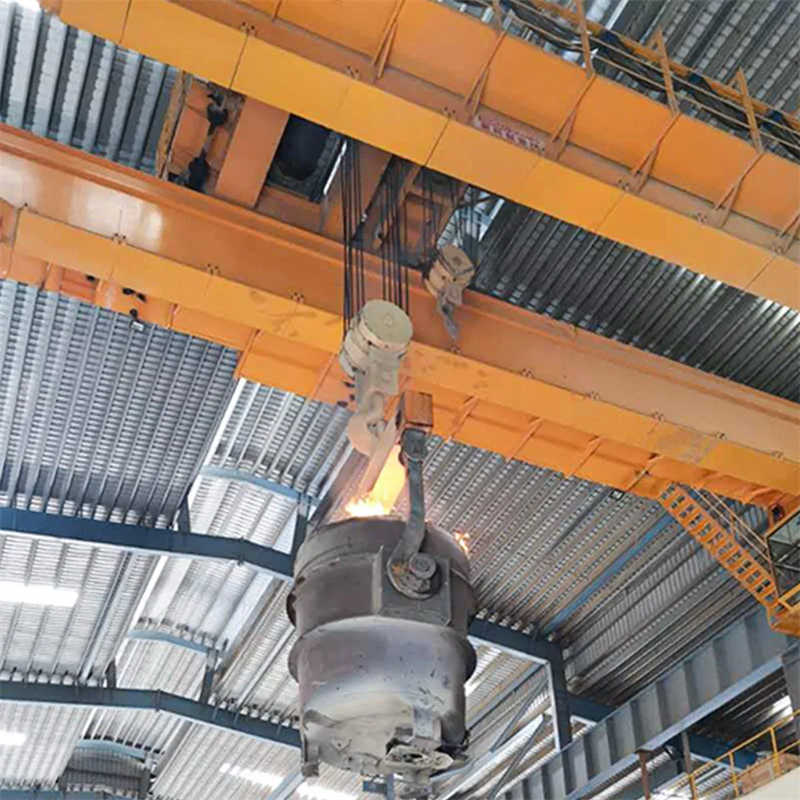

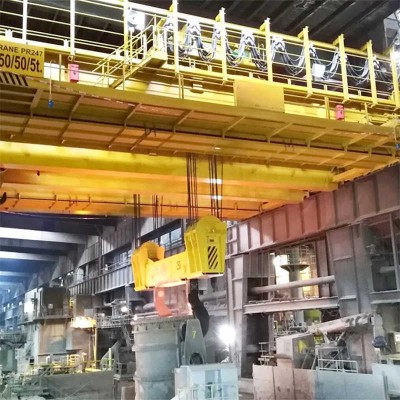

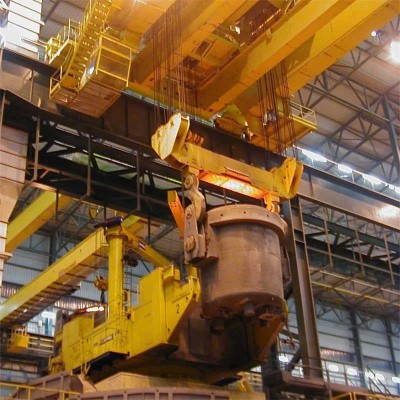

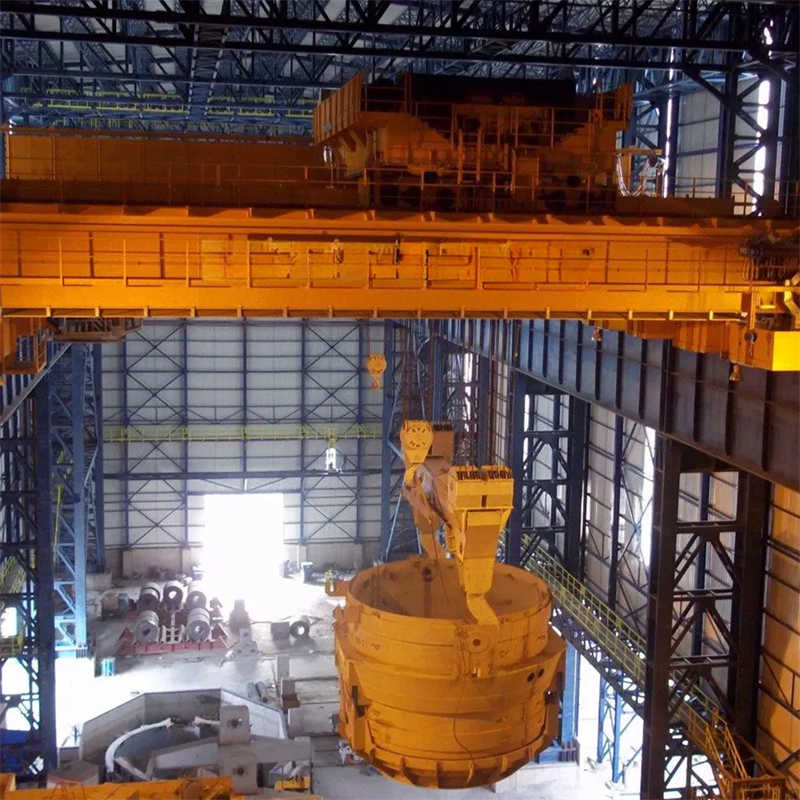

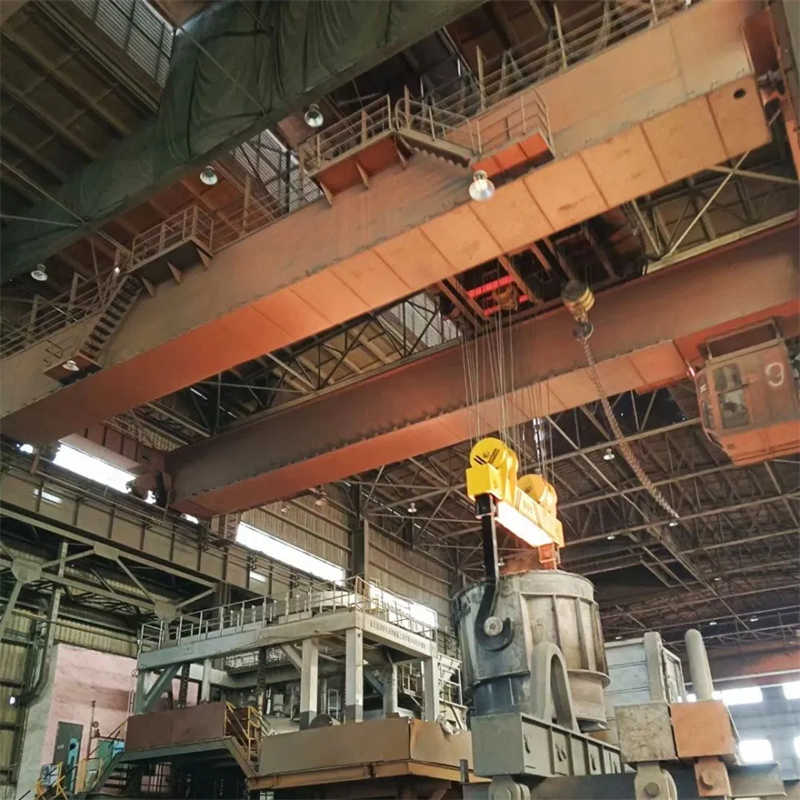

3. The main grabbing device of main hook is fixed-spacing hook girder used to lift foundry ladle;

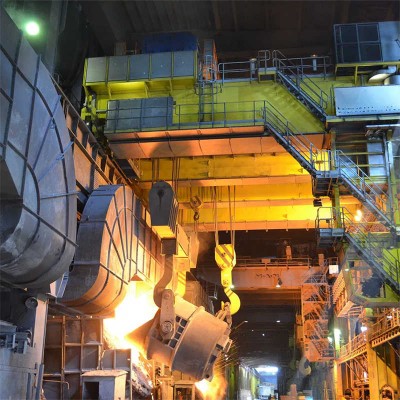

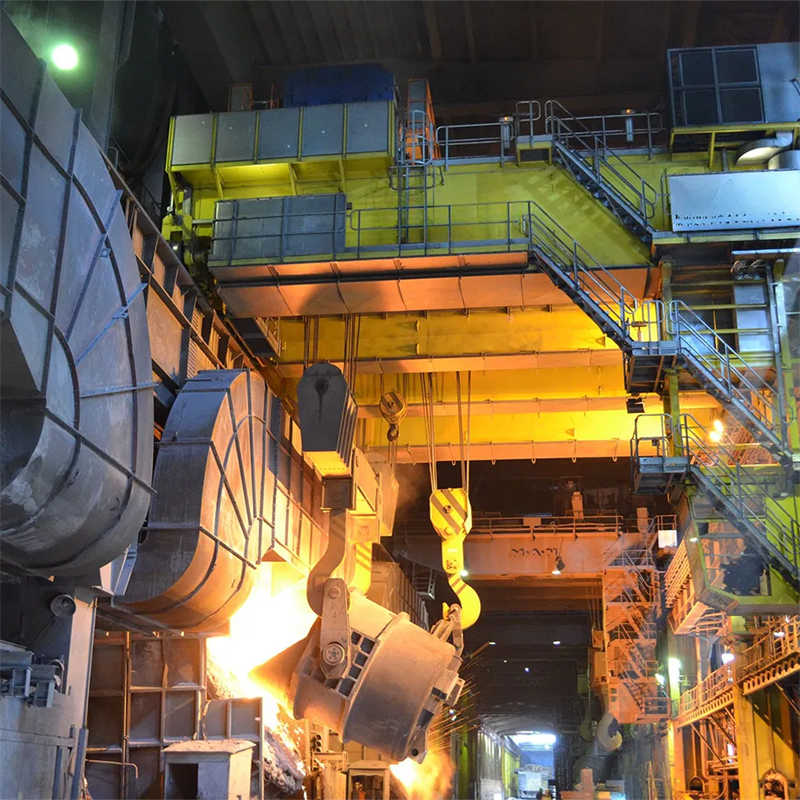

4. Auxiliary hook is used to work with main hook to dump the molten iron and do other subsidiary lifting operation;
5. Main hoisting and transportation equipment in steel mill and smelter workshop;
6, USD for transshipment and pouring of liquid metal during melting, etc;
7. Add thermal-protective coating under the main girder;
8. Ambient temperature: Below +60° C, moisture: Less than 50%;
9. Crane assembly and test accord with No. 375, 2007 document issued by AQSIQ.
Overall Feature
The machine: Novel structure, attractive appearance and good technics;
Operation: Flexible and smooth, safe and reliable
Casting Crane Mechanical Part
1. Double girder, welding box beam, camber meet national standard;
2. Adopt high quality carbon steel, Q235B or Q345B;
3. Main and end girder connected through level 10.9 high-strength bolt
4. Crane travelling mechanism adopt quadr angle drive
5. Crane travelling mechanism and main electric equipment are installed inside main girder
Casting Crane Electric Part
1. Electric room of main girder adopt rockwool thermal insulation with air cooler inside
2. Power supply of trolley adopt flat cable, smoothly sliding, overall nice
Casting Crane Safety Protection
1. Crane is equipped with special electronic scales
2. Main lifting mechanism is equipped with speed switch
3. Install collision prevention device and sound & light alarm device

Casting Crane Controlling Ways
1. Double insulating layers, close style cab operation
2. Left or right installation
3. Direction of entrance: Side, end and top.
