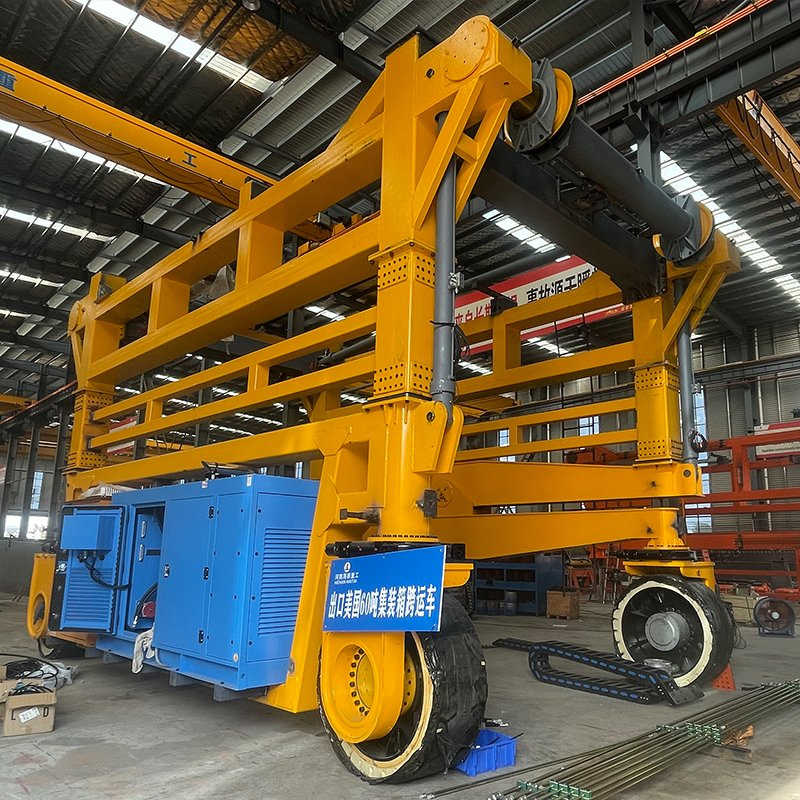

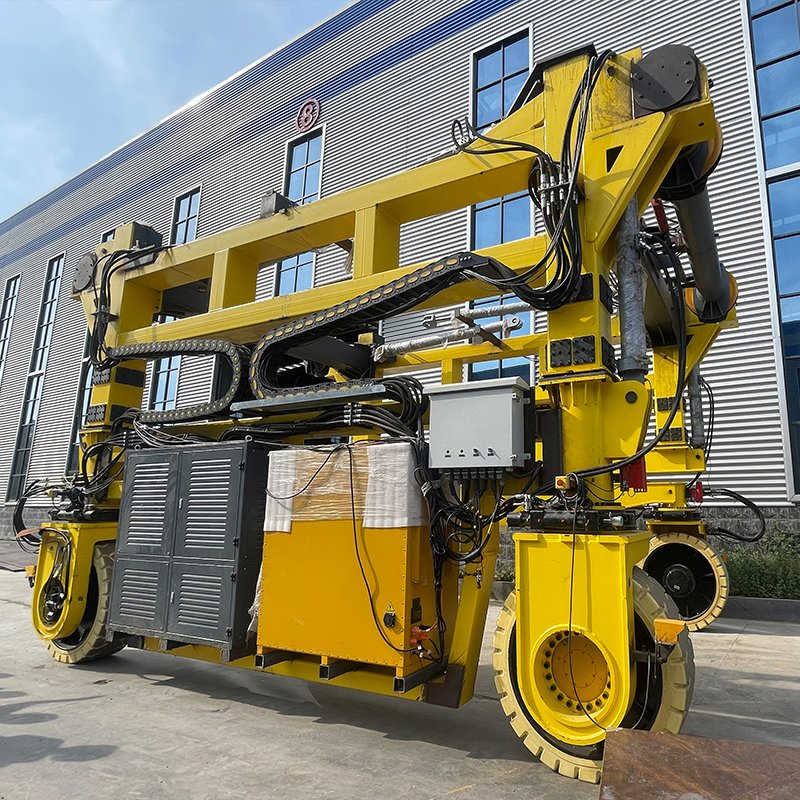

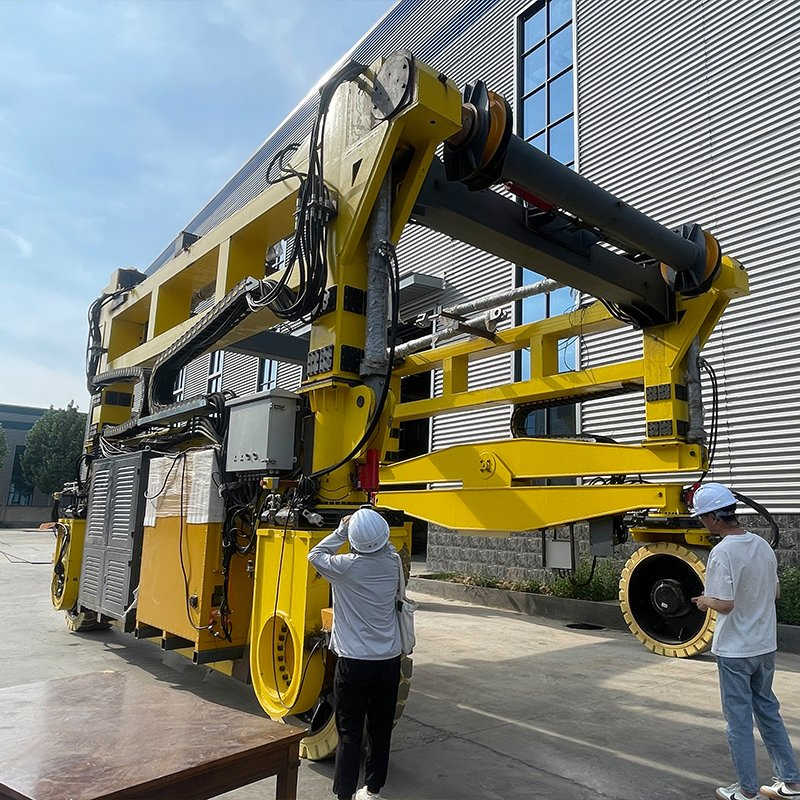

Robust Container Straddle Carrier | 60 Ton Capacity for Heavy Loads
$30000.00 1 set
Qingdao Shanghai
L/C T/T
New
STRADDLE CARRIERS
CE, ISO9001
Sinoko
General manufacturing
Product Description
45 Ton Adjustable Rubber Tyre Mobile Container Gantry Crane price
Straddle Carrier adopts advanced sensing and monitoring systems, which can independently complete the automatic identification, positioning, movement, and loading and unloading of heavy containers. It has the characteristics of high lifting synchronization accuracy, stepless speed adjustment, and strong overload capacity, which can improve the efficiency of logistics operations. Compared with the traditional tire crane with a climbing slope of 3%, the new generation of straddle carriers can achieve a full load climbing slope of 10%, with strong capabilities!
Related products
High efficiency
Reasonable design, smooth operation, can quickly and accurately move heavy objects from one position to another, greatly improving work efficiency.
Left Rear
simple maintenance
Each component is relatively independent, easy to maintain and replace, greatly reducing maintenance costs and having a longer service life.
SWL 40t
Carefully select materials
The crane has fine workmanship, reasonable design, easy maintenance, reduces maintenance costs and downtime, and has a long service life

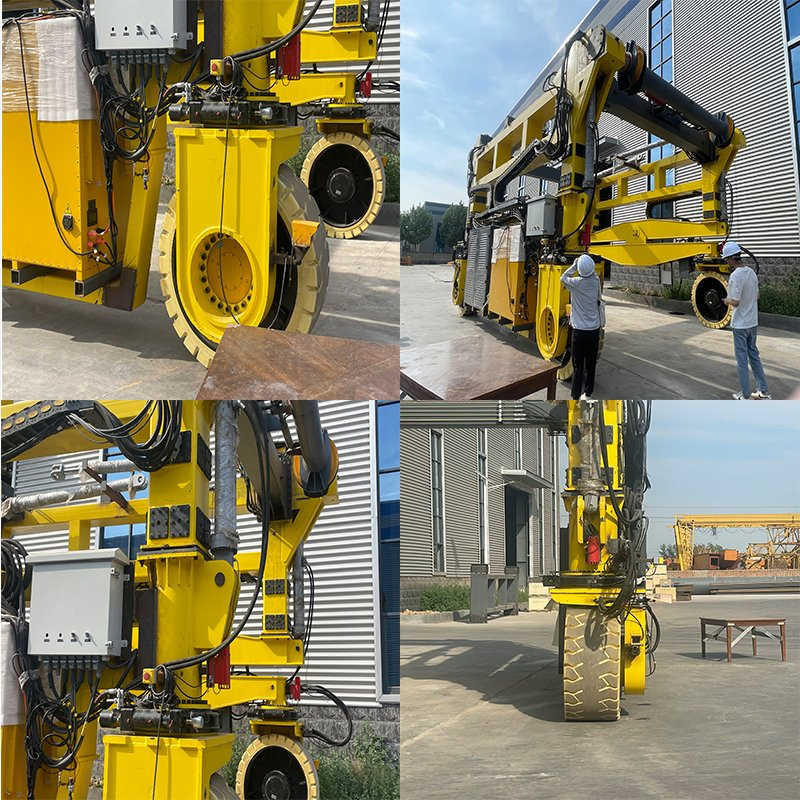

Project Case
Technical Data
| Model | MST3531EV | MST6037EV | MST8037EV |
| capacity | 35t | 60t | 80t |
| Length×Width ×Height | 7110×5100×6100mm | 9250×5700×6350mm | 1250×6000×6350mm |
| Effective inner width | 3100mm | 3750mm | 3750mm |
| wheel base | 6010mm | 6600mm | 7400mm |
| Duplex Lifting Height | 1550mm | 1750mm | 1750mm |
| Max.Liting Height(Below spreader) | 6150mm | 6300mm | 6300mm |
| Min.Ground Clearance | 230mm | 310mm | 310mm |
| Tire Qty | 4 | 4 | 8 |
| Dead weight(notcontainspreader) | 21T | 35T | 45T |
| Permanent Magnet Synchronous Motor | 85KW | 105KW | 125KW |
| Lithium Battery | Lithium Iron Phosphate | ||
| Closed Travel Pump | Hytek/PMP | ||
| Empty-load max.speed | 115m/min | 80mmin | 80m/min |
| full toad max.speed | 80mmin | 50mmin | 50m/min |
| Turning Radius | 6950mm | 8900mm | 13000mm |
| Empty -loadfull-load Gradeability | 6%/3% | ||
| Control mode | Cab(remote control optional) | ||
| Tires | solid tire | ||
| Lifing Tools | Automatic Spreader | Oversized Load Spreader | |
Packing & Delivery
1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying. 2. Main beams, end beams and trolley/winch are packed by plastic woven cloth. 3. If the size are suitable for container ship, usually by container. 4. Big size, usually by bulk ship or by container after truncation. 5. Transport ways are based on reducing cost & keep safety.
