Mobile Steel Gantry Crane 0.5-5 Ton Capacity 3-5m Span Easy Relocate

Mini mobile lifting small portable gantry crane is manufactured for lifting equipment, loading and unloading of the warehouse, maintaining heavy-duty equipment, and transporting materials, applicable for automotive, trucking, manufacturing, loading docks, aircraft, marine, warehouses or maintenance.

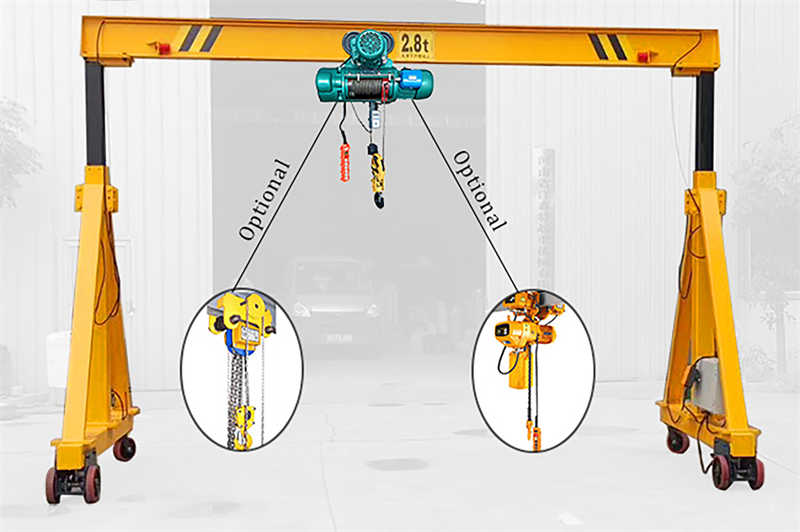

The best advantage of the crane is Omni-directional movability, fast assembly, small volume, and can be moved to another area only with a minibar. Capacity is 0.5t-10t, span is 12m. The brake-bearing universal wheel can move on the ground, be used together with an electric hoist, chain block, or monorail trolley, realizing crane mechanization, which can reduce human power, production costs, and improve work efficiency.

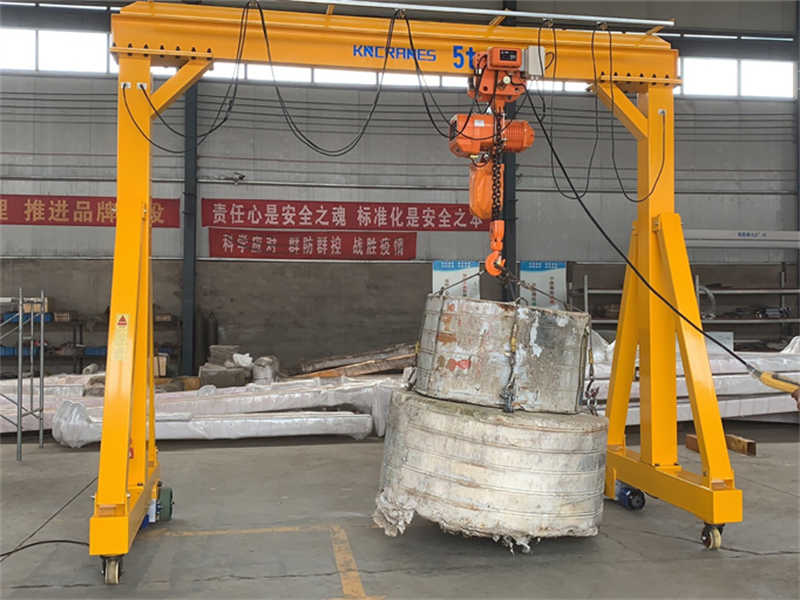

Portable gantry cranes are easy to move in your factory area, assemble and disassemble for relocation. To exactly fit your requirements, we also offer our portable gantry cranes in custom sizes.

Light type mobile steel gantry crane is suitable for different light-duty work applications such as warehouses, workshops, auto repair shops, vessels, laboratories for lightweight material handling, and limited working space.

Technical Data

Features

• Select electric trolley assembly can realize trackless weight-bearing and greatly improve the work efficiency, steerable.

• Easy operation, wireless controller available

• Move under load, smooth starting and stopping

• Every steel tube is detachable, disassembly and assembly are easy

• Easy operation control by pendent controller with push buttons or wireless controller, control the gantry moved front and back, the hoist traveling left and right, lift up and down.

• Portable design allows for relocation for use in more than one facility or work area.

Design

1. Alignment of precision parts and welded components. Easy operation, stable performance and long service life.

2. We only use standard quality I-beams, and product quality is guaranteed.

3. All nuts and bolts are made of 8.8 grade high strength steel with corrosion resistant lacquer to enhance product life.

4. All of portrable gantry cranes use heavy-duty casters for long product life while providing smooth rolling performance. Even on rough floors. The same does not affect the use of the floor.

Various Portable Gantry Crane

Image	No. Models	Capacitie	Spans	Heights

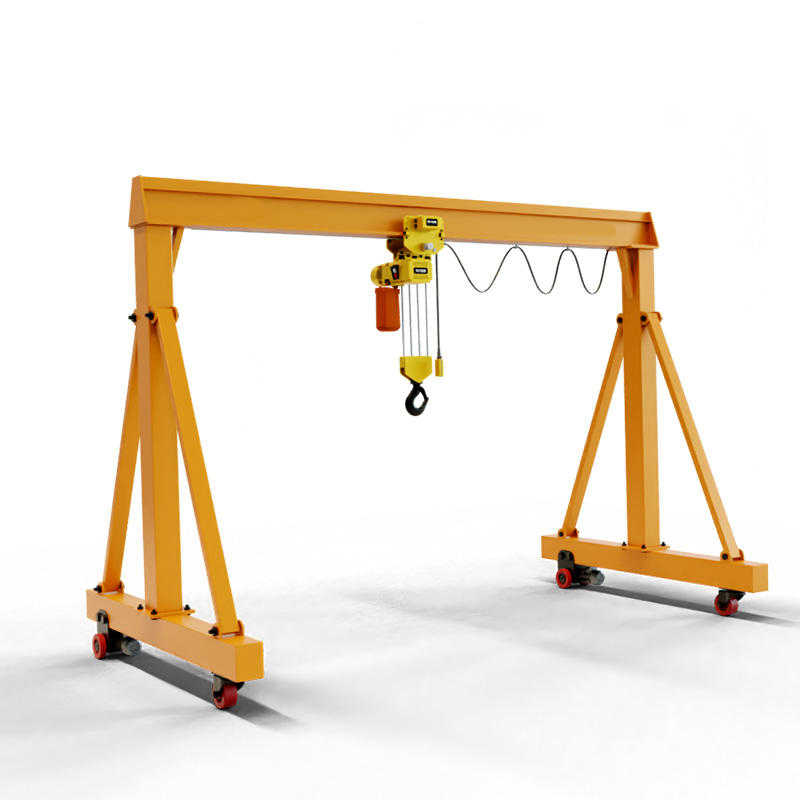

	PT1 Fixed Gantry Crane Fixed height and span, manually movable, easy to install and dismantle.	500kg-20ton	10m	10m
	PT2-1 Adjustable Height Gantry Crane Adjustable in different levels, manually movable, easy to install and dismantle.	500kg-10ton	12m	12m
	PT2-2 Adjustable Height Gantry Crane Adjustable height as needed, manually movable, easy to install and dismantle.	500kg-10ton	10m	12m

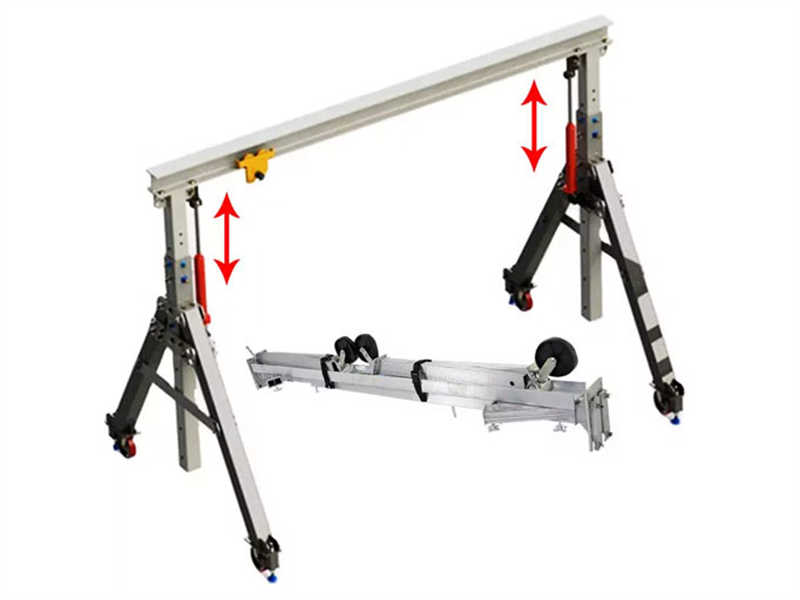

	PT2-3 Portable Gantry Crane Quick assembly, height adjustable with manual push rods, lightweight.	500kg-1ton	5m	5m
	PT2-4 Motorized Gantry Crane Electrically operated lifting, adjustable to any height, capable of lifting heavy loads.	500kg-20ton	12m	12m
	PT3 Trackless Gantry Crane Rail-free electric movement, height can be fixed or adjustable according to customer needs (winch lifting, turbine lifting, and electric lifting).	500kg-20ton	10m	15m
	PT4 Rail-mounted Gantry Crane Rail-mounted electric movement, height can be fixed or adjustable according to customer needs (winch lifting, turbine lifting, and electric lifting), capable of lifting heavy loads.	500kg-20ton	10m	15m
	LT Aluminum Gantry Crane Lightweight, easy to install and dismantle, available in three types, adjustable in height and span according to needs.	100kg-5ton	8m	8m

Portable gantry crane utilizes our patented welding design, 8.8-grade steel, corrosion-resistant aluminum, and plated bolts, pins, and hardware. These A-frame cranes, lifts, and hoists are exceptionally sturdy, stable, and portable, making them perfect for lifting operations in a variety of environments, from automotive garages and workshops to warehouses.

Applications Include:

• Lifting components in auto repair shops and maintenance workshops.

• Lifting equipment and materials in laboratories.

• Lifting and decorating with stone materials.

• Lifting small boats and aircraft.

• Handling various precision products.

• Maritime applications, from ships to aerospace and military environments.

The cranes are quick and easy to assemble, disassemble, transport, and store.
