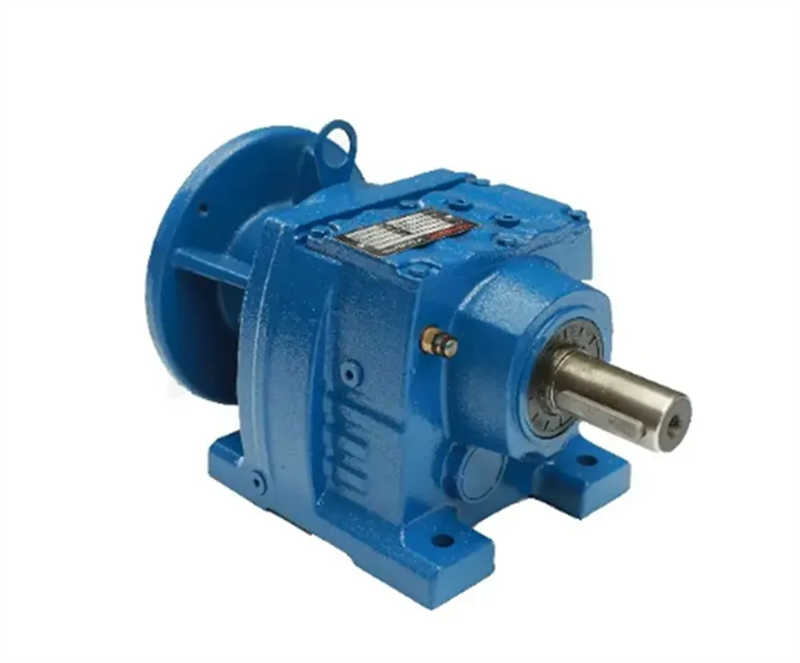

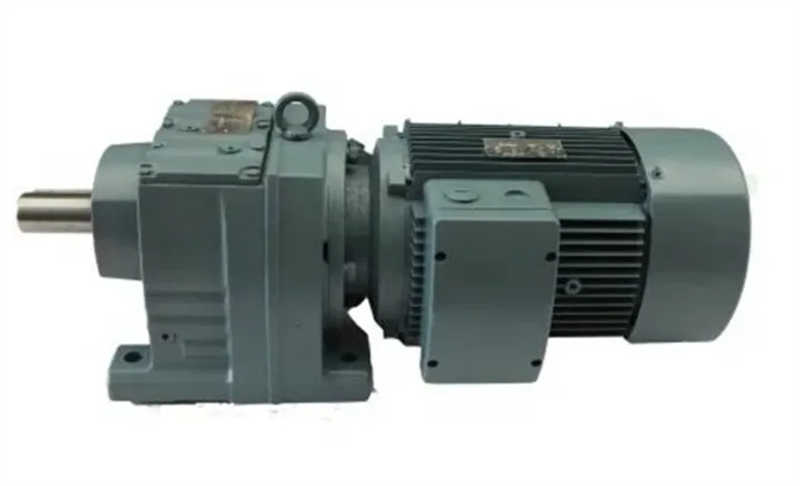

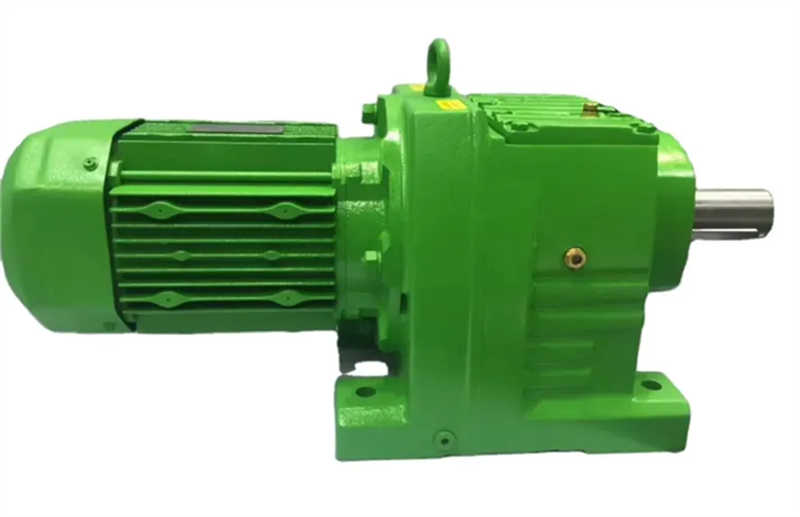

Reliable Precision-Machined Speed Reducer with Cast Iron Housing
$66.00 10 set
Qingdao Shanghai
L/C T/T
New
R
CE, ISO9001
Tanda
General manufacturing
Electric Motor Speed Reducer
Product Range:
Our product portfolio covers a wide range of power transmission and energy solutions, including:
Generators: Wind Generators, Permanent Magnet Generators, Permanent Magnet Alternators
Motors: Three Phase Motors, Electric Motors (AC/DC)
Gearboxes & Speed Reducers: Industrial Gearboxes, Helical Gearboxes, Worm Gearboxes, Speed Reducers
We provide reliable and high-performance equipment for industrial automation, renewable energy, and mechanical power transmission applications.
Product Features:
1.The hardened tooth surface reducer has high space utilization, is reliable and durable, has strong overload resistance, and its maximum power can reach 132KW.
2.Low energy consumption, superior performance, reducer power up to more than 95%.
3.Less vibration, lower noise, and more energy-saving.

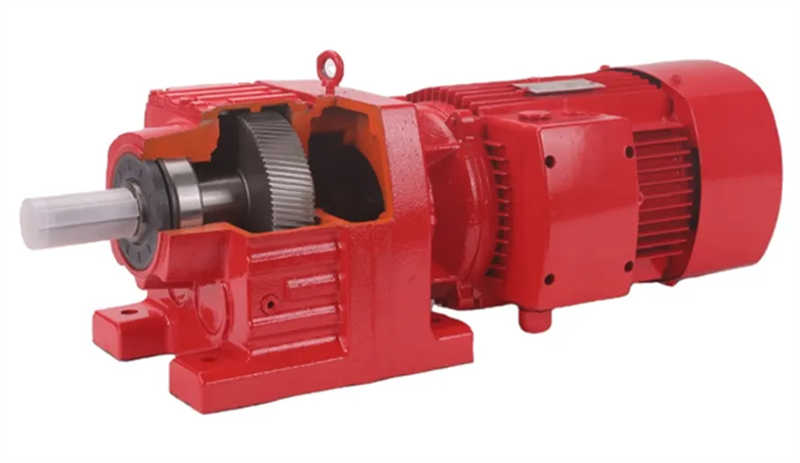

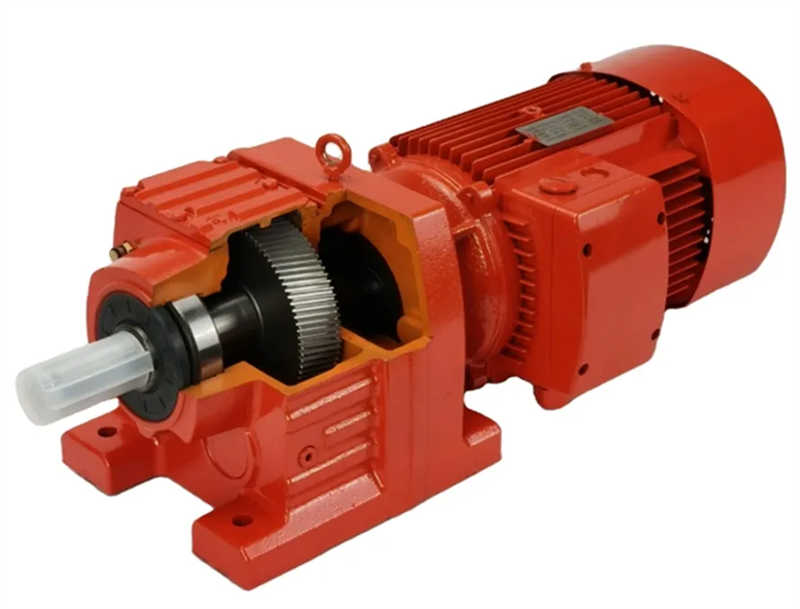

4.R series helical gear hardened surface reducer is made of high quality forged steel material, rigid cast iron housing, gear surface is subjected to high frequency heat treatment.
5.After precision machining, the shaft parallelism and positioning bearing requirements are ensured. The reducer that constitutes the helical gear transmission assembly is equipped with various types of motors, combined into mechatronics, which thoroughly guarantees the quality characteristics of the reducer motor products.
Product Performance:
1. Small bias output, compact structure, maximum use of cabinet space, secondary and tertiary in the same cabinet.
2. Adopting integral casting box, the box structure has good rigidity, which is easy to improve the strength of the shaft and the life of the bearing.
3. Installation method: foot installation, flange installation with large and small flanges for easy selection.
4. Solid shaft output, average power is 96% for the second level, 94% for the third level, and 85% for the R/R combination.
5. The RM series designed for mixing can bear large axial and radial forces.
Application scenarios:
Our motors, generators, and gearboxes are widely applied in renewable energy systems, industrial automation, and transportation equipment. They provide reliable power for wind power generation, electric vehicles, agricultural and construction machinery, as well as CNC machines, conveyors, and packaging lines. In addition, our solutions are trusted in infrastructure projects such as water treatment, mining, and backup power systems, ensuring high efficiency and stability across diverse industries.
Product Specifications
Ratio | 3.41-289.74 |
Input power | 0.12-160KW |
Output torque | 61-23200N.m |
Output speed | 5-415rpm |
Mounting type | Foot mounted, flange mounted, foot and flange mounted, single-stage foot mounted, single stage flange mounted, Flange-mounted with extended bearing hub |
Input Method | Flange input(AM), shaft input(AD), inline AC motor input, or AQA servo motor |
Brake Release | HF-manual release(lock in the brake release position), HR-manual release(autom-atic braking position) |
Thermistor | TF(Thermistor protection PTC thermisto) |
Mounting Position | M1, M2, M3, M4, M5, M6 |
Type | R17-R167 |
Output shaft dis. | 20mm, 25mm, 30mm, 35mm, 40mm, 50mm, 60mm, 70mm, 90mm, 110mm, 120mm |
Housing material | HT200 high-strength cast iron from R37,47,57,67,77,87 |
Housing material | HT250 High strength cast iron from R97 107,137,147,157,167,187 |
Heat treatment technology | carbonitriding and hardening treatment |
Efficiency | 92%-97% |
Lubricant | VG220 |
Protection Class | IP55, F class |
Main Products
Company Profile
Headquartered in Hangzhou, Tanda manages product operations, supplier recruitment, international logistics, and marketing promotion. To strengthen our overseas presence, we have established a 4,000 m² showroom and factory in Bangkok, Thailand, offering product display, warehousing, installation, and maintenance services. With years of international trade experience and a professional team, we have successfully served customers across Southeast Asia and beyond. Tanda Machinery is dedicated to becoming a trustworthy long-term partner for enterprises worldwide.
Certifications & Exhibitions
Our Customers & Our Partners
Packaging & Shipping
FAQ
1. What is your MOQ (Minimum Order Quantity)?
-We support small orders starting, Usually 1 set for machinery
2. How long is the delivery time?
-Standard models: 7–15 days.
-Customized machines: 20–45 days, depending on the complexity.
3. What warranty do you provide?
-We offer 12–24 months warranty for machines (depending on the product). Spare parts support is available at cost price even after warranty.
4. Can you customize according to our requirements?
-Yes, we can design and produce machines according to your working conditions, voltage, or special functions.
5. Do you provide installation or training?
-Yes. We provide English manuals, videos, and online support. For large projects, we can send engineers overseas (with cost covered).
6. Which countries have you exported to?
-Our products are exported to Southeast Asia, the Middle East, Europe, and South America. We also have a local team and showroom in Thailand.
7. What payment methods do you accept?
-T/T, L/C, and Western Union. For small sample orders, PayPal is acceptable.
8. How do you guarantee quality before shipment?
-100% testing before delivery. For machinery, we provide trial run videos before packing.
