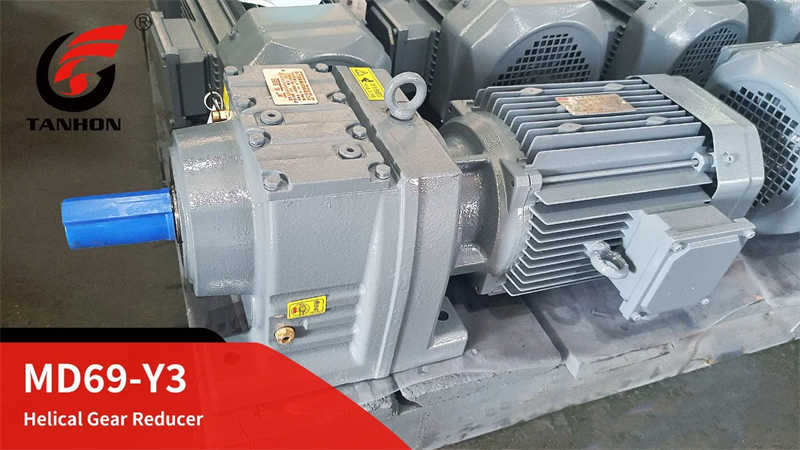

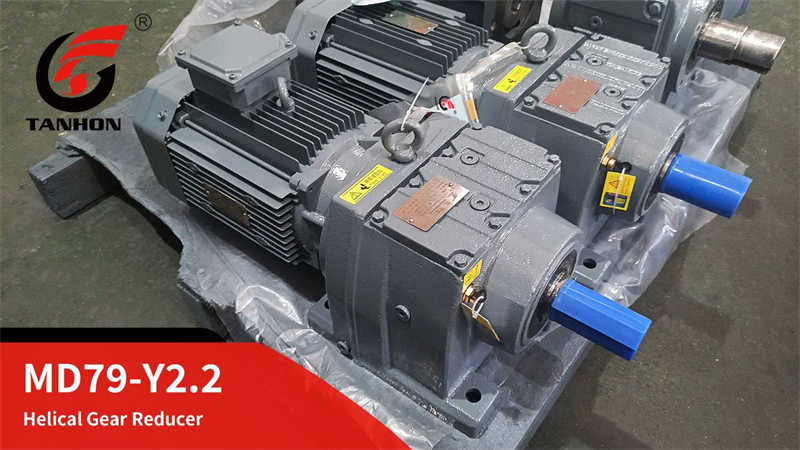

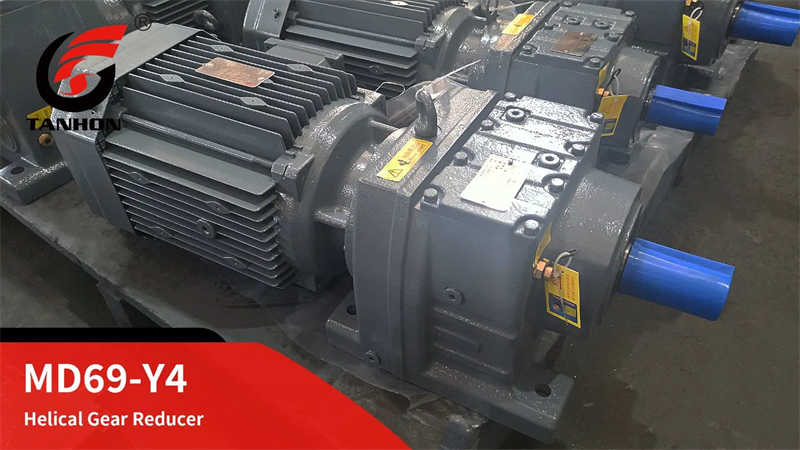

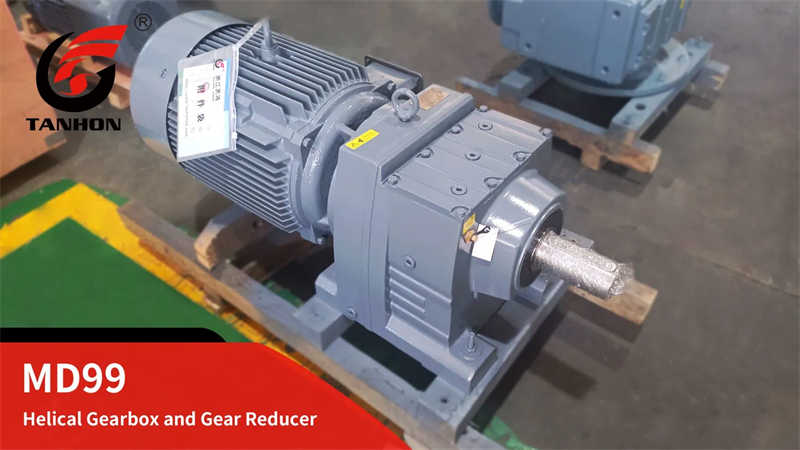

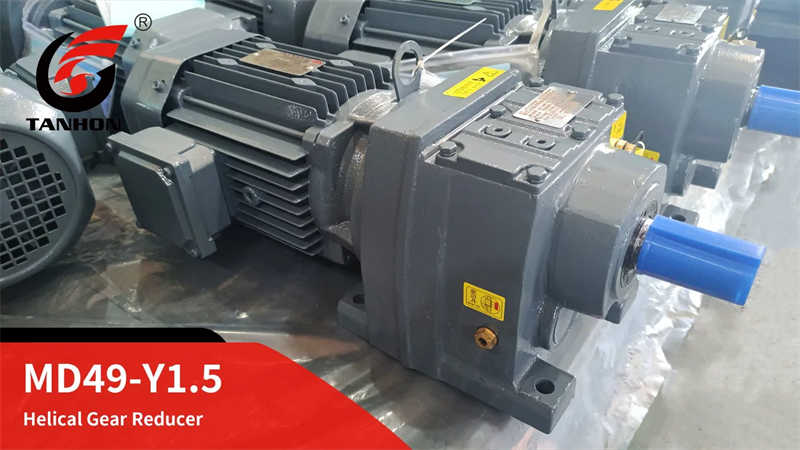

Tanhon MD Series Foot-Mounted Inline Helical Gear Unit Tanhon MD Series Foot-Mounted Inline Helical Gear Unit
Tanhon MD Series Foot-Mounted Inline Helical Gear Unit Tanhon MD Series Foot-Mounted Inline Helical Gear Unit
Tanhon MD Series Foot-Mounted Inline Helical Gear Unit Tanhon MD Series Foot-Mounted Inline Helical Gear Unit
Tanhon MD Series Foot-Mounted Inline Helical Gear Unit Tanhon MD Series Foot-Mounted Inline Helical Gear Unit
Tanhon MD Series Foot-Mounted Inline Helical Gear Unit Tanhon MD Series Foot-Mounted Inline Helical Gear Unit

Tanhon MD Series Foot-Mounted Inline Helical Gear Unit

$130.00
10 set
Qingdao Shanghai
L/C T/T
New
MD Series
CE, ISO9001
TANHON
General manufacturing
Contact Supplier
Add to Wish List
t
M3-M5
Blue,Customized
TANHON
MD Series
中国
1 Years

WHY CHOOSE US


Tanhon MD Series Inline Helical Gearbox

PRODUCT DETAILS

Tanhon MD Series Inline Helical Gearbox

The MN Series Helical Worm Gearbox and Gear Reducer are advanced and sophisticated power transmission devices that ingeniously combine the benefits of helical and worm gears. This innovative design ensures efficient power transmission with minimal energy loss and offers unmatched reliability and a compact form factor. Such attributes make these reducers an ideal power transmission solution for various industrial applications, ranging from manufacturing and logistics to chemical processing and food production. Their ability to deliver high torque, low noise operation, and versatile mounting options underscores their utility and adaptability in different operational environments.

Brand

TANHON

HS Code

8483409090

Housing Material

Ductile Iron QT400/QT600, Gray Cast Iron HT250

Gear Material

20CrMnTi

Shaft Material

40Cr

Corrosion Resistance Class

C1, C2, C3, C4, C5-I, C5-M

Warranty

12 Months

Country of Origin

China

Country of Supply

China

Main Application Industries

Agriculture, Animal Husbandry, Automotive Industry, Cement Industry, Chemical Industry, Food Industry, Lifting Industry, Mining Industry, Packaging Industry, Renewable Energy, Steel Industry, Textile Industry, Water Treatment, etc.

Model Structural Type

  • Model MN: Foot-Mounted Helical Worm Gearbox

  • Model MNF: B5 Flange-Mounted Helical Worm Gearbox

  • Model MNAF: B5 Flange-Mounted Helical Worm Gearbox

  • Model MNA: Helical Worm Gearbox with Hollow Shaft

  • Model MNAT: Helical Worm Gearbox in Torque-Arm Version with Hollow Shaft

  • Model MNAZ: B14 Flange-Mounted Helical Worm Gearbox with Hollow Shaft

  • Model MNHF: B5 Flange and Expansion Plate Installation Cylindrical Helical Worm Gearbox

  • Model MNH: Expansion Plate Installation Cylindrical Helical Worm Gearbox

  • Model MNHT: Expansion Plate Installation with Reverse Rotary Arm Fixation Cylindrical Helical Worm Gearbox

  • Model MNHZ: Flange and Expansion Plate Installation Cylindrical Helical Worm Gearbox

Technical Parameters

  • Size Type: 39/49/59/69/79/89/99/109

  • Output Torque: Up to 6000 N.m

  • Output Speed: 0.16~147 r/min

  • Input Power:  0.12~22 kW

  • Output Shaft: Parallel Key Solid Shaft, Parallel Key Hollow Shaft, Shrink Disk Hollow Shaft, Involute Splined Hollow Shaft
