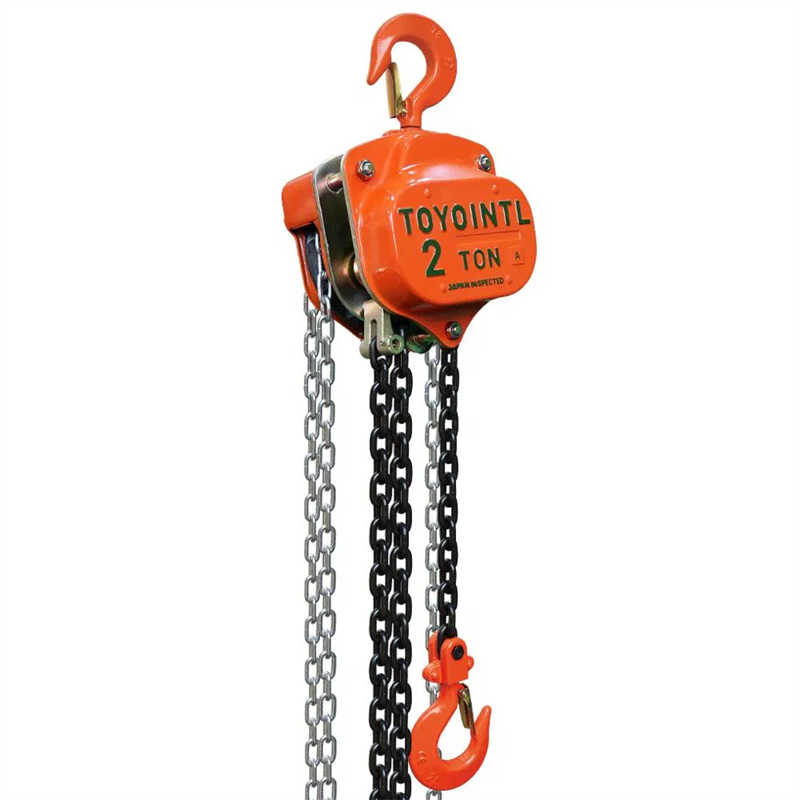

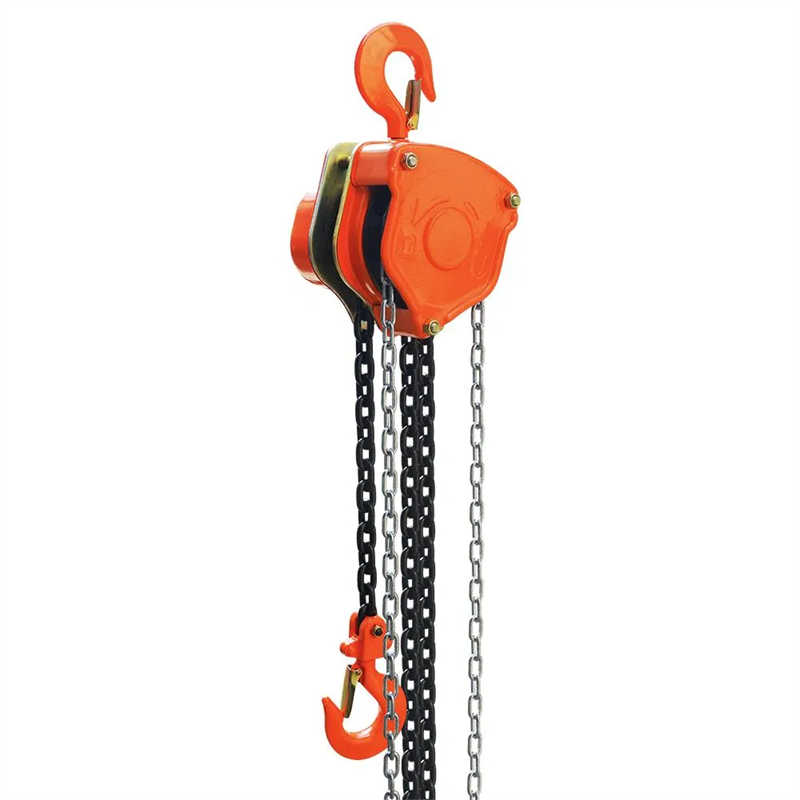

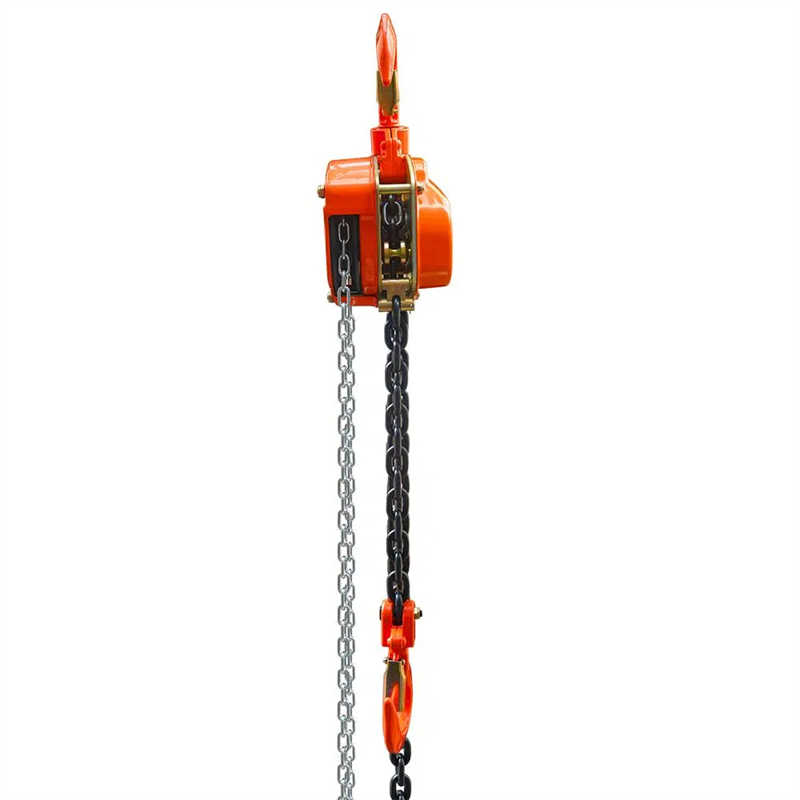

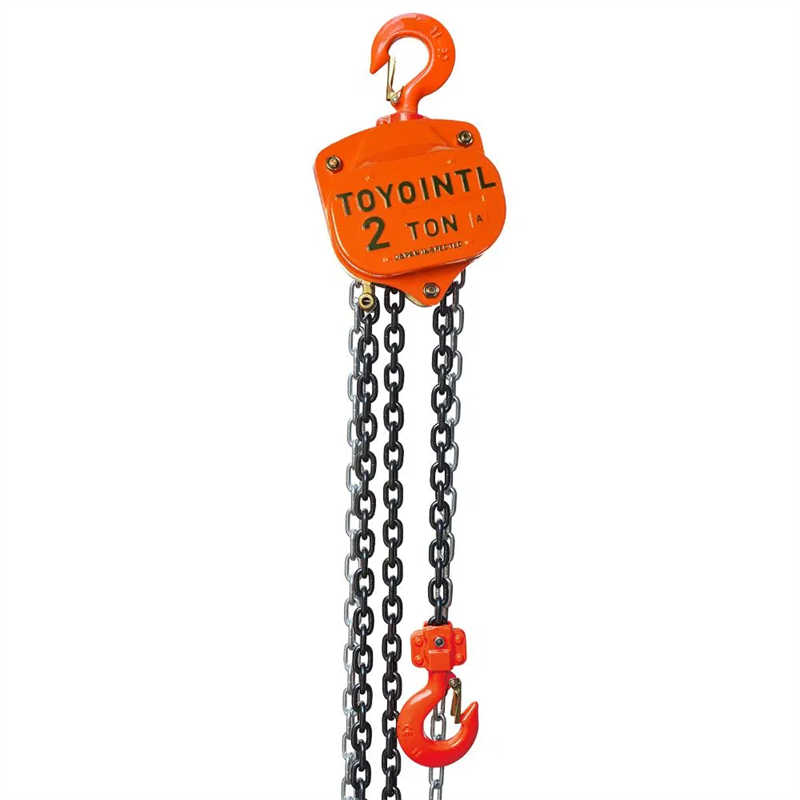

Compact and Lightweight Manual Chain Hoist for Maintenance and Repair
$25.00 10 set
Qingdao Shanghai
L/C T/T
New
VT
CE, ISO9001
TOYO
General manufacturing
Product Description
1.All structural parts made of high quality steel.
2.Alloy steel hooks.
3.Gear made of alloy steel.
4.Strong nut.
5.Hollow structure increases strength.
6.Casting safety latchesl.
7.All Major components are strictly heat-treatedLoad chain made by GERMAN machine.
8.Emboss logo.
9.Galvanized plate
| SPECIFICATION | |||||||
| Model | Capacity(T) | Standard Lift(M) | Running Test(T) | No. of Falls of Load Chain | Load Chain Diameter(MM) | Net Weight(KG) | Packing Size(CM) |
| VT-0.5T | 0.5 | 3 | 0.5 | 1 | 5 | 8.4 | 22*14*15 |
| VT-1T | 1 | 3 | 1 | 1 | 6.3 | 12 | 25*19*16 |
| VT-1.5T | 1.5 | 3 | 1.5 | 1 | 7.1 | 16.2 | 33*24*16 |
| VT-2T | 2 | 3 | 2 | 1 | 8 | 20 | 33*24*19 |
| VT-3T | 3 | 3 | 3 | 2 | 7.1 | 24 | 34.5*24*16 |
| VT-5T | 5 | 3 | 5 | 2 | 9 | 41 | 40*30*19 |
| VT-10T | 10 | 3 | 10 | 4 | 9 | 79 | 48*42*18.5 |
| VT-15T | 15 | 3 | 15 | 6 | 9 | 120 | 69*42*18.5 |
| VT-20T | 20 | 3 | 20 | 8 | 9 | 193 | 78*68*20 |
| VT-30T | 30 | 3 | 30 | 12 | 9 | 220 | 85*67*30 |
| VT-50T | 50 | 3 | 50 | 22 | 9 | 1092 | 110*100*130 |
FEAETRES
1.Special heat treated hook, will never broken even under overload situation.
2.Embossed Logo and Capacity for permanent identification.
3.High strength alloy steel gears with special heat treatment to increase the strength.
4.Special pitch length,match hand wheel very well saving pulling forceand no block during chain moving.
5.Pin type chain stop, easy disassembled.
6.Casting chain stop is optional.
7.High strength G80 Alloy Steel Load Chain.
8.Special hook tip design,prevent latch slip out of hook more safety.
9.Load Chain Guidemechanism.
10Machined load wheel providing better match.Chain guide mechanism in flanged load sheave and guide roller facilitate smooth movement of load chain.
11.Double Pawlspring Mechanismto Furtherincrease Safety.
12.In case on pawl spring is damaged, the other maintains functions.This mechanism further increases safety.
