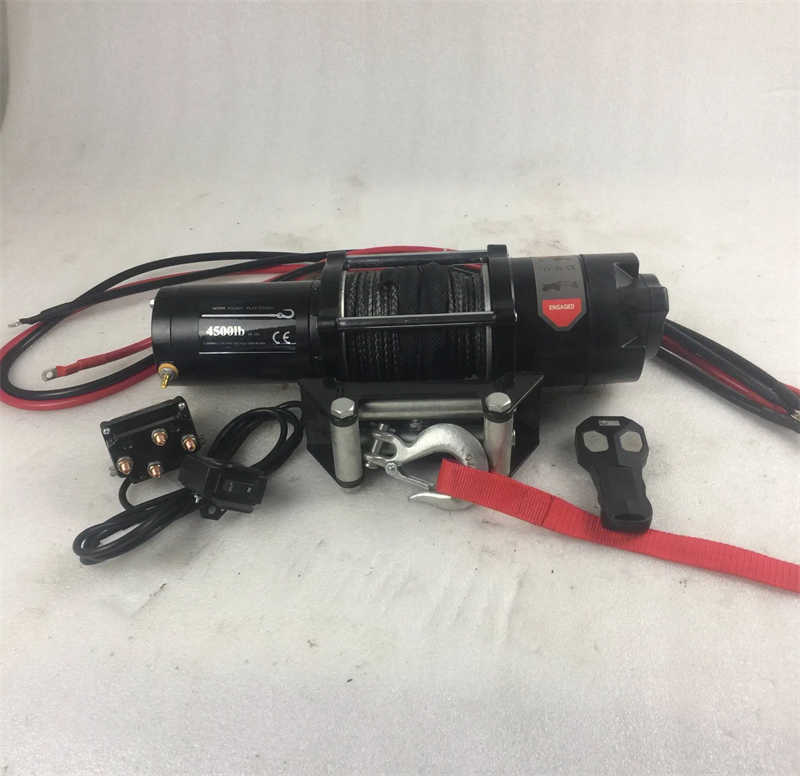

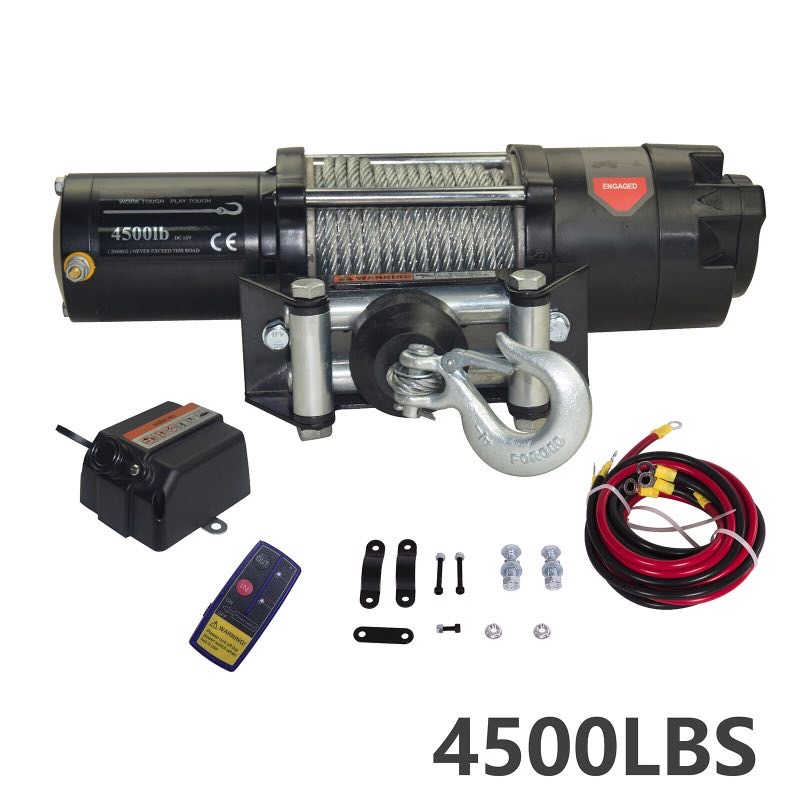

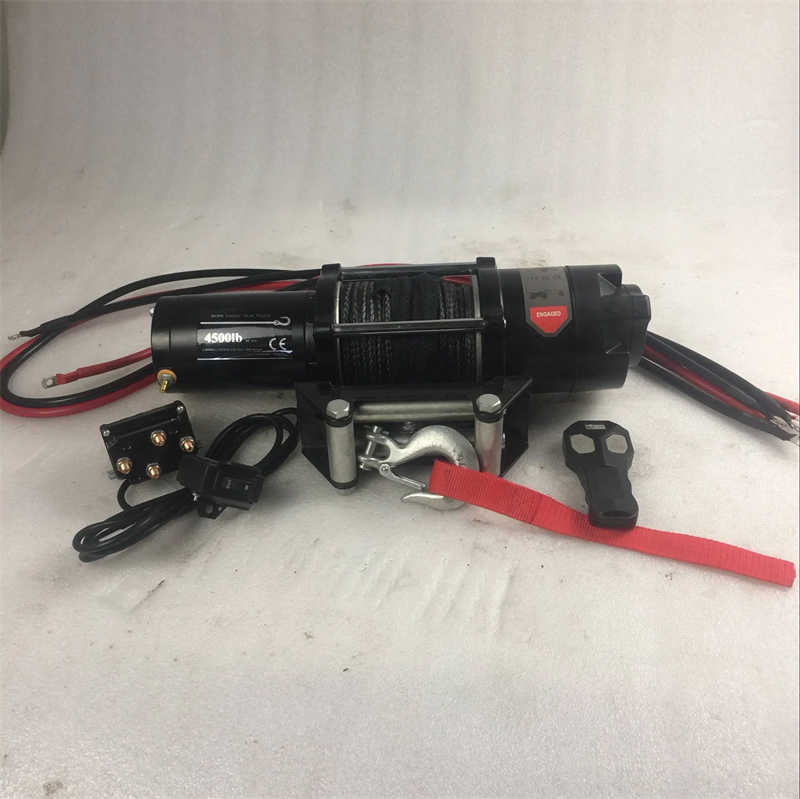

Small Trailer ATV UTV Electric Winch 4500lb 12V
$98.00 10 set
Qingdao Shanghai
L/C T/T
New
Winch
CE, ISO9001
OEM
General manufacturing,Metal production industry,Renewable energy industry
Product Description
With a massive 4,500 lb. capacity, all-metal gear end housing, and a powerful permanent magnet motor, this winch has the extra power to pull your Side X Side or a heavy load with ease.
Rated Line Pull: 4,500 lbs. (2041 kgs.) single line
Durable 12V 2 HP Permanent Magnet motor
Tough 3 Stage Planetary Gear box with a 198:1 gear ratio
Sealed Motor and Gear Box helps keep mud and water out!
Includes 32' of 6/25'' (6.0mm x 10m) diameter wire rope with detachable hook
Automatic load holding brake system (in the drum brake system)
High Performance 200 Amp Solenoid
Cam action free spooling clutch
Four-way Roller Fairlead
Hand Held Remote
Handle Bar Remote
Winch Mounting Plate
Detachable Clevis Hook
200 Amp Solenoid with remote wiring harness.
| SPECIFICATION |
| Line pull: 2,040kgs/4,500lbs |
| Motor: 12V/2.0HP |
| Gear Ratio: 198:1 |
| Wire Rope Size: Φ6mmx10m |
| LINE PULL | |||
| Layer of Wire Rope | Max Line Pull | ||
| 1 | 4,500lbs/2,040kgs | ||
| 2 | 3,850lbs/1,746kgs | ||
| 3 | 3,350lbs/1,519kgs | ||
| 4 | 2,800lbs/1,270kgs | ||
| LINE SPEED AND AMP DRAW(1st layer of rope on the drum) | ||||
| Load | Line Speed | AMP Draw(12V) | AMP Draw(12V) | |
| No Load | 19FPM/5.8MPM | 25 | 13 | |
| 2,500lbs/1,140kgs | 9.0FPM/2.7MPM | 210 | 120 | |
| 4,500lbs/2,040kgs | 4.9FPM/1.5MPM | 285 | 155 | |
