0.5-5 Ton Single-Girder Suspension Crane for Warehouse & Production Lines
$3500.00 1 set
Qingdao Shanghai
L/C T/T
New
LX
CE, ISO9001
TOPLIFT
General manufacturing
Product Description

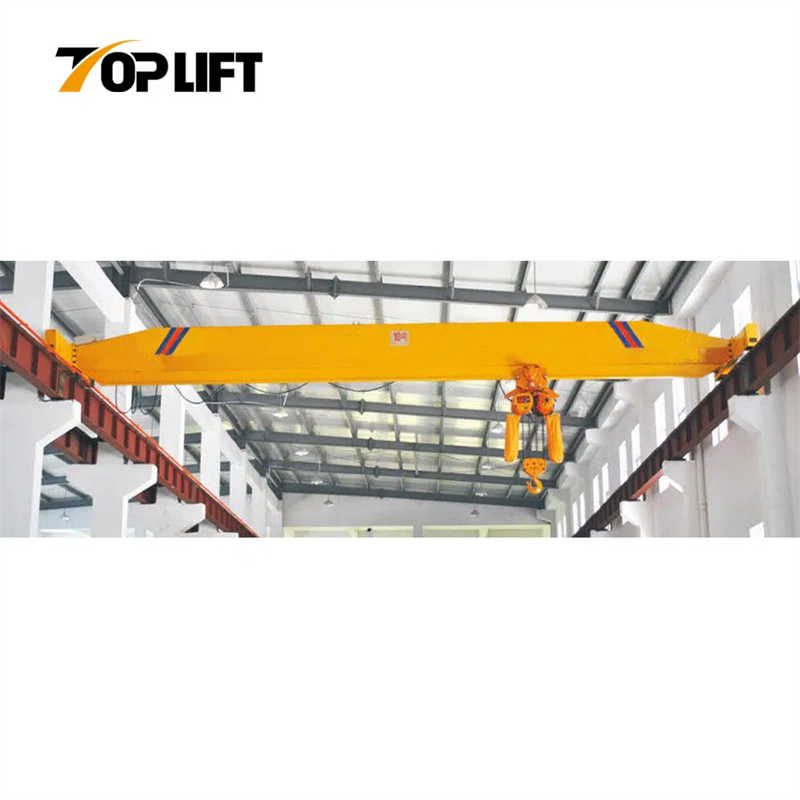

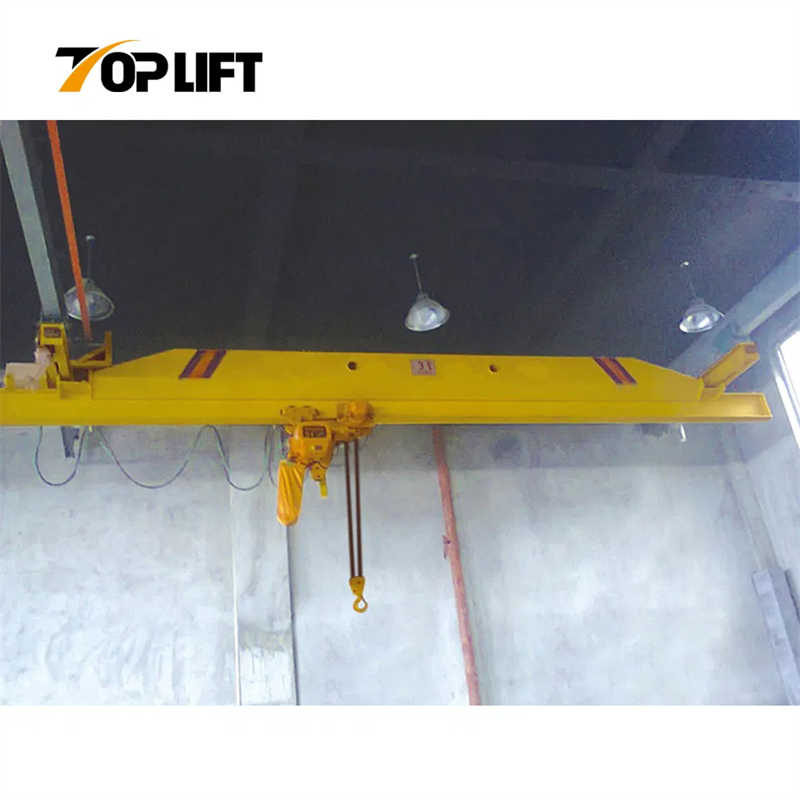

0.5-5T LX Type Electric Single-Girder Suspension Crane
The LX Type Electric Single-Girder Suspension Crane is a lightweight, efficient, and reliable lifting solution designed for handling loads ranging from 0.5 to 5 tons. It features a single-girder design suspended from the ceiling or overhead structure, making it ideal for workshops, warehouses, and production facilities with limited floor space.
Equipped with a CD/MD model wire rope electric hoist, the crane offers smooth and precise lifting and lowering operations. Its compact structure, low headroom design, and simple installation make it highly suitable for environments where space and efficiency are critical.
Key Features:
Capacity: 0.5T to 5T
Suspended structure - runs on the lower flange of I-beam tracks
Lightweight design for easy installation and minimal building load
Electric wire rope hoist (CD/MD type) ensures reliable performance
Smooth operation with low noise and high safety standards
Applicable to workshops, assembly lines, maintenance areas, and warehouses.
Product Parameters
0.5-5T LX Type Electric Single-Girder Suspension Crane Lifting Capacity T 0.5T 1T 2T 3T 5T Control Method Ground Contral Ground Contral Ground Contral Ground Contral Ground Contral Crane Traveling Mechanism Running Speed m/min 20;30 20;30 20;30 20;30 20;30 Reduction Ratio 28.2;20 28.2;20 28.2;20 28.2;20 28.2;20 Electric Motor Model ZDY12-4 ZDY12-4 ZDY12-4 ZDY12-4 ZDY12-4 Power kw 0.4 0.4 0.4 0.4 0.4 Rotate Speed r/min 1380 1380 1380 1380 1380 Hoist Mechanism Electric Hoist Model HKDL00501 HKDL00501 HKDL0101 HKDL0101 HKDL0201 HKDL0201 HKDL0301 HKDL0301 HKDL0502 HKDL0502 Lifting Speed m/min 6.8 6.9/2.3 6.6 6.9/2.3 6.6 6.9/2.3 5.4 5.4/1.8 2.7 2.7/0.9 Lifting Height m 6,9,12 6,9,12 6,9,12 6,9,12 6,9,12 Running Speed m/min 11/21 11/21 11/21 11/21 11/21 Motor Type YEP YEP YEP YEP YEP Working Level A3 A3 A3 A3 A3 Power Supply 3 Phase 50Hz 380V 3 Phase 50Hz 380V 3 Phase 50Hz 380V 3 Phase 50Hz 380V 3 Phase 50Hz 380V The Recommended Track 120a-145c 120a-145c 120a-145c 120a-145c 120a-145c
