Lightweight Single Girder EOT Crane for Small to Medium Workshops

Product Description

Verhead Bridge Cranes (also called an Overhead Traveling Crane) is a crane that is permanently fixed in place for the
Purpose of maneuvering extremely large and heavy objects that would be unfeasible, if not impossible, to move manually.

Bridge crane is constructed by relying on a beam (rail) that is permanently attached to a support structure. Via a cable or Wire rope that is fed through the trolley-mounted mechanism, heavy objects can be moved vertically (raised or lowered), while At the same time moved horizontally along the rail, thereby moving the object for new placement. Smaller overhead bridge Cranes might be used to move heavy tools, products, or equipment back and forth between workshops or from a workshop to a Loading dock.

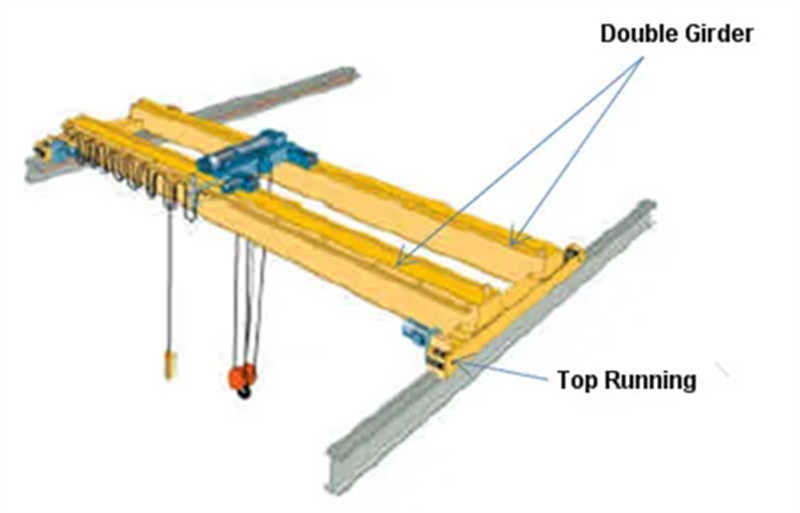

The Double Girder Bridge Cranes consist of two end trucks, two bridge girders and the trolley hoist unit. The hoist is placed Between the two girders rather than below; This adds up to 3 feet more that items can be lifted off the floor.

Double girder bridge cranes find application when greater capacities are requested and with high operation requirements. In Equal conditions double girder bridge cranes offer higher lifting heights.

Capacity: 2000 - 50000kg
Span: 5 - 25m

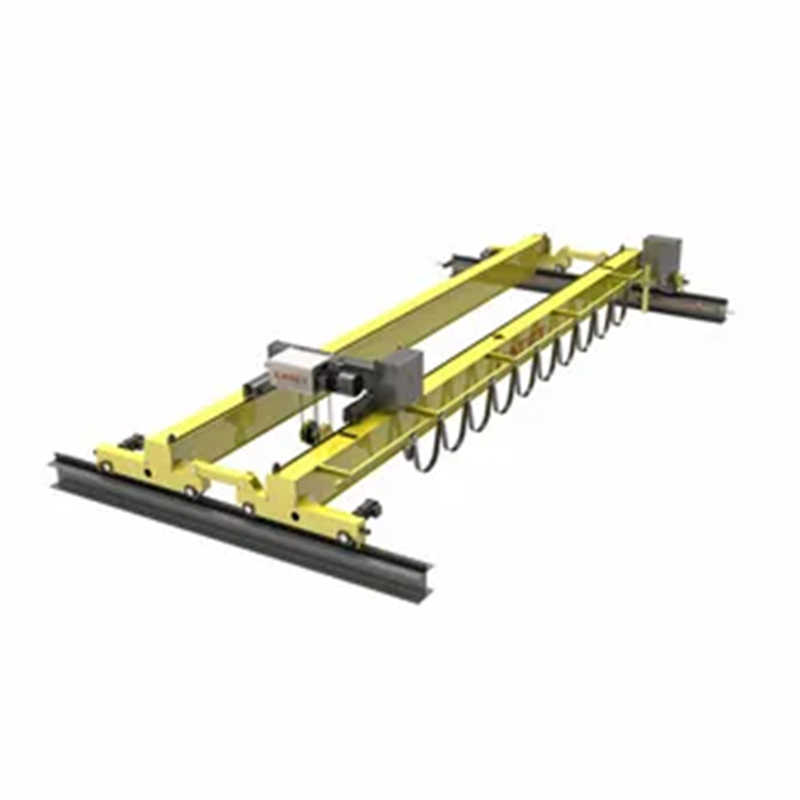

Double rail crane trolley with wire rope hoist

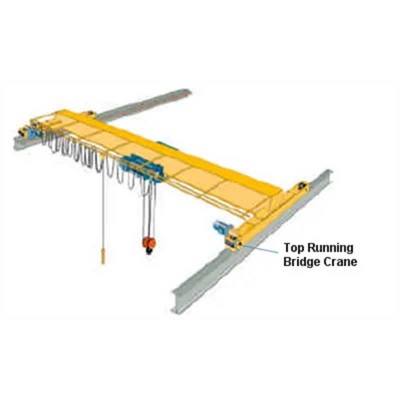

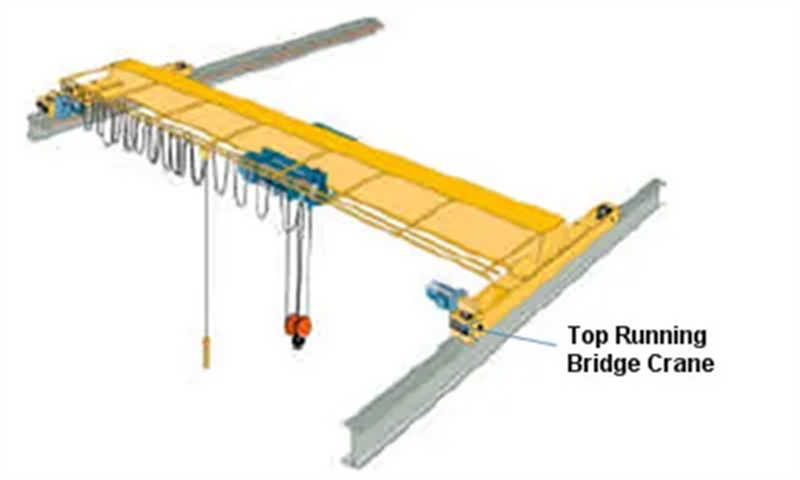

Top Running Bridge Cranes

More commonly known as Top Running Bridge Cranes, the Top Running Bridge Cranes travel on the top flange of the runway beam, Which is frequently supported by the roof structure. Because there is no need for support columns, it uses least floor space Of other overhead bridge cranes. The top running bridge crane is usually restricted to moving heavy capacities, Under Running Bridge Cranes

More commonly known as "Under Hung" Bridge Cranes, the Under Running Bridge Cranes travel on the bottom flange of the runway Beam, which is frequently supported by the roof structure. Because there is no need for support columns, it uses least floor Space of other overhead bridge cranes. The under hung bridge crane is usually restricted to moving lighter capacities
