CE Certified CD1/MD1 Wire Rope Hoist - Reliable Performance
$1350.00 1 set
Qingdao Shanghai
L/C T/T
New
CD1/MD1
CE, ISO9001
Jecsany
General manufacturing,Metal production industry,Renewable energy industry

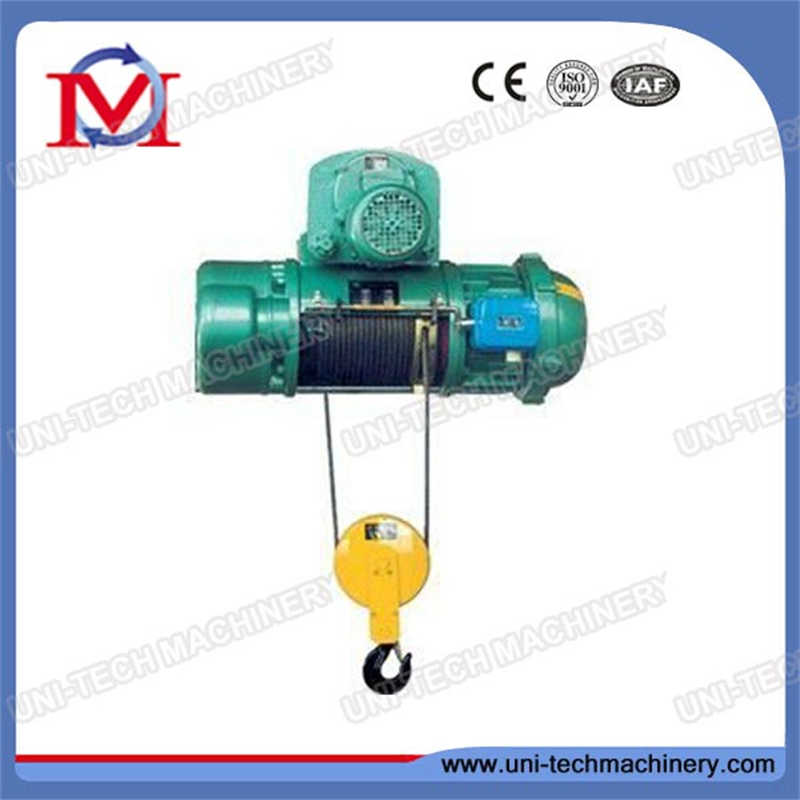

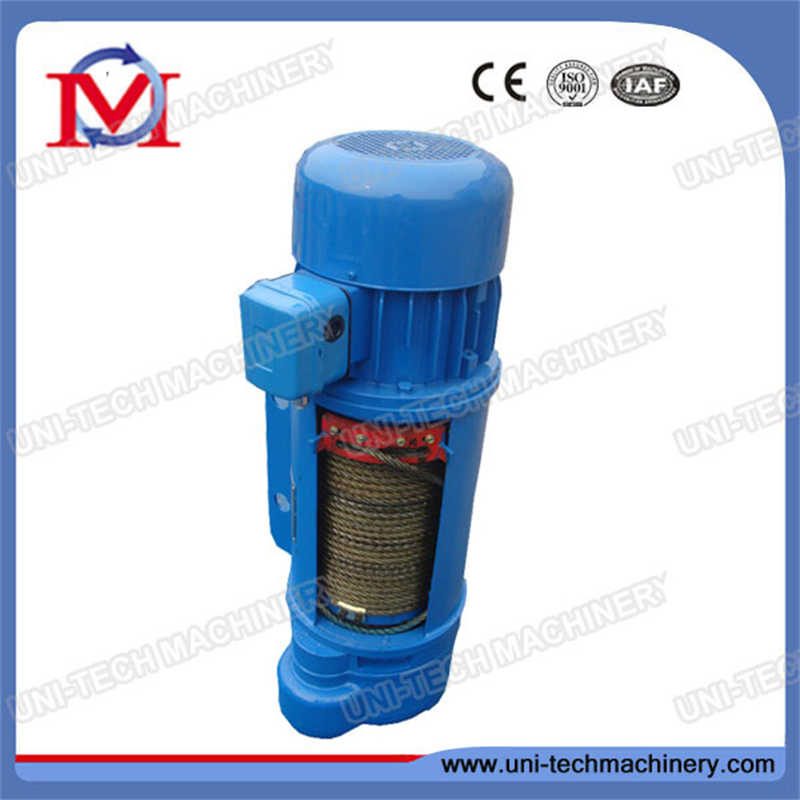

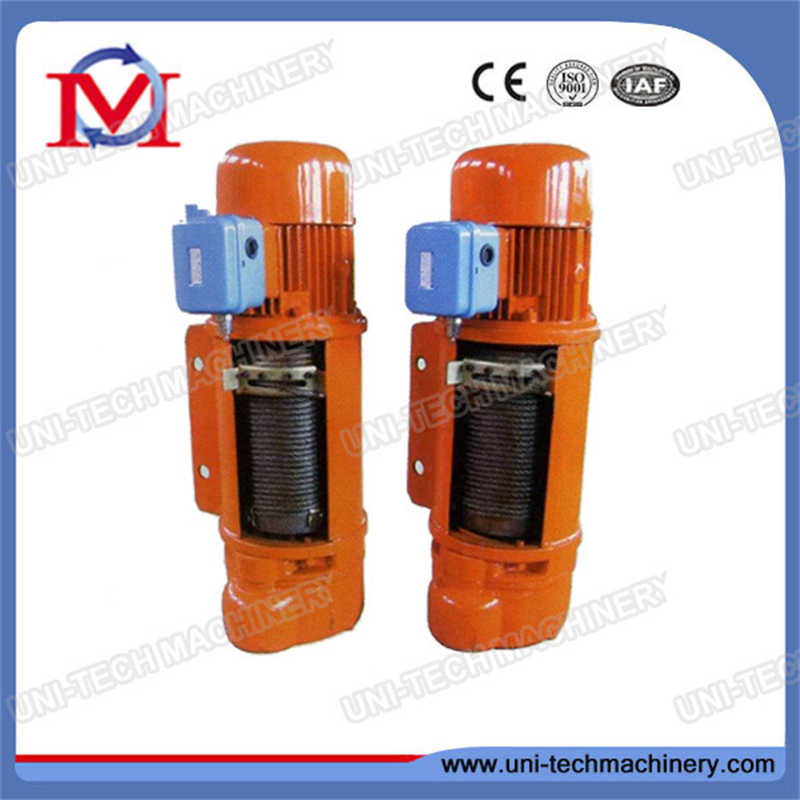

CD1/MD1 TYPE WIRE ROPE HOIST MADE IN CHINA
Specifications
1.Operated convenient and widely used
2.ISO9001 certification
3.Different power supply available
4.First-class service
CD1,MD1 model wire rope electric hoist is a kind of light type lifting equipment. It could be installed on single girder crane with hoist, overhead,gantry and jib crane. Modified could be used as a winch. So it is a commonly used lifting equipment in factory, mine, port, warehouse, cargo yard, shop etc, is a nessesary equipment to improve working efficiency and labor conditions.
The lifting speed of CD1 model electric hoist is common speed, it could satisfy common use requirements, MD1 model electric hoist operates two lifting speeds----common speed and slow speed. When working at slow speed, it could satisfy precise loading and unloading, sand box moulding, machine tool inspection and other precise working requirements. So the use MD1 electric hoist would be much wider then CD1 hoist.
Technical specification | |
Model number | CD1/MD1 - Electric hoist |
Capacity | 1~20ton |
Lifting height | 6m, 9m, 12m, 18m, 24m, 30m, max 100m |
Lifting speed | 8(8/0.8)m/min, 7(7/0.7)m/min, 3.5(3.5/0.35)m/min |
Traverse speed | 20m/min, 30m/min or double speed |
Industrial voltage | 380V,50Hz,3Phase or as your demands |
Control methods | Pendant push button or remote controller |
Working temperature | -25°C ~ +42°C |
Working class | M3 |
Color of electric hoist | as your demands |
Electrical system | Schneider brand contactor |
Motor | China top brand motor from Nanjing |
