High-Temperature Hand Pull Chain Block 2T-8T Foundry & Steel Mill Approved
$55.00 10 set
Qingdao Shanghai
L/C T/T
New
XL3
CE, ISO9001
CLIP-ON
General manufacturing,Metal production industry,Renewable energy industry
Product Description

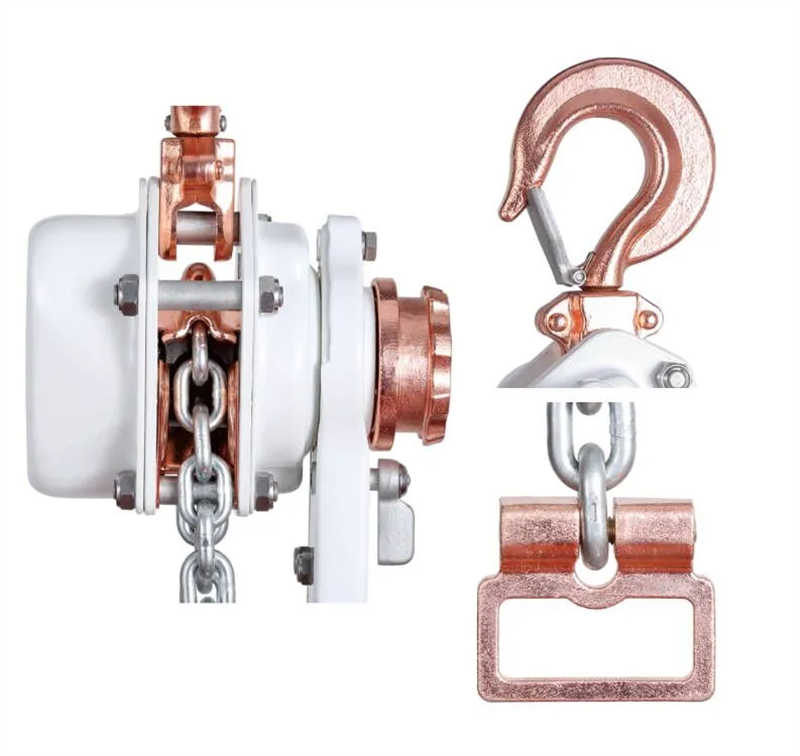

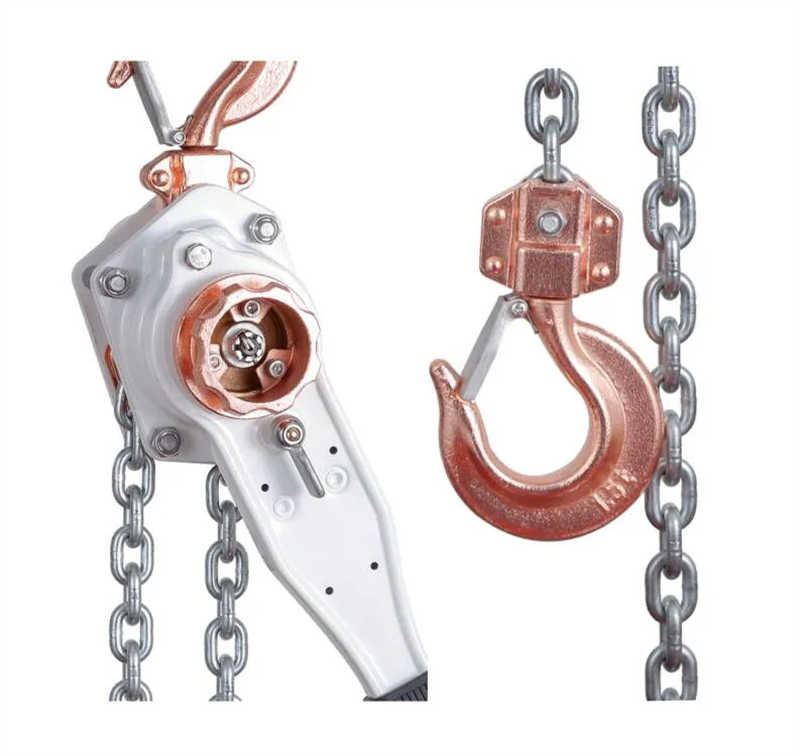

1.Production Name:INDUSTRY OILFIELD OFFSHORE SPARK PROOF LEVER HOIST ISO CE GS ATEX LR CCS
2.Introduction
In many areas of industry, plants are operated with potentially explosive atmospheres. Due to the very high risk to personal and other assets, extremely strict guidelines and technical requirements are in place in explosive zones.
3.Main feature
•Manufactured in accordance with ATEX Directive 2014/34/EU and Machinery Directive 2006/42/E
• Developed for the use in potentially explosive atmospheres (ATEX zones).
• Different capacities and heights of lift to suit your specific requirements
• Stainless steel lifting chain, special marine storage chain bag, overload limiter are optinal.
Category II - high safety - Certification: Ex II 2 GD c IIC T4 IIIC T135°C
Optional
Stainless steel load chain
Overload protection device
Chain container
4.Specification
| MODEL | XF3-0.5 | XF3-0.75 | XF3-1.5 | XF3-2 | XF3-3 | XF3-5 | |
| CAPACITY | t | 0.5 | .0.75 | 1.5 | 3 | 6 | 9 |
| LIFTING HEIGHT | m | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| TEST LOAD | KN | 6.3 | 12.5 | 18.8 | 37.5 | 75 | 112.5 |
| PULL ON LEVER TO LIFT FULL LOAD | N | 256 | 250 | 373 | 395 | 398 | 400 |
| NO. OF LOAD CHAIN FALLS | 1 | 1 | 1 | 1 | 2 | 3 | |
| DIAMETER OF LOAD CHAIN | mm | 5X15 | 6X18 | 7X21 | 10x30 | 10x30 | 10x30 |
| DIAMETERS mm | A | 143 | 157 | 178 | 206 | 206 | 206 |
| B | 90.5 | 94 | 104 | 118 | 118 | 118 | |
| C | 31.5 | 37.5 | 42.5 | 50 | 65 | 85 | |
| D | 23.5 | 26 | 31 | 37 | 46 | 55 | |
| Hmin | 330 | 365 | 400 | 520 | 595 | 800 | |
| NET WEIGHT | kg | 5.5 | 7.9 | 10.9 | 20.2 | 35 | 55 |
| EXTRA WT.PER m | mm | 0.55 | 0.8 | 1.1 | 2.15 | 4.3 | 6.45 |
Quality Assurance and Service
1. Have a complete rigorous management, production and inspection processes to control the quality and avoid detail mistake
2. Design and produce ability
3. Rigorous inspection including incoming inspection, flaw detection etc., and double check is a must.
4. Advanced factory facility ensure
5. Response to any inquiry within 24 HRS with design or efficient solution from our engineer or tech supporter.
6. Provide professional customization service according to client's requirements
7. on time delivery, as we have rigorous production schedule and profession follow-up process
8. Moderate price and professional service
