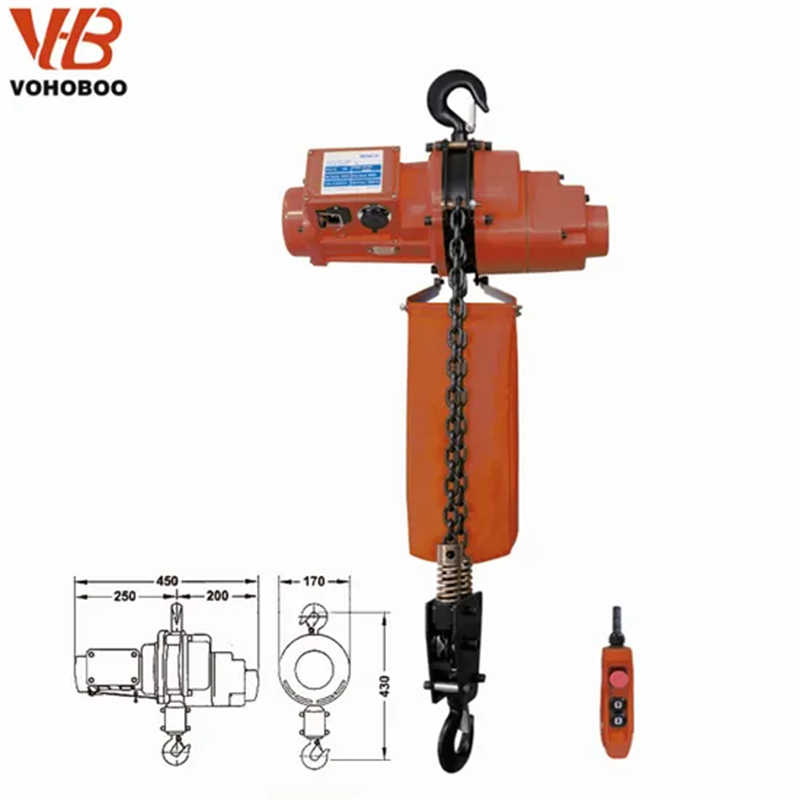

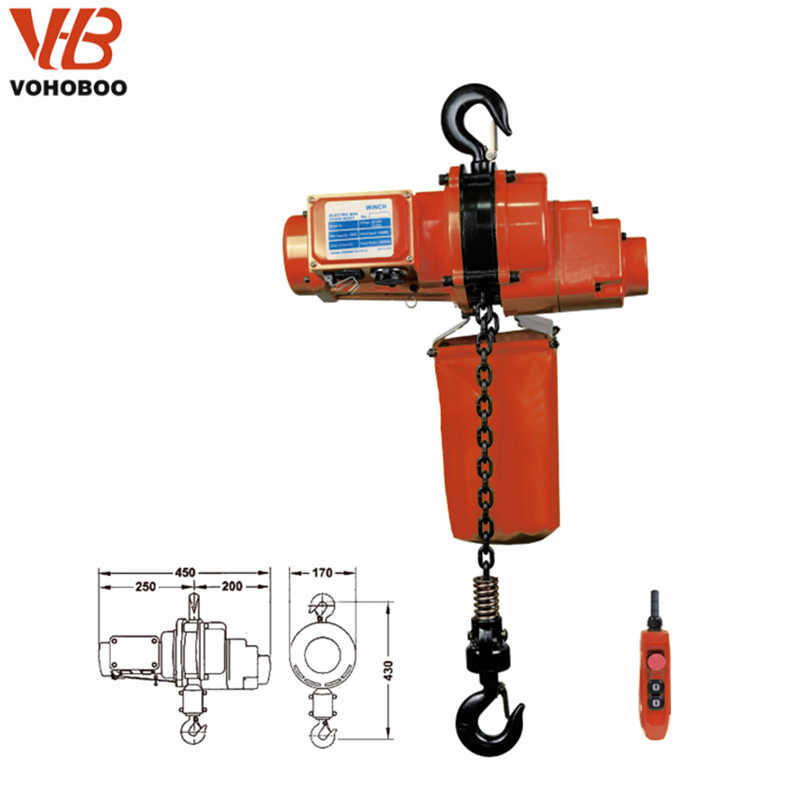

Standard BCD Electric Chain Hoist with Reliable 110V and 220V Single Phase
$300.00 1 set
Qingdao Shanghai
L/C T/T
New
BCD
CE, ISO9001
VOHOBOO
General manufacturing
Product Description
Product Features:
1.The motor system adopts an industrial grade wound carbon brush motor. The heat resistance of the enameled wire in the motor is up to 200°C, . and it can continuously provide good durability under high temperature conditions when lifting.
2.Dual braking system: unique mechanical braking and short-circuit resistance braking system
3.Direct and indirect control systems are streamlined, efficient, and have a low failure rate. They are safe, stable, and easy to
maintain.
4.The chain is made of 80 grade alloy steel, with a safety factor of 4 times.
Product Details
Product Accessories
Model | Load Pated | Voltage | Speed | Motor | Chain |
BCD-300 | 300kg | 220V~240V 50~60Hz | 12M/min | 1400W | 6.3mm/3M |
300kg | 110V 50~60Hz | 12M/min | 1400W | 6.3mm/3M | |
BCD-500 | 500kg | 220V~240V 50~60Hz | 6M/min | 1500W | 6.3mm/3M |
500kg | 110V 50~60Hz | 6M/min | 1500W | 6.3mm/3M | |
BCD-1000D | 1000kg | 220V~240V 50~60Hz | 3M/min | 1500W | 6.3mm/3M*2 |
1000kg | 110V 50~60Hz | 3M/min | 1500W | 6.3mm/3M*2 | |
BCD-1000S | 1000kg | 220V~240V 50~60Hz | 5.4M/min | 2500W | 7.1mm/3M |
1000kg | 110V 50~60Hz | 5.4M/min | 2500W | 7.1mm/3M | |
BCD-2000 | 2000kg | 220V~240V 50~60Hz | 2.7/min | 2500W | 7.1mm/3M*2 |
2000kg | 110V 50~60Hz | 2.7M/min | 2500W | 7.1mm/3M*2 |
