Product Description:
Single and Double girder gantry crane with hooks is applied outside warehouse or railway sideways to do common lifting
and unloading works. This kind of crane is composed of bridge, support legs, crane travelling organ, trolley, electric
equipment,strong lifting winch. The frame adopts box-type welding mechanism. Crane travellilng mechanism adopts
separate driver. All mechanisms are operated in the driver cabin. Power is supplied by cable or slide wire. There are
different capacity double beams gantry crane for your choice according to your different use.
It is a standard mobile gantry crane consist of a two legged A-frame support the trolley adopt flexible cable conductive,
the gantry adopt slide wire or flexible cable conductive.
It is ideal for outdoor applications where lifting facilities are provided, without the cost of a building or any supporting
steelwork.
Main Features:1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine.
Gantry Crane Classification:

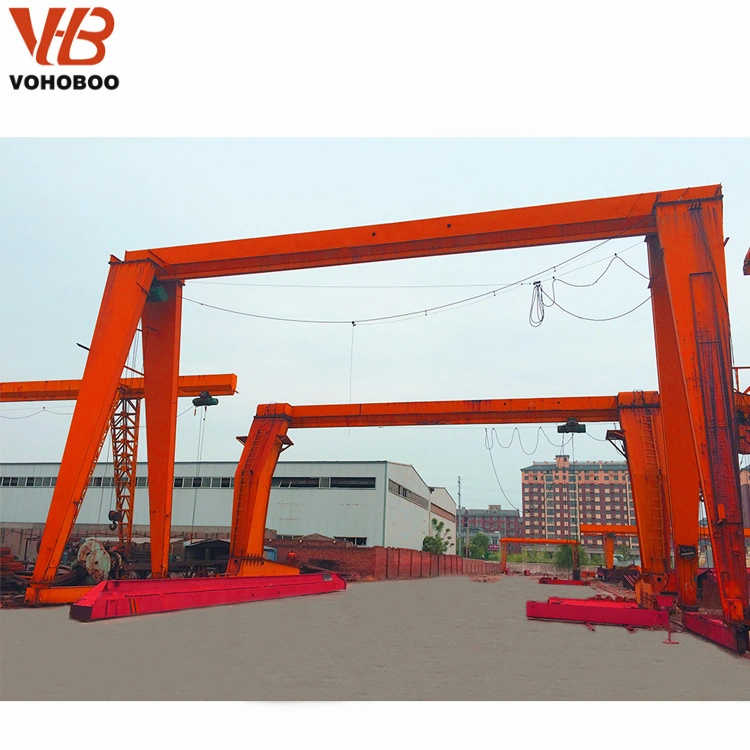

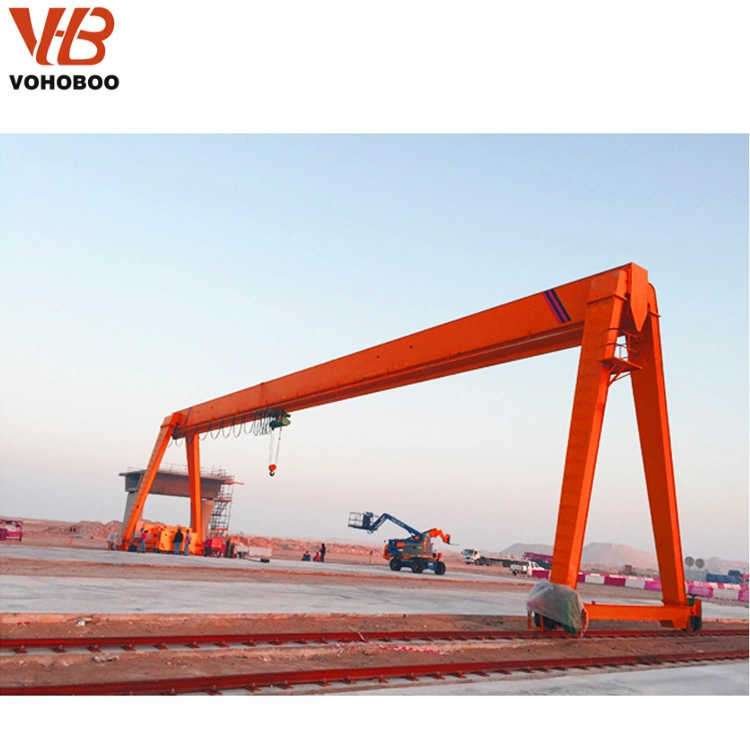

Single Girder Gantry Crane
* Lifting capacity is 5 to 20 ton.
* Span is 12 to 30 meters
* Lifting height is 6 to 12m
* Appication: used at open or room ground and warehouses, yards etc.

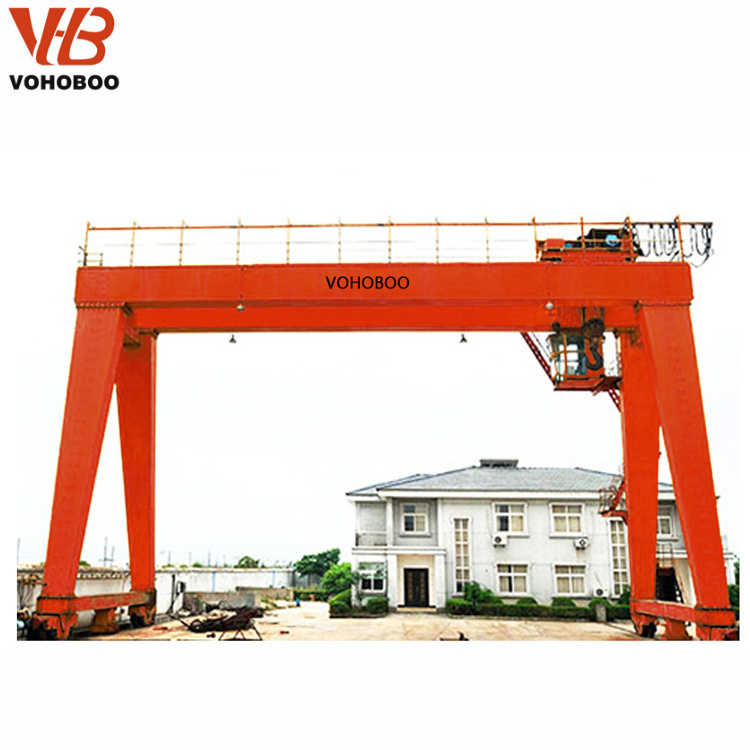

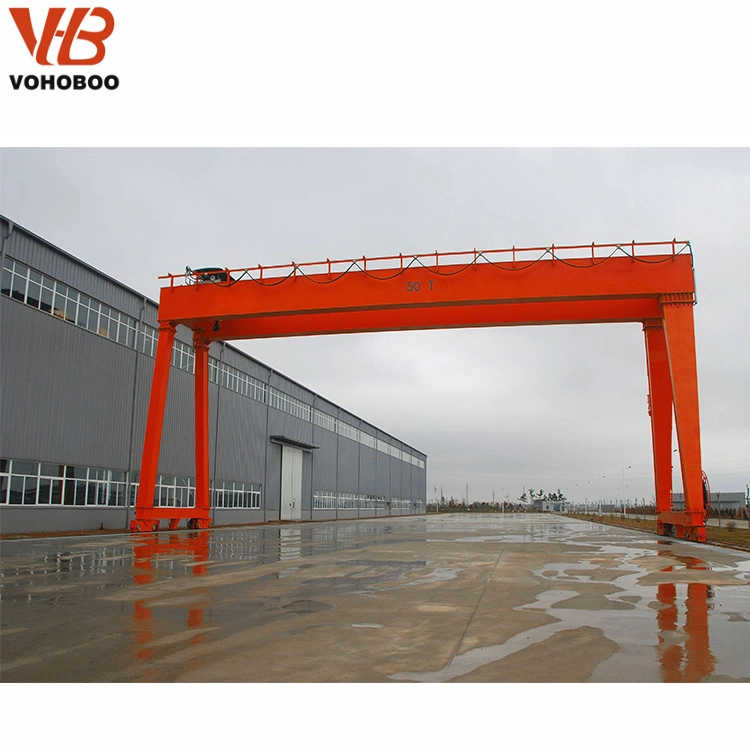

Double Girder Gantry Crane
* Lifting capacity is up to 500ton.
* Span is 12m to 35m.
* Lifting height up to 12m.
* Applied large outside workshop warehouse or railway, road, subway building, etc.
Single Girder Truss Gantry Crane
* Lifting capacity is 5 to 20 ton.
* Span is 12 to 30 meters
* Lifting height is 6 to 12m
* Application: The best light crane, used both in multi-wind area and workshop for inside and outside.
Semi Gantry Crane
* Lifting capacity: 2 to 10 tons
* Span: 10~20m
* Lifting height is 6 to 12m
* Application: it could be used in outdoor or indoor warehouse for loading and unloading
(Single Girder) L type Gantry Crane
* Loading capacity is from 5 to 32t
* Span is from 12 to 30m
* Application: used in outdoor warehouse for loading and unloading
