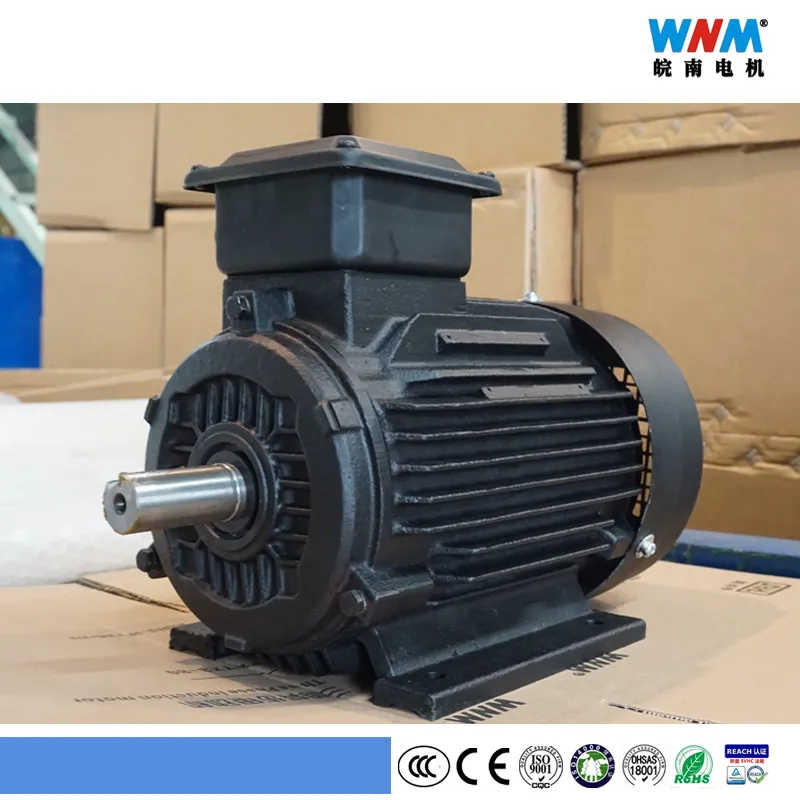

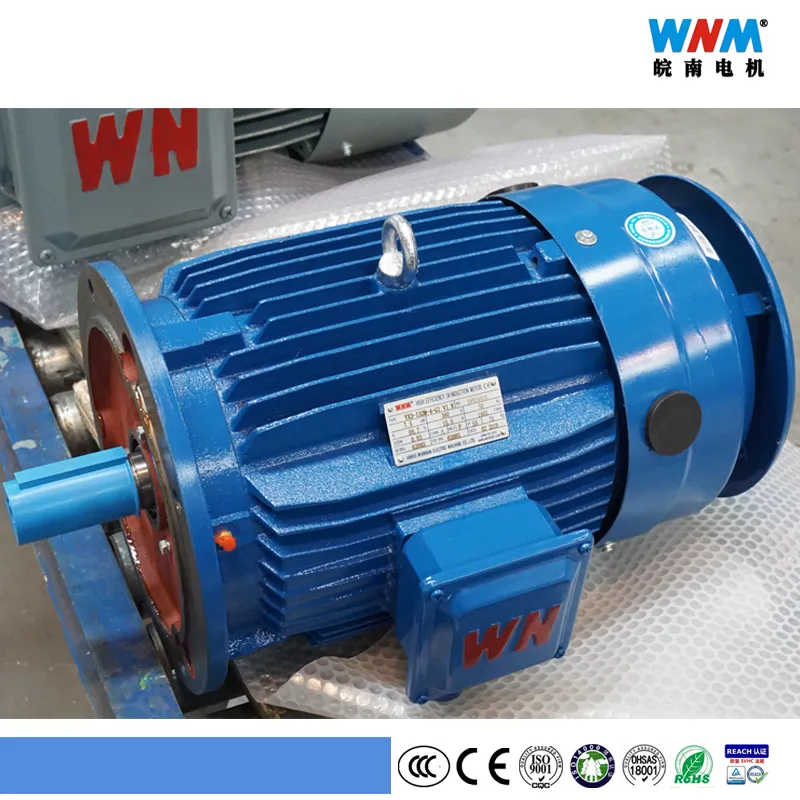

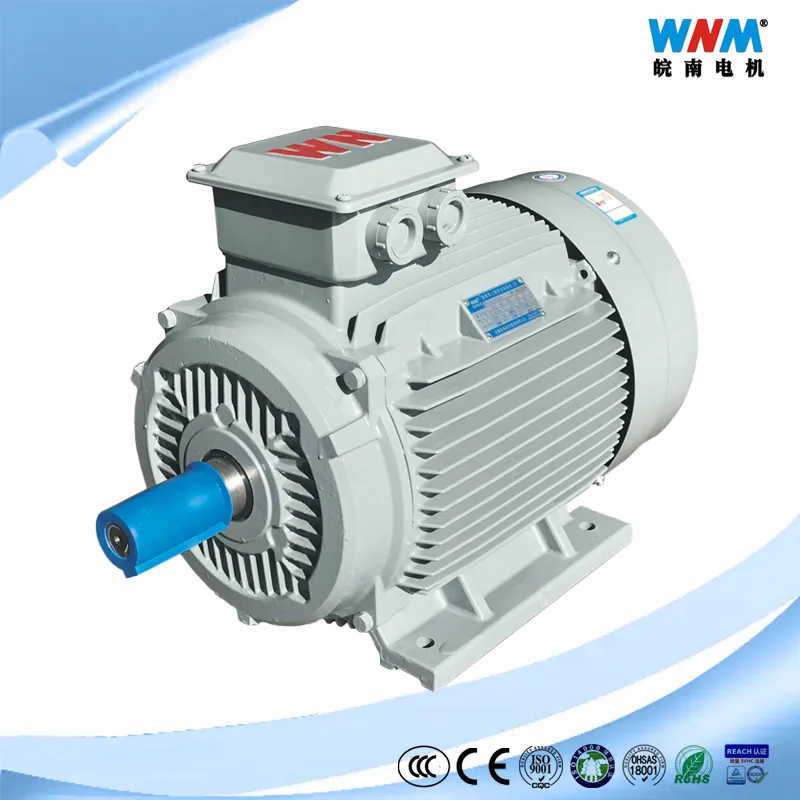

Yej2 Ce CCC Quick Stop AC Electric Speed Control Electromagnetic Brake Motor

IEC Ce Approved High Efficiency Three Phase Induction Asynchronous AC Electric Motor 0.12kw-400kw for fan pump blower compressor conveyor
---------------------------------------------------------------------------------------------

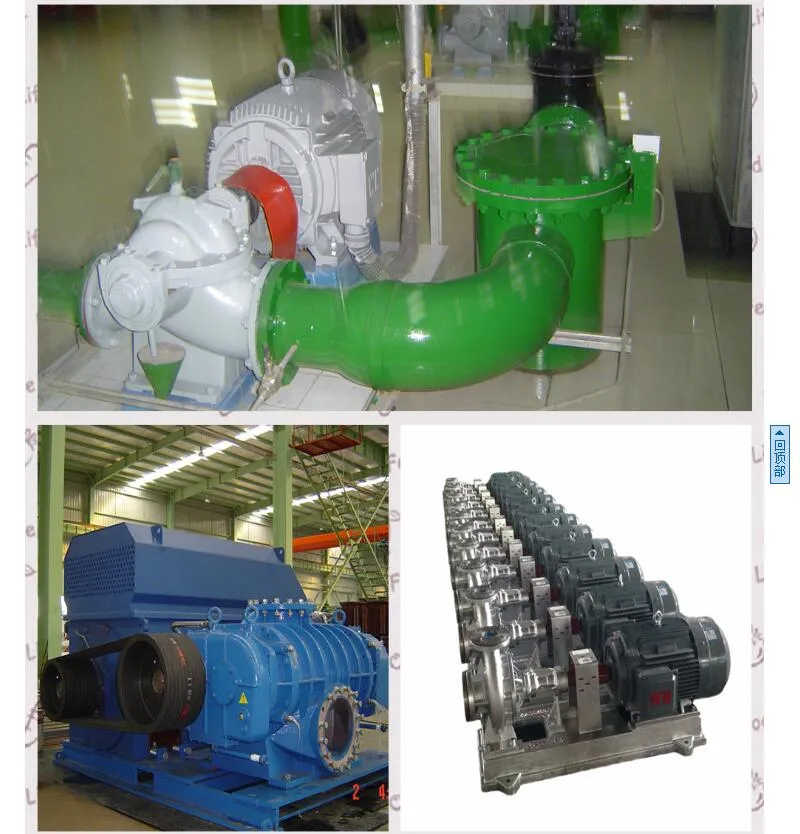

Applications: Can be applied in the machines where continuous duty is required, typical applications like

• Pumps

• Fans

• Compressors

• Lifting equipment

• Production industry

General Description

• frame sizes: 63 to 355M/L

• Rated output: 0.12 to 400kW

• Voltage: 380V

• Frequency: 50Hz or 60Hz

• Poles: 2, 4, 6, 8,10

• Efficiency levels: IE1,IE2,IE3,IE4

• Duty Cycle: S1

• Enclosure: IC411 - TEFC

• Insulation class: F

• Degree of protection: IP55/56/65/66

• Service Factor: 1.0

• Regreasing system: frame 250 and above

Features
Beautiful profile, high efficiency and energy saving, class F insulation, IP55 protection grade, low noise, little vibration, reliable running.

Optional Features
Electrical:
Insulation Class:H; Design H
Thermal Protection: PTC Thermistor, Thermostat or PT100
Mechanical:
Others mountings
Protection Degree:IP56, IP65, IP66
Sealing:Lip seal, Oil seal
Space Heater, Double shaft ends
Drain Hole

Mounting
Conventional mounting type and suitable frame size are given in following table(with "√")

If there is no other request in the order or agreement, terminal box standard position is at the right side of the frame; data above may be changed without prior notice.
