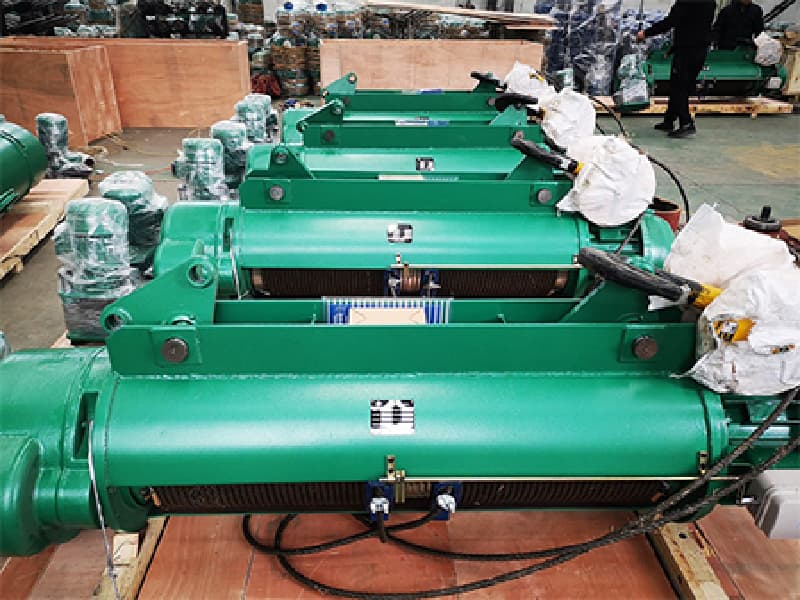

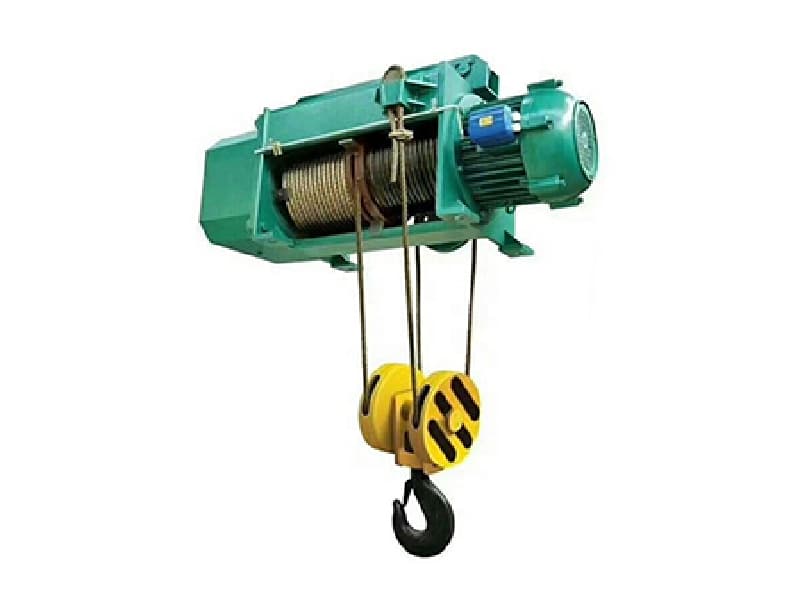

Explosion-Proof Electric Hoist 5 Ton 60 Meter A5 Duty Type I

Benefits At A Glance

• The machine features

• 1.1 Compact structure, light, safe and reliable;

  1.2 High universality component, can be easily interchanged

  1.3 Light dead weight, small in size, large lifting capacity

  1.4 Explosion-proof type

  1.5 Hoist exposed parts are all adopt special no-spark materials,reliable explosion-proof performance

  1.6 Explosion-proof mark is Exd II BT4 or Exd II Ct4, temperatureclass is explosive gas mixture of T 1-T4 group (see table 1 and 2)

  1.7 Pass the explosion-proof performance testing of ministry of machinery industry explosion-proofelectric products quality supervision and inspection center Jiamusi branch center, and presented the flame-proof certification

  1.8 In accordance with GB3836-2000 planning and design, manufacture and acceptance

• Supply scope

• Our company mainly produce hoist series with the lifting capacity of 0. 25-63t, the lifting height of 1~ 100m, low working class M3. We also design and manufacture non-standard series products according to your demands.

• Main application

• Hanging on the I beam; moving in straight or curve line; can be installed in the fixed support to

  lift the heavy materials, using with the explosion-proof single or double beam crane.

  Mainly applicable to class B and C of type I and type II, places explosive dangerous with the temperature group ofT1-T4.

TECHNICAL DATA

Capacity : from 0.5 T to 32t

Lift height: 3m to 60 m

Working duty: A3, A4,A5

Speed:single speed

Voltage:380/220/400/440V 50/60HZ 3phase CE, TUV, GOST certificate, Top quality

• Explosive-proof grade

• There are two types of electrical equipments using in prescribed conditions will not cause an explosive.

•

  Burning environment

• Type1|: electric equipment in underground coal mine

  Type 2: all others explosive environment using electric equipment except underground coal mine.
