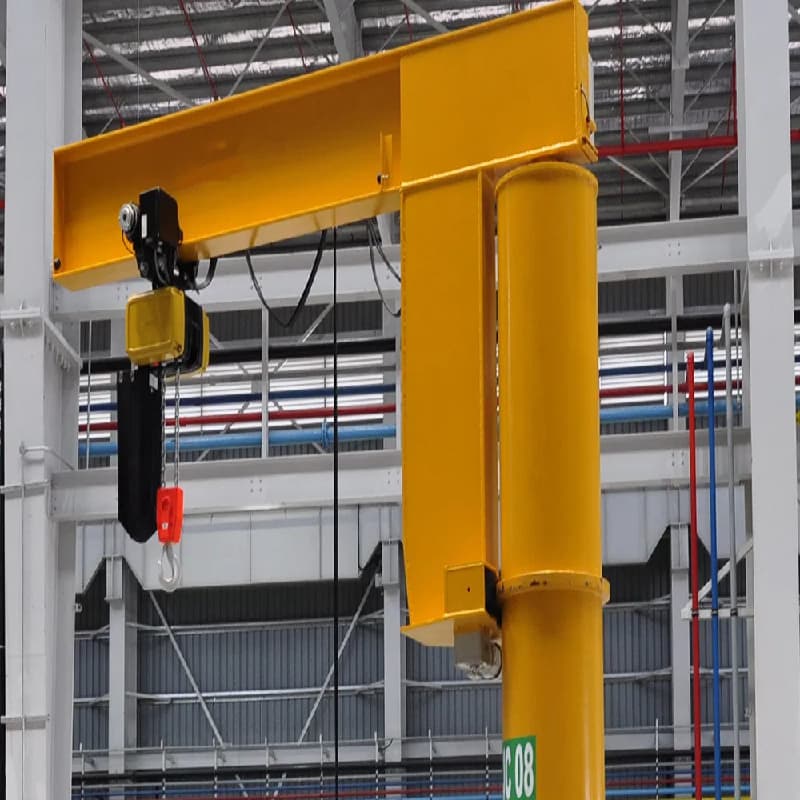

Malaysia Port Workshop 3 Ton Heavy Duty Jib Crane 6m Lift

GENERAL INTRODUCTION

Jib Crane is a kind of manipulator equipment with cable. It realizes the lifting function by connecting the auxiliary lifting equipment installed on the mechanical arm with the fixture by soft cable.

The equipment is used with various non-standard fixtures to realize workpiece handling, palletizing, loading and unloading. It reduces operator fatigue, maximizes productivity, and ensures worker safety. It has a wide range of applications, especially for modern production lines.

CORE TECHNOLOGY

Jib Crane consists of three parts: column and cantilever arm, auxiliary lifting equipment and non-standard fixture.Auxiliary lifting equipment includes Electric hoist, intelligent auxiliary elevator and pneumatic balance hoist:

1.Electric hoist uses a two-speed control mode; It has low cost, simple installation and operation, low maintenance cost, and is suitable for factory warehouses and other places.

2.Intelligent auxiliary elevator is composed of servo drive, servo motor, reducer, etc., and is controlled by a microprocessor, which can get the working direction of the power from the operator and generate the power toward upward and downward.Within the rated range, the workpiece can be moved at any variable speed to achieve efficient handling. It has easy operation, high precision, intelligent, controllable speed and safe and reliable.

3.Pneumatic balance hoist has the whole suspension function in the free stroke, which can realize the accurate positioning of the workpiece load shifting assembly and easy operation.

PARTS AND STRUCTURE

1.Column

2.Cantilever arm

3.Auxiliary lifting hoist

4.Handle

5.Tooling Structure

MODELS FOR REFERENCE

1.Electric hoist

2.Intelligent  auxiliary elevator

3.Pneumatic balance hoist


This is just for reference, if you need other customized feature, please contact us.
