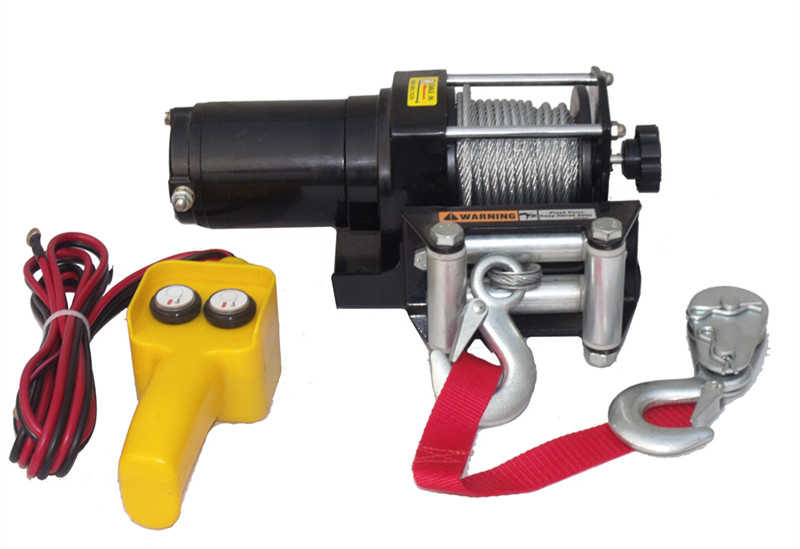

Compact Design Utitlity Winch 2000lbs

Product Description

The ultimate performance Heavy duty  winch for  heavy duty trucks or tractors . Fast speed & high torque  sealed series wound motor,with all steel gears driventrains sealed. Two Flat winch tie bar can laser etched logo on it . Pre-installed power control box withIP 68 solenoid . Big T-shape clutch bar can be laser etched logo and make clutch  "IN" or " OUT " easily .Extremely pulling for big trucks recovery.

15000LBS Features and Specifications :
PN :                             XM-15000SP-SA
Performance:               DC  12 V  or 24 V
Single line rated pull:  15,000lbs ( 6795kg)
Motor:                         6.8hp/5.1kw series -wound , fast speed with  high quality carbon brush sets
Braking action:           Automatic locking with motor
Clutch:                        Rotating ring gear ,stainless T-clutch handle
Gear train :                 3 -stage planetary  ,all metal ,smooth weld planetary plate
Gear ratio:                  370: 1
Remote Switch:         11ft ,wire remote control with black handbar ,
                                  wireless remote control (optinal )
Battery:                      Recommended:650CCA minimum for winching
Battery Leads:            2 Gauge 72"(1.83m)
Fairlead:                      Aluminum Fairlead
Drum:                         2.5"/8.8"(63.5mm x 224mm)
Synthetic rope :         10mm x 25
Weight:                      29.2kg
Overall dimension:     22.9" x 6.7" x 7.2" (582mm x 170mm x 182mm)
Mounting bolt pattern:  10" x 4.5" (254mm x 114.3mm)
Line Speed And Amp Draw ( First Layer )

Line Pull And Cable Capacity

Optional accessories :

Winch gloves ,winch cover , snatch block ,tow hook , ...ect .

OEM is always available!
