1 Ton Portable Gantry Crane with Locking Wheels Telescoping Secure Lifting
$850.00 1 set
Qingdao Shanghai
L/C T/T
New
MG
CE, ISO9001
YAMAR
General manufacturing,Metal production industry,Renewable energy industry
Product Description

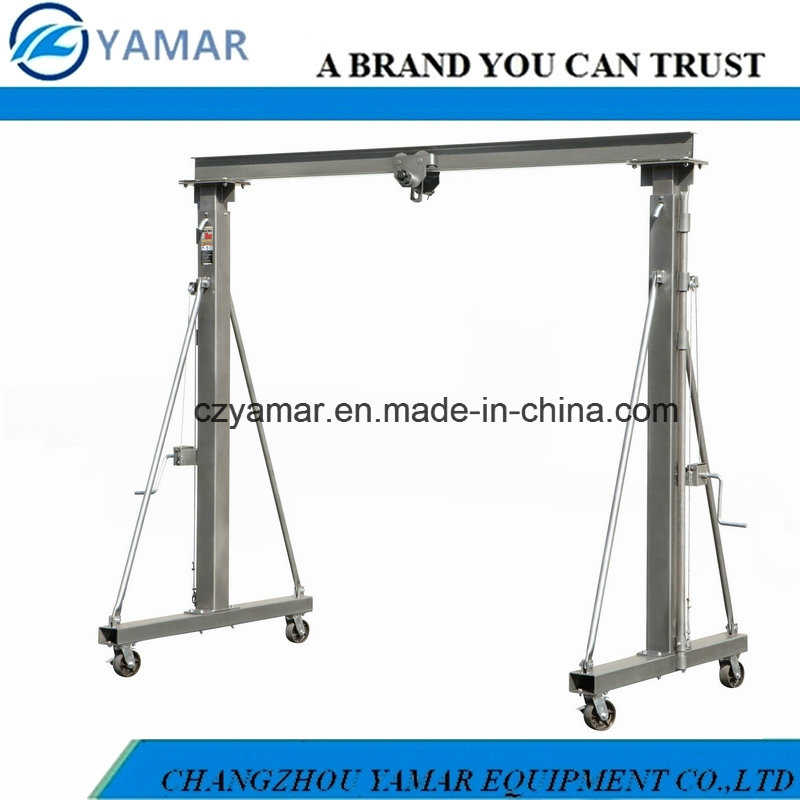

This all steel 1 ton capacity gantry crane adjusts from 99-1/2 in. to 148 in. high to provide a sturdy overhead lift point to lift car engines, heavy machinery or equipment easily. An easy crank handle allows for easy lifting and lowering while ball bearing casters let you move the lifted object hassle-free. This gantry crane is for use with a trolley hoist.

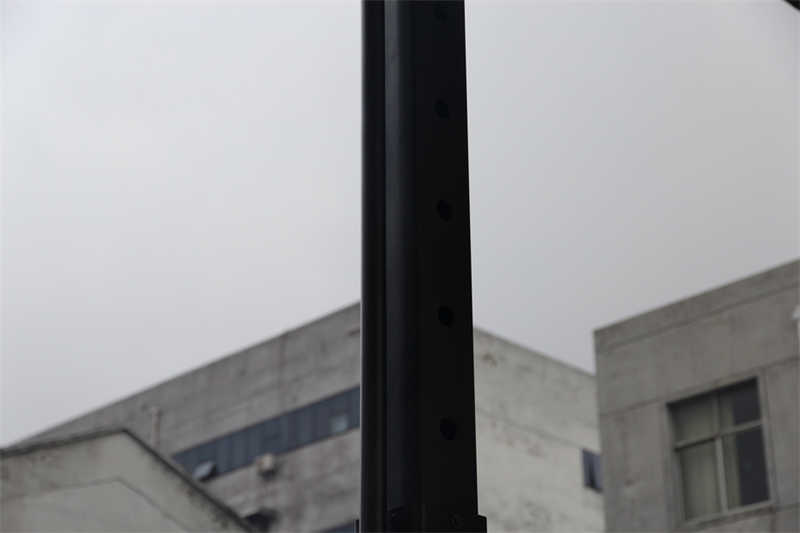

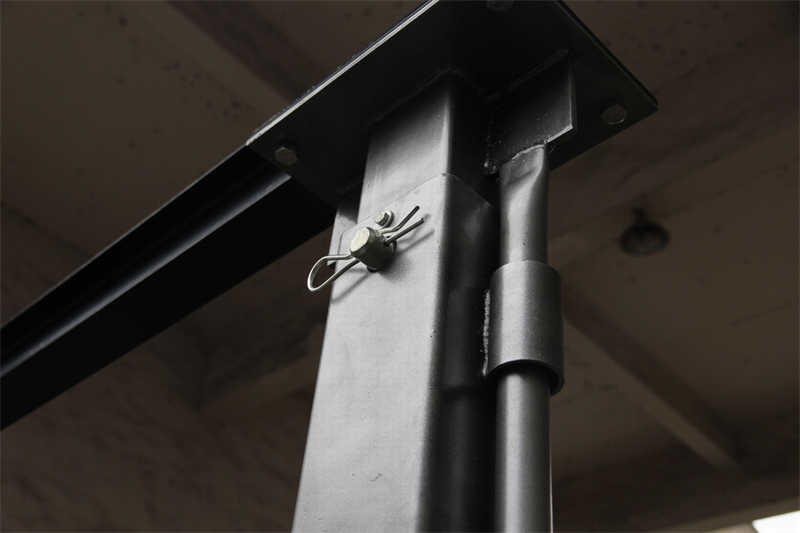

·Adjustable I-beam with nine positive stops
·Easy crank handle raising and lowering
·94 in. distance between posts
·5 in. ball bearing casters, two locking casters
·All steel construction
·An additional lift-gate charge may apply
Specifications:
| Load Rating | 1 Ton |
| Minimum Overall Height | 104-1/2" |
| Maximum Overall Height | 153-1/3" |
| Oveall Width | 128-1/2" |
| Minimum Vertical Clearance(Under I-Beam) | 99-13/16" |
| Maximum Vertical Clearance(Under I-Beam) | 148-5/8" |
| Clearance Between Posts | 94-1/2" |
| I-Beam | 3"x4-3/4"(WxH) |
| Meterial | Steel |
| Caster Size | 5" |
| Shipping Weight | 611lbs. |
