Steel Single Beam Gantry Crane – High Load Capacity & Stability

Product Description

top quality high technique heavy duty remote control truss type double girder
electric Rail traveling gantry crane

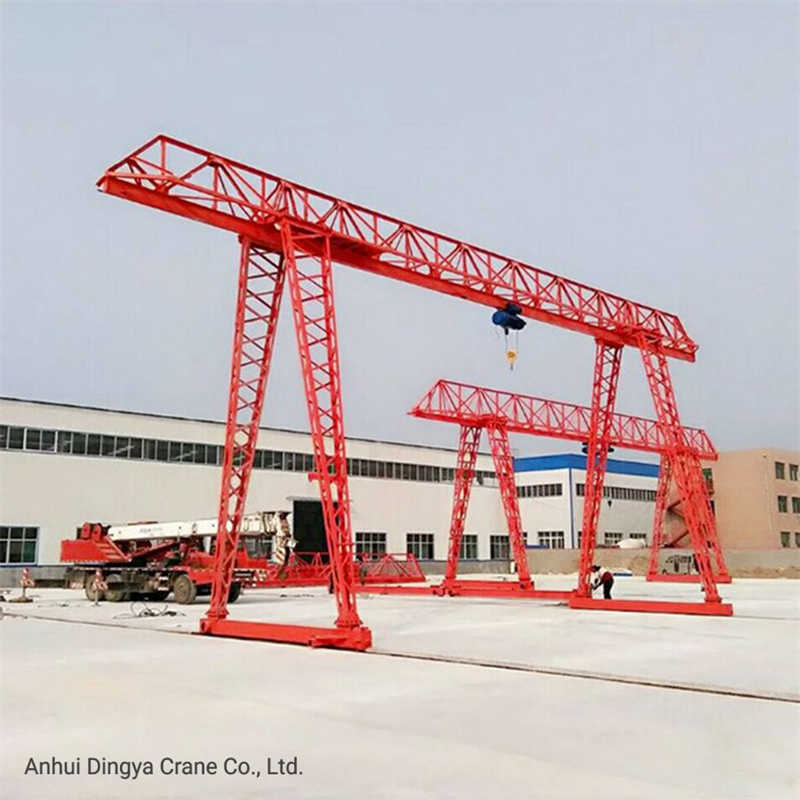

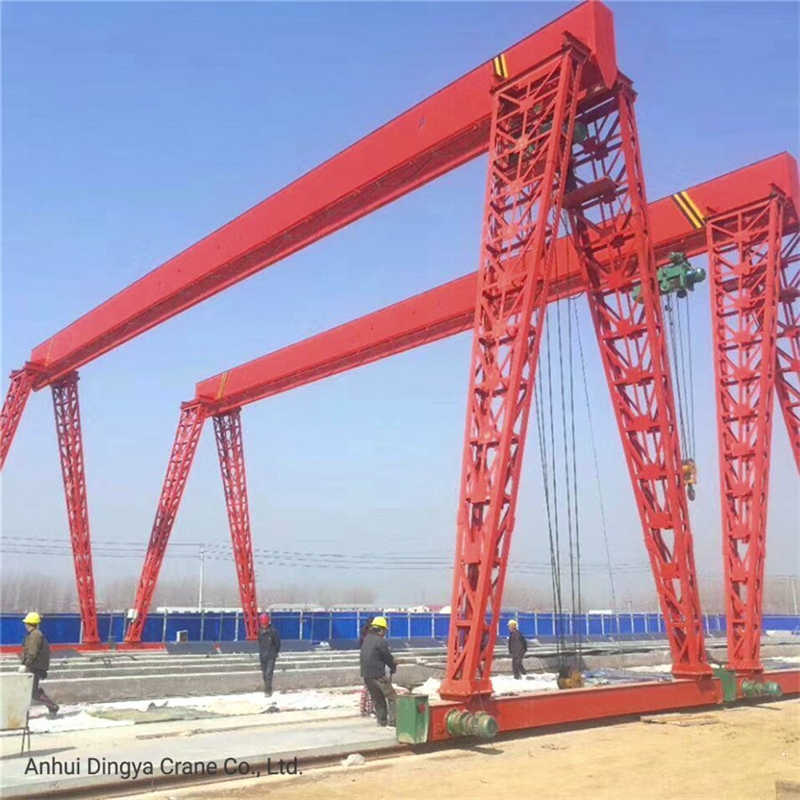

MG Type truss gantry crane is lifting equipment that runs on rails. It mainly consists of a mast (main beam, outriggers, lower beams, etc.), a hoisting mechanism, an operating mechanism and an electric control part. The electric hoist is used as the lifting mechanism runs along the lower flange of the I-beam of the main beam when working. The gantry structure is divided into two types: box-shaped and truss. The box-shaped technology is good and easy to manufacture; the truss has light weight and strong wind resistance. The whole machine has the characteristics of light weight, simple structure, convenient installation and maintenance, etc. It is suitable for outdoor places such as factories and mines, freight yards and warehouses within the range of small and medium lifting weights for general loading and unloading.

Product Parameters

Composition of truss gantry crane

Truss gantry crane is mainly composed of truss girder, legs, lower cross beams and other components, structure components using shaft connecting, easy disassembly and transport.

The whole gantry crane adopts single girder, trolley part using hoist or electric hoist, trolley across the upper part of the main beam, hoisting mechanism lifting rope from both sides of the main beam, which can lift shape large object. All mechanisms operating in the driver's cabin and all set up with rain cover.

Features of truss gantry crane

Generally, the truss gantry crane has the features such as main structure with light weight, small wheel pressure and reliable performance, evolved by Russian gantry crane. Main specification of the truss gantry crane includes lifting capacity, lifting height, span, mechanism operating speed, working class, truss type gantry crane total weight and wheel load. And the detailed features of the truss crane are as follow:

Lifting capacity of truss gantry crane

The lifting capacity of the russ gantry crane referes to the maximum allowable lifting weight during crane normal work. Commonly has 5ton to 100ton.

Lifting height

The lifting height of the truss gantry crane referes to the distance between spreader upper limit position and lower limit position.

Span of truss gantry crane

The span of truss gantry crane is the distance between the wheel vertical centerline at both sides of the crane.

Truss gantry crane each mechanism operating speed

• Lifting speed: it is the extract device full loaded lifting speed when lifting mechanism motor at rated speed.

• Traveling speed: it is the crane traveling speed when crane traveling mechanism motor at rated speed.

• Trolley traveling speed: it trolley traveling speed when the trolley traveling mechanism motor at rated speed.

Company Profile

FAQ

Q1: What are the differences between the QD type and the LH type bridge crane?
A: The QD crane can lift up to 450 tons using a winch trolley for precise lifting in harsh environments.
Q2: Can you provide timely technical support and spare parts if the crane malfunctions?
A: We offer online technical support at all times and can send our engineers to your factory when needed. During the warranty period, we provide spare parts free of charge, and after the warranty expires, we charge based on cost.
Q3: Are your products customizable?
A: Yes, all our products are customized to suit different working conditions and detailed requirements. To provide you with an accurate quote, please share details such as lift capacity, span, lift height, power source, and any other specific requirements.
Q4: What information should I provide when making an inquiry?
A: Thank you for your question. The more information you provide, the better we can tailor a solution for you.
Q5:What information should I provide when making an inquiry?
A:Please share details such as Lifting capacity, lifting height and speed, working environment (such as indoor, outdoor, high temperature or corrosive environment, etc.) and any other relevant information for a more precise response.
Q6:Can you provide timely technical support and spare parts if the crane malfunctions?
A:We offer online technical support at all times and can send our engineers to your factory when needed. During the warranty period, we provide spare parts free of charge, and after the warranty expires, we charge based on cost.

Please share details such as Lifting capacity, lifting height and speed, working environment (such as indoor, outdoor, high temperature or corrosive environment, etc.) and any other relevant information for a more precise response.
