1000kg Freestanding Jib Crane Height 5m Span 3.5m for Machining
$3600.00 1 set
Qingdao Shanghai
L/C T/T
New
BZ
CE, ISO9001:2000
Yuantai
General manufacturing,Automobile industry,Military industry

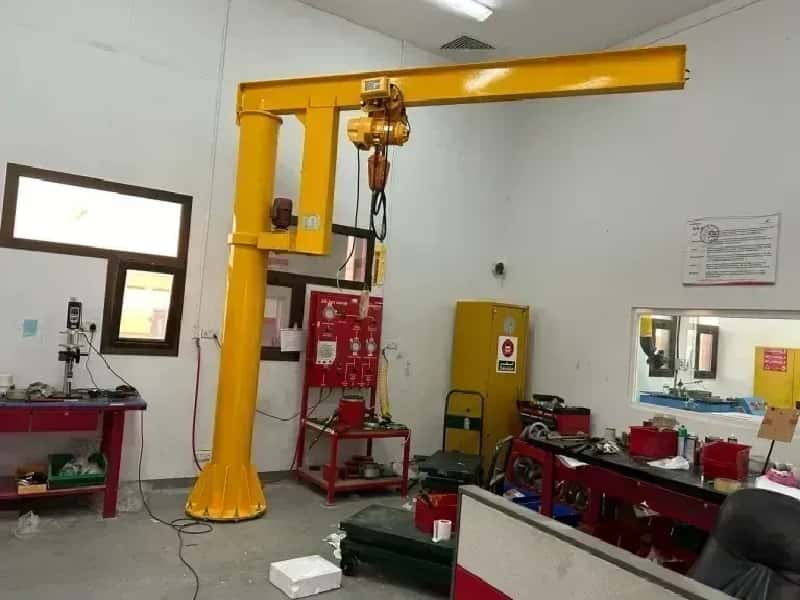

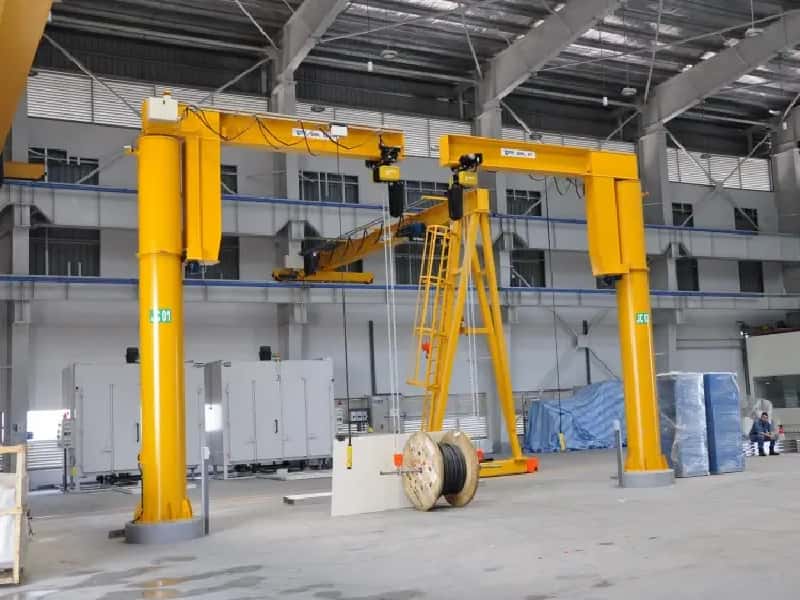

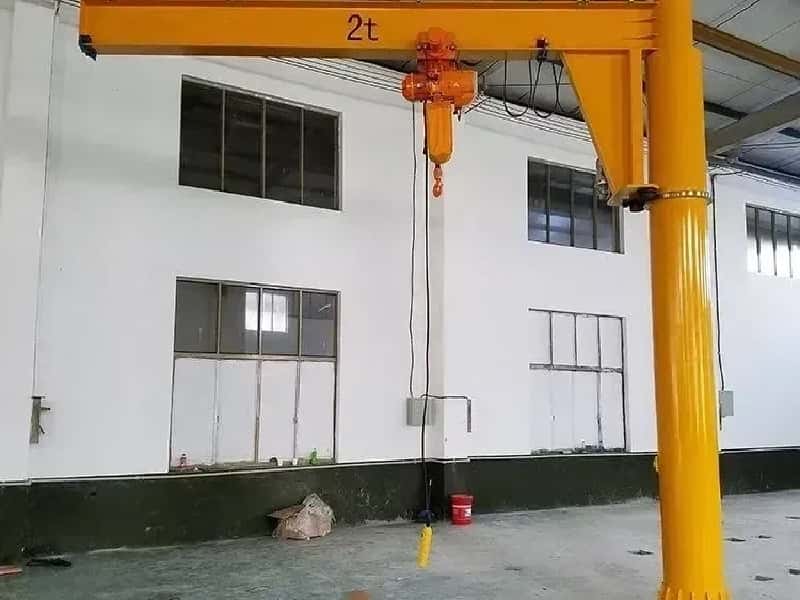

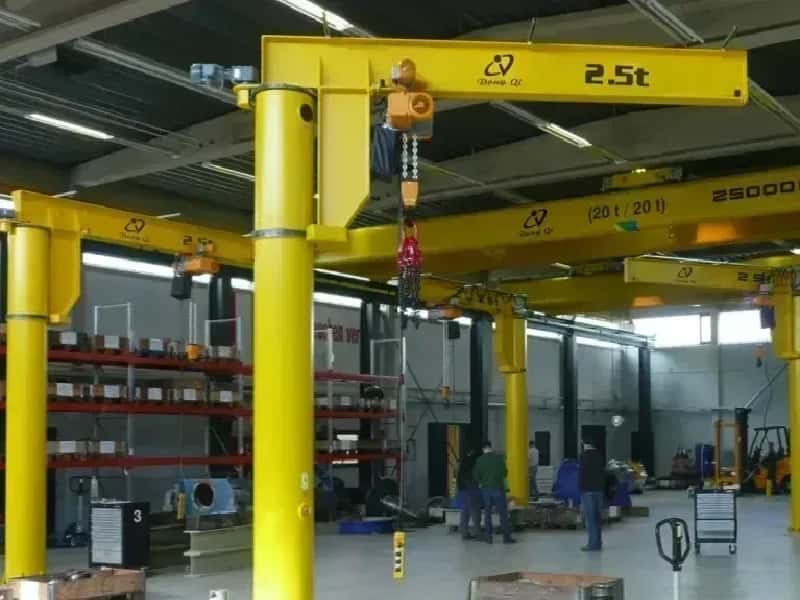

Pillar mounted jib crane is a kind of small and medium-sized lifting equipment with the recent development.It has unique structure, and it is safe and reliable with the advantage of high efficiency and energy saving, timesaving, flexible and so on. And it can be operated freely in 3D space. And it can show its superiority when it is working in the short-range or intensive lifting occasions. Widely used in workshop, warehouse, dock and other fixed places.
Environmental conditions:
The power of the crane is three-phase AC, rated frequency of 50HZ, rated voltage of 380V.
The altitude of the crane installation site is less than 2000m.
Inflammable, explosive and corrosive gases are forbidden in the installation site of the crane.
The crane is not allowed to lift the molten metal, toxic and inflammable and explosive materials.
Features
Compact Design
The advanced design idea gives the crane light structure and excellent performance, at the same time narrows the hook operation distance to the maximum, and improves the space utilization rate effectively. So our high quality products will be your best choice.
Smooth, Fast Loading
The standard configuration of the crane are the trolley and crane both having stepless frequency conversion control system, with features of braked stably, accurate location, and reliable performance, which make traveling steady, positioning quick, solving the problem of swing of goods.
Safer, Reliable, Using Free Maintenance Design
The crane used the best technology in the whole process shows its superiority, especially in the frequent operations. The perfect braking system improves safety and reliability a lot, which can be adjusted by itself with dustproof design, and it can be used more than 1 million times. Hardening and polishing the tooth surface will make sure the crane operate without trouble.
Excellent Performance
As an important logistics equipment, if the crane is out of order, it will cause great damage. So our products always having high quality will be your best choice.
Jib Crane Specification
The jib crane parameters are standard for reference. Tailor-made jib cranes are available.
| Lifting capacity | ton | 0.5 | 1 | 2 | 3 | 5 | ||||||||
| Lifting height(h) | m | 5 | 5.5 | 6 | 5 | 5.5 | 6 | 4 | 4.5 | 5 | 4.5 | 5 | 4.5 | 5 |
| Rotating radius R2 | m | 4 | 4.5 | 5 | 4 | 4.5 | 5 | 4 | 4.5 | 5 | 5 | 5.5 | 5 | 5.5 |
| Lifting speed | m/min | 8 / 0.8 | ||||||||||||
| Rotating speed | r/min | 0.7 | 0.5～ 1 | |||||||||||
| Travelling speed | m/min | 20 | ||||||||||||
| Rotating angle | ° | 180°, 270°, 360°, any angle | ||||||||||||
| Max.height H | m | 5.93 | 6.43 | 6.93 | 5.987 | 6.487 | 6.987 | 5.28 | 6.78 | 6.28 | 6.254 | 6.754 | 6.522 | 7.022 |
| Max.length L | m | 4.59 | 5.09 | 5.59 | 4.61 | 5.11 | 5.61 | 4.626 | 5.126 | 5.626 | 6.32 | 6.82 | 5.94 | 6.44 |
| Body weight | kg | 1733 | 1933 | 2028 | 1860 | 1960 | 2229 | 2478 | 2613 | 2748 | 3577 | 3742 | 4224 | 4430 |
Why Choose Yuantai Crane?
Give you multiple returns
Yuantai's crane products have currently served more than 150 countries around the world, and have created wealth for customers that is several times the price of the crane machine, and it is still going on.
Professional, worry-free and time-saving
Professional and customized crane solutions can better match customers' working conditions. High-quality crane products make customers more assured and worry-free when use.
Product life cycle service
Our services run through all aspects of product design, production, installation and spare parts support. Taking customers as the center and taking high-quality products as the core carrier, realize the service concept of customers buying with confidence and using them with confidence.
