0.5T Fixed Electric Hoist Hook Suspension for Singapore Port
$369.00 1 set
Qingdao Shanghai
L/C T/T
New
HHBB
CE, ISO9001:2000
Yuantai
General manufacturing,Metal production industry,Renewable energy industry,Automobile industry

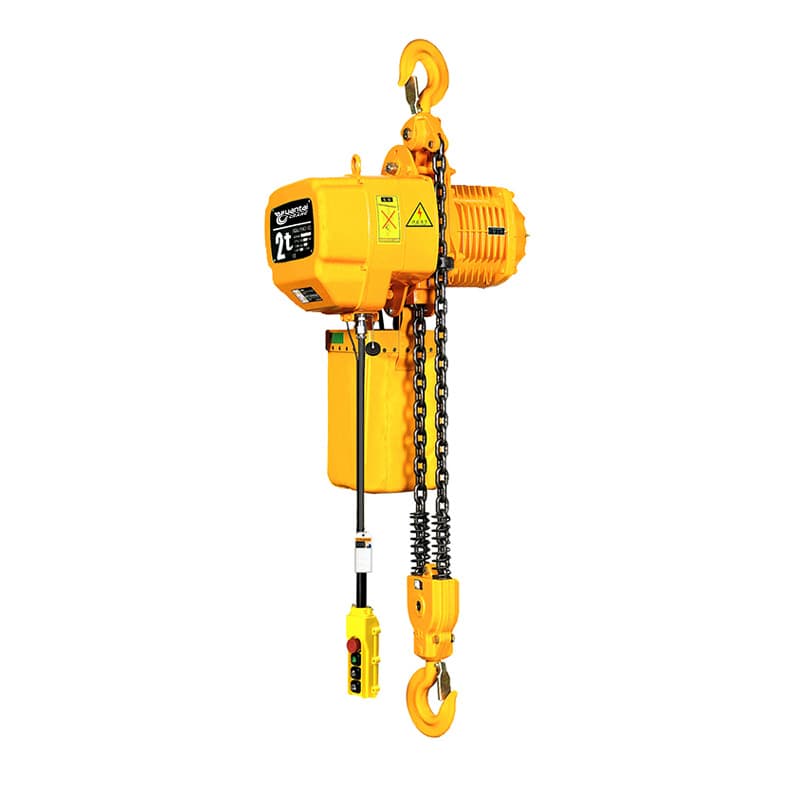

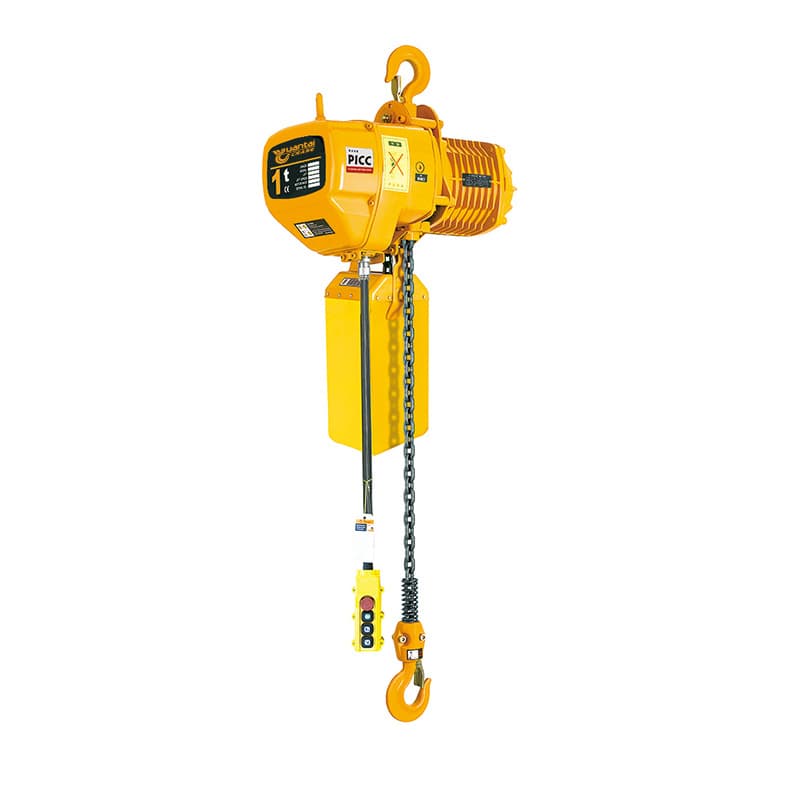

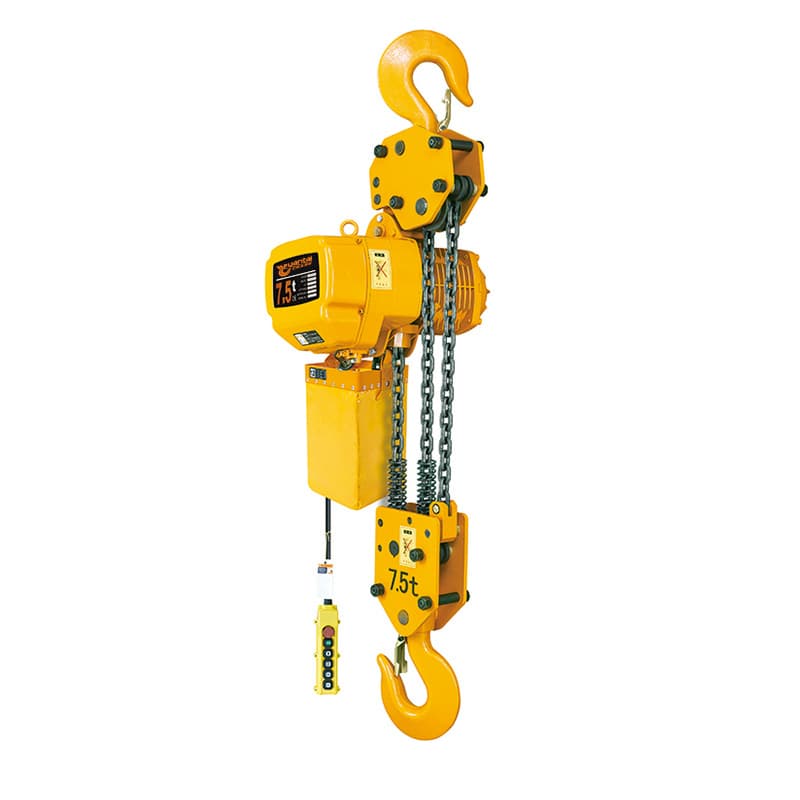

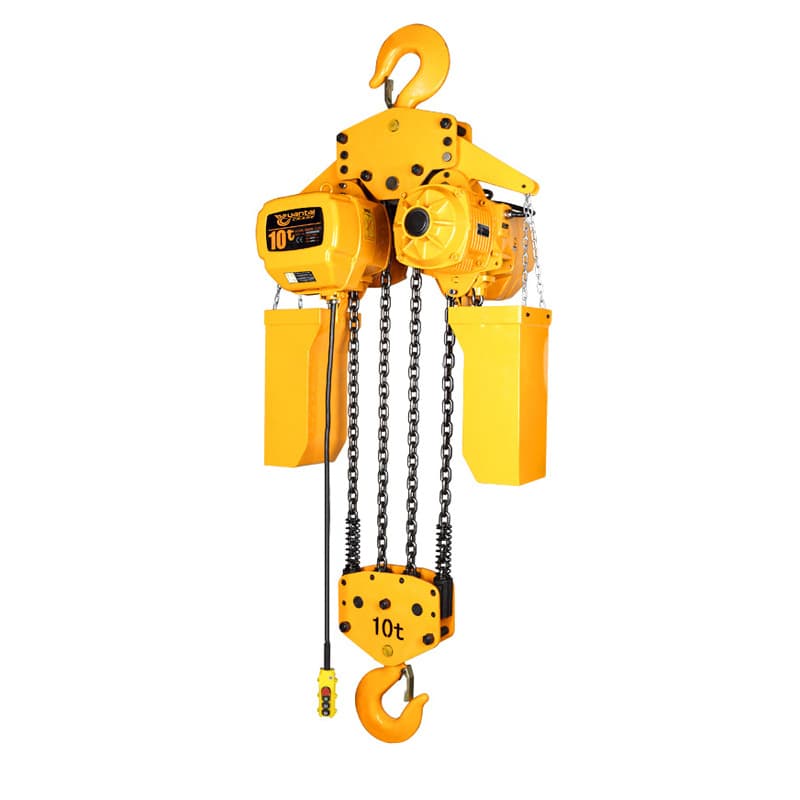

A Hook Type Chain Hoist is a compact and versatile lifting device designed for lifting, lowering, positioning, and transporting loads in industrial environments. Unlike trolley-mounted chain hoists that travel on beams, a Hook Type Chain Hoist is suspended directly from a fixed support point using a top hook, making installation simple and flexible. Yuantai Crane's Hook Type Chain Hoist is engineered for reliable performance, safety, and long service life. It combines a durable electric motor, high-strength alloy steel load chain, precision gearbox, and advanced safety protection systems into a compact lifting solution. The hoist is suitable for workshops, warehouses, assembly plants, maintenance facilities, machinery installation projects, manufacturing lines, and construction sites.
Technical Parameters
| Type | Capacity(ton) | Lifting Height(m) | Lifting Speed(m/min) | Lifting motor | ||||
| Power(kw) | Rotation Speed(r/min) | Phases | Voltage(V) | Frequency | ||||
| HHBB0.5-01S | 0.5 | 3/9 | 7.2 | 1.1 | 1440 | 3 | 220-440 | 50/60 |
| HHBB01-01S | 1 | 3/9 | 6.8 | 1.5 | 1440 | 3 | 220-440 | 50/60 |
| HHBB01-02S | 1 | 3/9 | 3.6 | 1.1 | 1440 | 3 | 220-440 | 50/60 |
| HHBB02-01S | 2 | 3/9 | 6.6 | 3 | 1440 | 3 | 220-440 | 50/60 |
| HHBB02-02S | 2 | 3/9 | 3.4 | 1.5 | 1440 | 3 | 220-440 | 50/60 |
| HHBB03-01S | 3 | 3/9 | 5.6 | 3 | 1440 | 3 | 220-440 | 50/60 |
| HHBB03-02S | 3 | 3/9 | 3.3 | 3 | 1440 | 3 | 220-440 | 50/60 |
| HHBB03-03S | 3 | 3/9 | 2.2 | 1.5 | 1440 | 3 | 220-440 | 50/60 |
| HHBB05-02S | 5 | 3/9 | 2.8 | 3 | 1440 | 3 | 220-440 | 50/60 |
Hook Type Chain Hoist Design and Features
1. Hook Type Chain Hoist Lightweight and Robust Housing
The housing of the Hook Type Chain Hoist is designed to be lightweight while maintaining excellent structural strength. The fully sealed enclosure protects internal components from dust and moisture. At the same time, the housing design provides efficient heat dissipation, helping the motor operate reliably during continuous lifting operations.
2. Reverse Phase Protection Device
The reverse phase protection device helps protect the hoist from electrical wiring errors during installation or maintenance. If the power supply is connected incorrectly, the control circuit will not operate, preventing the motor from running in the wrong direction. This feature reduces the risk of equipment damage, improves operational safety, and gives you greater confidence when connecting the power supply.
3. Limit Switches
The hoist is equipped with upper and lower limit switches that automatically stop lifting or lowering movements when the preset travel limit is reached. This prevents the chain from over-traveling and protects important components from excessive stress. The limit switch system helps reduce the risk of accidents, extends the service life of the hoist, and ensures safer operation during daily lifting tasks.
4. High-Strength Alloy Steel Load Chain
The load chain is manufactured from imported FEC/G80 high-strength heat-treated alloy steel. This premium chain material provides excellent wear resistance, tensile strength, and fatigue resistance, ensuring long-term reliability under heavy-duty working conditions.
5. Compact Structure
The compact body design allows installation in areas where space is limited. This makes the hoist particularly suitable for workshops and facilities with restricted headroom.
6. Smooth and Precise Lifting
Precision-machined gears and high-quality motors provide stable lifting performance. This enables accurate load positioning during production and maintenance operations.
Hook Type Chain Hoist vs Motorized Trolley Chain Hoist
| Feature | Hook Type Chain Hoist | Electric Chain Hoist with Motorized Trolley |
|---|---|---|
| Installation | Suspended from fixed hook point | MountComparisoned on powered trolley and beam |
| Horizontal Travel | No | Yes |
| Mobility | Fixed position | Moves along runway beam |
| Initial Cost | Lower | Higher |
| Installation Complexity | Simple | Moderate |
| Workspace Coverage | Single lifting area | Multiple workstations |
| Productivity | Good for occasional lifting | Excellent for frequent handling |
| Maintenance | Lower | Slightly higher |
| Best Application | Maintenance, repair, construction | Manufacturing, assembly, warehousing |
| Material Flow Efficiency | Limited | High |
FAQs about Hook Type Chain Hoist
1. What is a Hook Type Chain Hoist?
A Hook Type Chain Hoist is an electric lifting device suspended by a hook and designed for lifting and lowering loads using a high-strength alloy steel chain.
2. What capacities are available for Hook Type Chain Hoists?
Standard capacities range from 0.5 ton to 35 tons. Customized capacities are also available.
3. Can the Hook Type Chain Hoist be used outdoors?
Yes. Appropriate protection levels and customized configurations can be provided for outdoor applications.
4. What industries commonly use Hook Type Chain Hoists?
Manufacturing, warehousing, logistics, automotive production, machinery maintenance, steel fabrication, assembly operations, and construction projects.
5. What information should I provide for a quotation?
To recommend the most suitable Hook Type Chain Hoist, please provide:
Required lifting capacity
Lifting height
Power supply voltage
Working environment
Daily operating hours
