1T LD Type EOT Crane 21m Lift 25.5m Span for UAE Warehouse
$2900.00 1 set
Qingdao Shanghai
L/C T/T
New
LD
CE, ISO9001:2000
Yuantai
General manufacturing,Metal production industry,Automobile industry,Military industry
PRODUCT FEATURES
LD type electric single girder crane has the characteristics of reasonable structure and strong rigidity.
The whole machine is used with CD1 type, MD1 type electric hoist, which is a light and small lifting machine.
| Lifting Weight | 1t-20t |
| Span | 7.5-28.5m |
| Working Duty | A3-A4 |
| Working Environment | -25ºC ~ 40ºC |

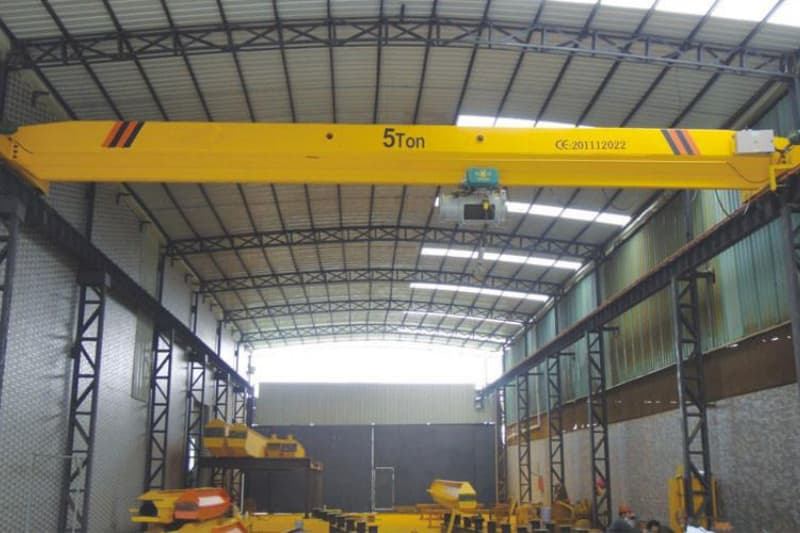

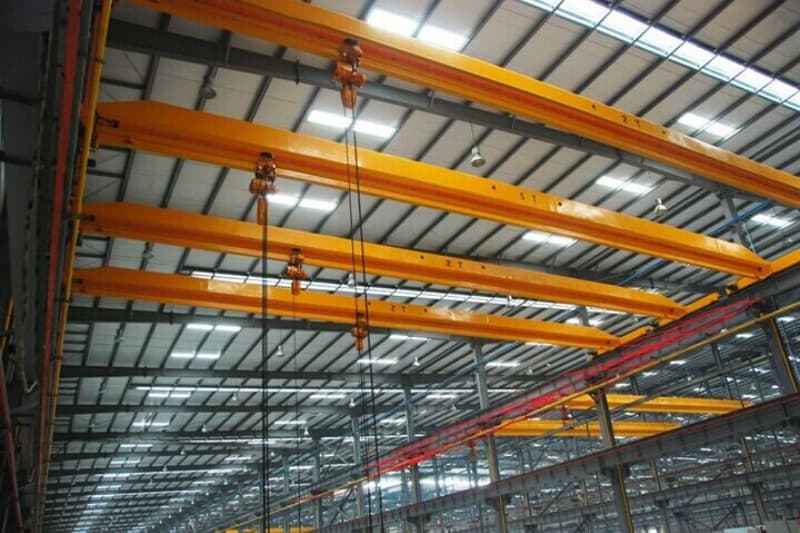

Detailed Photos
Product Parameters
| Crane Traveling Mechanism | Traveling Speed(m/min) | 20 | 30 | 45 | 60 | |
| Ratio | 58.95 | 39.42 | 26.51 | 19.44 | ||
| Motor | Type | Cone Squirrel-cage | Cone Squirrel-cage | |||
| Power(kw) | 0.8*2, 1.5*2, 2.2*2 | 1.5*2, 2.1*2 | ||||
| Rotary Speed(r/min) | 1380 | 1350 | ||||
| Hoist Lifting Mechanism and Traveling Mechanism | Electric Hoist Model | MD1 | CD1 | |||
| Lifting Speed(m/min) | 8/0.8, 7/0.7, 3.5/0.35 | 8, 7, 3.5 | ||||
| Span(m) | 7.5-22.5 or assigned | |||||
| Lifting Capacity(t) | 0.5-32 | |||||
| Lifting Height(m) | 6, 9, 12, 18, 24, 30 | |||||
| Traveling Speed(m/min) | 20, 30 | |||||
| Motor | Cone Squirrel-cage | |||||
| Work Duty | Intermediate Jc=25% | |||||
| Power Supply | 380V 50HZ 3P | |||||
| Wheel Diameter | 270, 400 | |||||
| Trail Width | 37-70 | |||||
