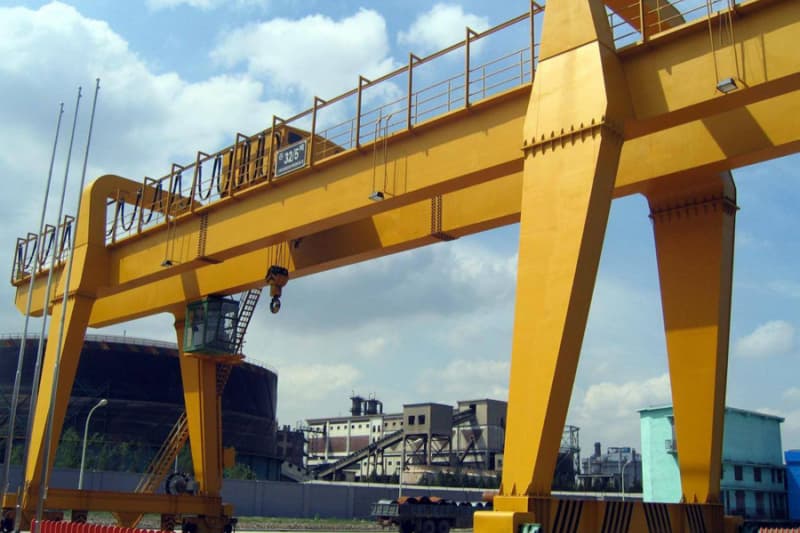

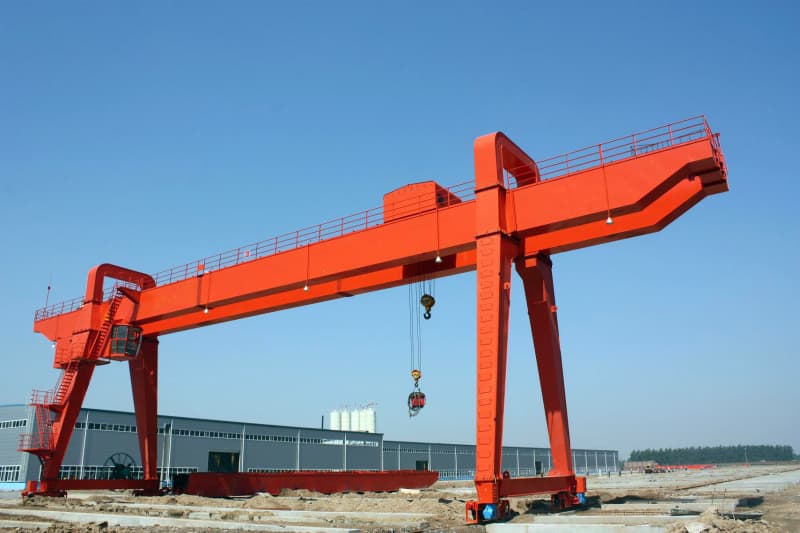

5t MG Double Girder Gantry Crane 6m Lift 18m Span for USA

MG Model Heavy Duty Double Girder Gantry Crane with CE Certificate

Mg Model Double Girder Gantry Crane with Heavy Duty
Advantage:
1). Compact design, optimal use of the size of work areas
2). Control the load easily and position the load exactly
3). Superior safety and reliability
4). Minimum& Easy maintenance
Safety:
Overload protection: Equipped self re-setting overload protector, the hoist motion is stopped if overloading occurs, but lowering is permitted, making the crane safe.
Overheating protection: Equipped with imbedded bi-metallic thermal switch (or thermistors) in the windings to protect against overheating
End stop: Energy-absorbing rubber buffers
Crane switch and travel end switch
Electrical braking is provided in all circumstances and the mechanical brake is used only as a holding and emergency brake;
Emergency switch can stop all movement when any dangerous happened;
Sub-assemblies characteristic are tested before assemly;
All cranes must be preassmebled and tested before leaving factory and offer the certification of test;
Design and construction rules;
All the standards which is required for the crane is the Chinese standard.
Painting: Primer and finishing paint
Color: According to your demand.

We could design and manufacture custom-built cranes according to customer specifications. When you order the cranes from us, please give us the detail of your requirements and your using situation, we will be the one to ensure what we offer is totally according to your requirement. And our components are designed with the idea of adjustment free and according to the lift time of the crane, so you can always rely on the functioning of the cranes.

Mobile double girder gantry crane 20 tonis mainly consisting of the skeleton structure, lifting and cross traveling
mechanism, long traveling mechanism, cabin and electrical control system. The trolley can move
horizontally on a pair of rails on the beam.
The beam can be box or trussed type in according to your working environment situation.
pressure is less than 125Pa, or more,trussed type gantry crane is always using in outdoor)
Cabin used for operating, with seats inside. Floor adopts insulation pads and toughened glass
for windows; extinguisher and fan are equipped. Other accessory equipment like air-condition, buzzer, interphone and etc. can be configured according to our client's request!
The length of cantilevers can be designed to meet the working demands

Customization:

Welcome to send us email or leave me message to tell me details demand so that I can sent you offer in shortest time:
1, the lifting weight (t):
2, the lifting height (m):
3, do you need cantilever.
4, span (m):
5, duty (A*):
6, power (voltage):
7, does the jib crane is needed on the gantry crane, right side or left side?
8, lifting speed and gantry travelling speed (m/min).
9, what material would be lifted? (Deciding the lift tool and gantry type)
