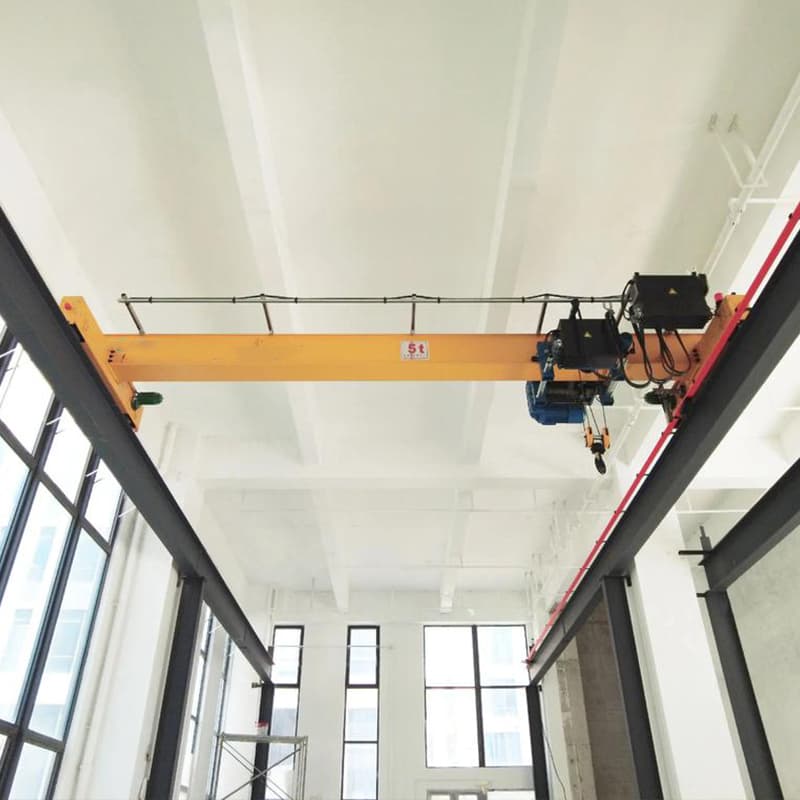

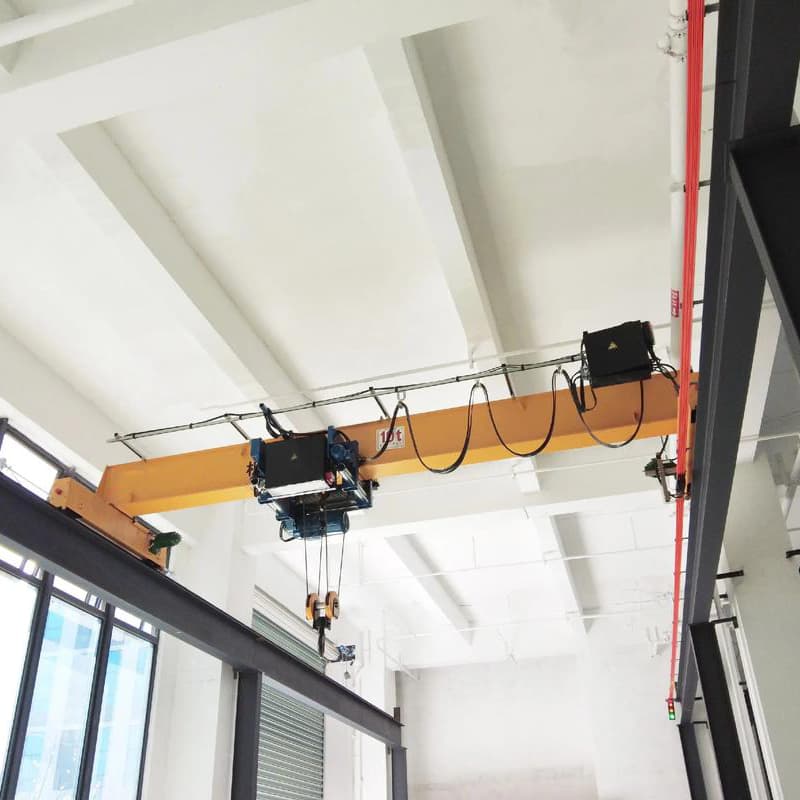

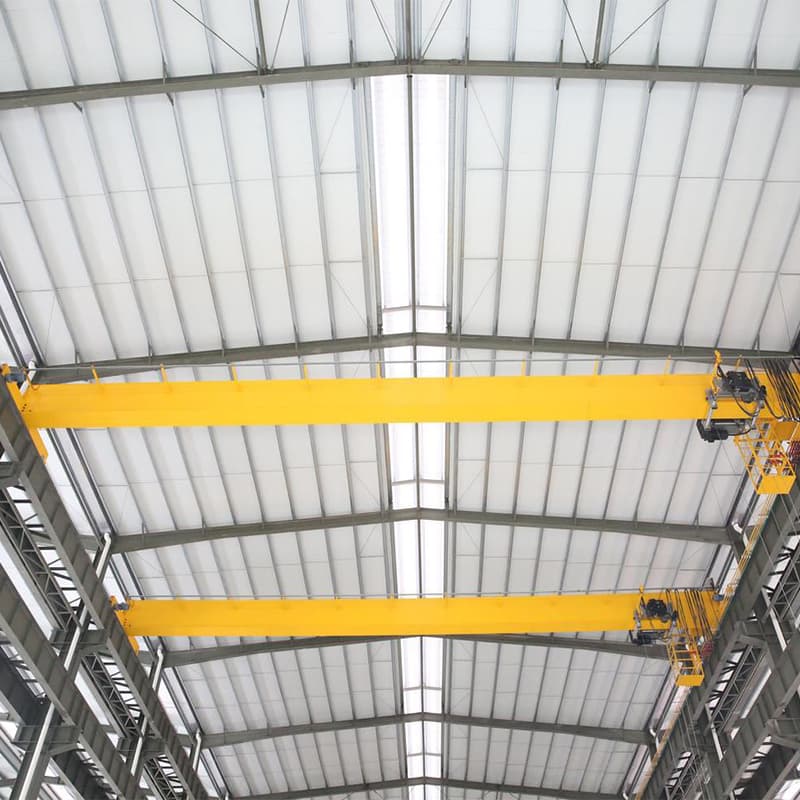

10 Ton LD Crane with Remote UK 30m Span Warehouse Logistics
$5000.00 1 set
Qingdao Shanghai
L/C T/T
New
LD
CE, ISO9001:2000
Yueda
General manufacturing
The technical table of this overhead crane:
Capacity (t) | 1, 2, 3, 5, 10(8) | 16, 20, 25, 30 | ||||||||
Span (m) | 7.5~31.5 | |||||||||
Crane travelling mechanism | Travelling speed (m/min) | 20 | 30 | 45 | 60 | 20 | 30 | 45 | 60 | |
Motor | Model | ZDY21-4 | ZDR100-4 | ZDY122-4 | ZDY123-4 | ZDRII2L1-4 | ||||
Power | 2x0.8kw | 2x1.5kw | 2x1.5kw | 2x2.2kw | 2x2.1kw | |||||
Turning speed (r/min) | 1380 | 1380 | ||||||||
Lifting mechanism (electric hoist) & Cross travelling mechanism | Hoist model | CD1/MD1 | CD1/MD1/HC/HM | |||||||
Lifting speed (m/min) | 8, 8/0.8; 7, 7/0.7 | 3.5, 3.5/0.35 | ||||||||
Lifting height (m) | 6, 9, 12, 18, 24, 30 | 9, 12, 18, 24, 30 | ||||||||
Travelling speed (m/min) | 10, 20, 30 | 10, 20, 30 | ||||||||
Motor | Cone Squirrel-cage | Cone Squirrel-cage | ||||||||
Duty Class | A3-A4 | |||||||||
Power source | 380V 50HZ 3 phase (or according to your standard) | |||||||||
Wheel diameter | φ270mm | φ370mm, φ400mm | ||||||||
Width of rail top | 37~70mm | 37~70mm | ||||||||
