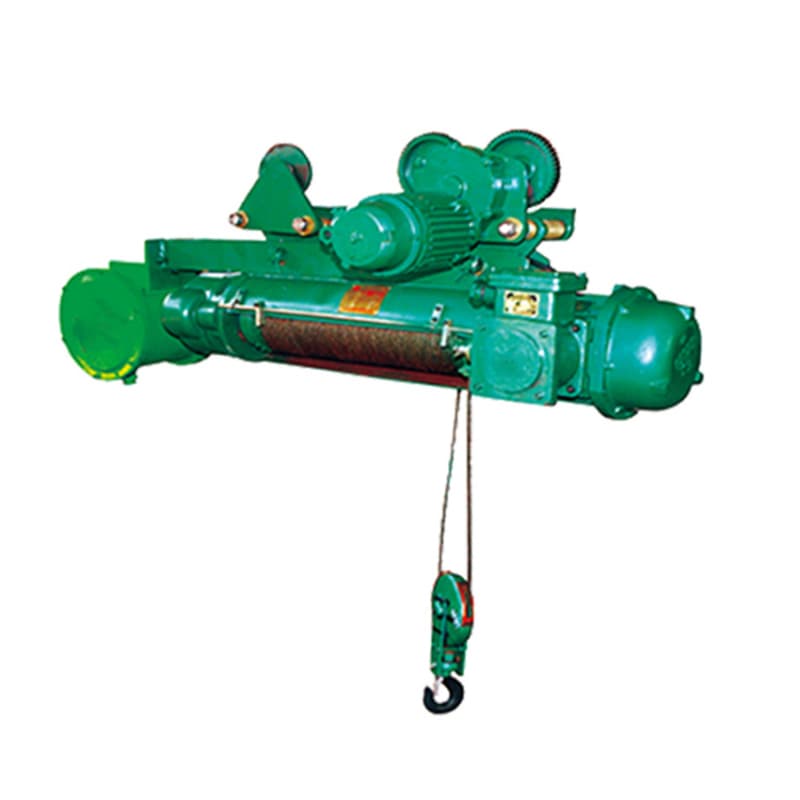

5T CD Reliable Hoist Argentina Construction Site 12m

Capacity (ton)

0.5, 1, 2, 3, 5

10, 16, 20

0.5, 1, 2, 3, 5

10, 16, 20

Travelling

mechanism

Travelling Speed (m/min)

10, 20, 30

10, 20, 30

Motor (kw)

1x0.4, 1x0.8

2x0.8, 4x0.8

1x0.4, 1x0.8

2x0.8, 4x0.8

Lifting

mechanism

Lifting Speed (m/min)

8

7, 3.5

8/0.8

7/0.7, 3.5/0.35

Lifting height (m)

6, 9, 12, 18, 24, 30

9, 12, 18, 24, 30

6, 9, 12, 18, 24, 30

9, 12, 18, 24, 30

Motor (kw)

0.8, 1.5, 3.0, 4.5, 7.5

13

0.8/0.2, 1.5/0.2

3.0/0.4, 4.5/0.4

7.5/0.8

13/1.5

Duty Class

M3

Power source

380V, 50HZ, 3 phase (or other standard)

Working temperature

-20~40℃

Branch of rope

2 ropes(0.5t~5t), 4 ropes(10t~20t)

Brake

Mounted on motors

Control model

Pendant pushbutton control or wireless remote control
