High-Performance Yz Foundry Ladle Crane for Smelting Operations
$60000.00 1 set
Qingdao Shanghai
L/C T/T
New
QDY
CE, ISO9001
Yueda
General manufacturing,Metal production industry
Product Description
Product Description
Casting overhead cranes-the main lifting and transport equipment in the steel smelting factory.
They are used for liquid metals, pouring, and mixing during the smelting and casting process.
YZS type adopted four-beam structures, has a bridge frame, main trolley, trolley, hook, crane operation, and electric parts.
The main trolley works on the main girder, and the auxiliary trolley is on the bridge frame.
The crane could work under harsh environments for example -25ºC~+60ºC, indoor hot laying, and dust. Suitable for steel smelting in workshop using.
Main Features
Capacity: 75/25t,100/32t,125/32t,140/40t,160/50t, etc.
Span is 10.5m-31.5m
Height 16-20m
working class: A7 or A8.
Ambient temperature normally up to 60º

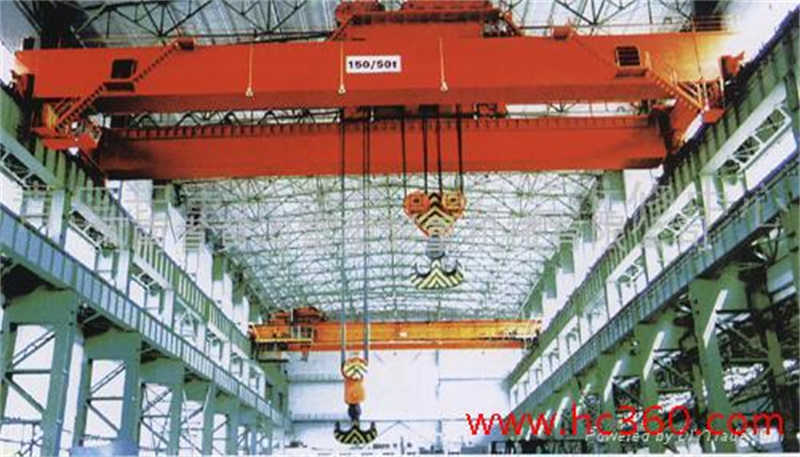

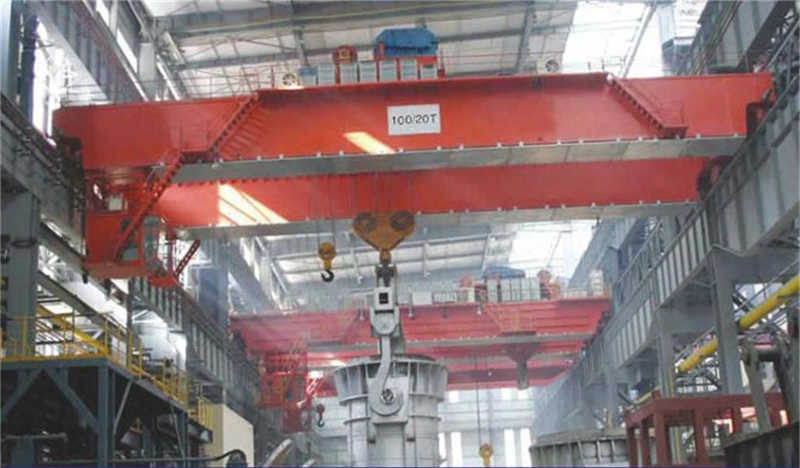

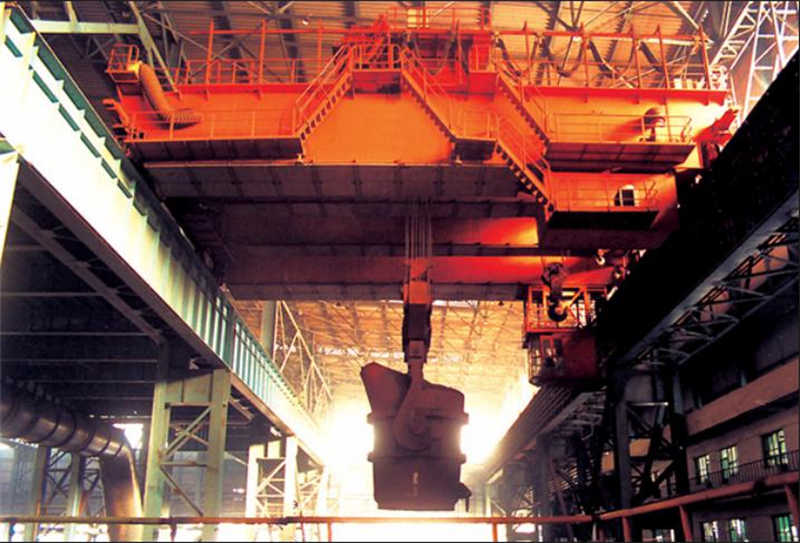

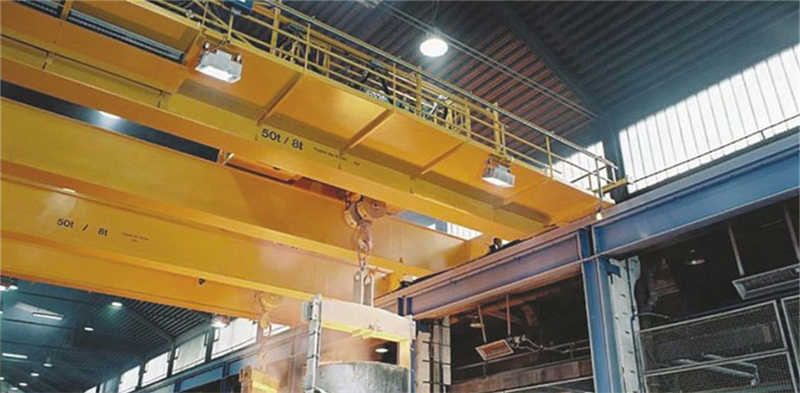

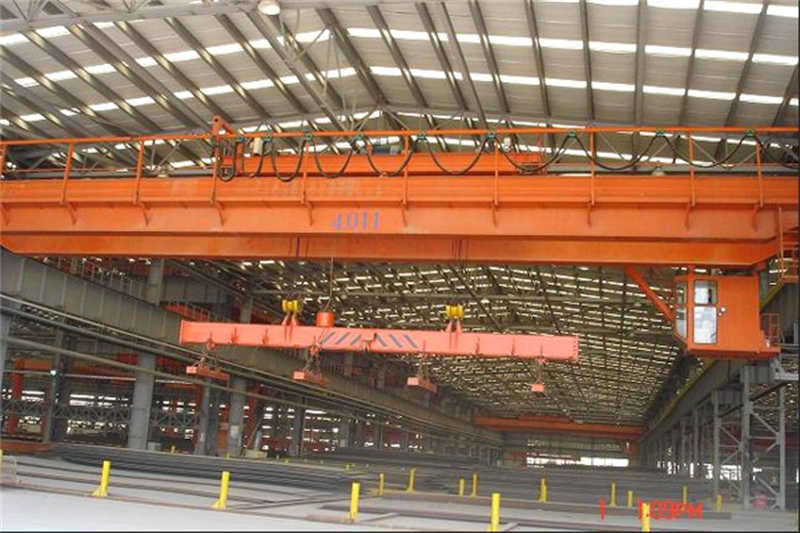

Detailed Photos
Product Parameters
Lifting Capacity | 125/32 | 140/32 | 160/32 | 180/50 | 200/50 | 225/65 | 240/80 | 280/80 | 320/80 |
Working Class | A7 | ||||||||
Span | 19 | 19 | 27 | 28.5 | 28 | 27 | 22 | 22 | 24.5 |
Lifting Height (Main Hook) | 24 | 22 | 25 | 27 | 26 | 32 | 25 | 29 | 28 |
Lifting Height (Auxiliary Hook) | 26 | 24 | 26 | 29 | 26 | 34 | 27 | 29 | 33 |
Speed (Main Hook) | 7.6 | 7.8 | 9.8 | 7.5 | 6 | 11 | 7 | 12 | 7.5 |
Speed (Auxiliary Hook) | 9.7 | 9.7 | 12 | 10 | 10 | 11 | 9.6 | 10 | 10 |
Speed (Main Trolley) | 38 | 36 | 43.5 | 40 | 41 | 41 | 35 | 40 | 29 |
Speed (Auxiliary Trolley) | 39 | 37.5 | 43.5 | 38 | 38 | 39.5 | 38 | 40 | 39 |
Speed (crane | 76 | 73 | 84 | 80 | 78 | 84 | 80 | 80 | 58 |
